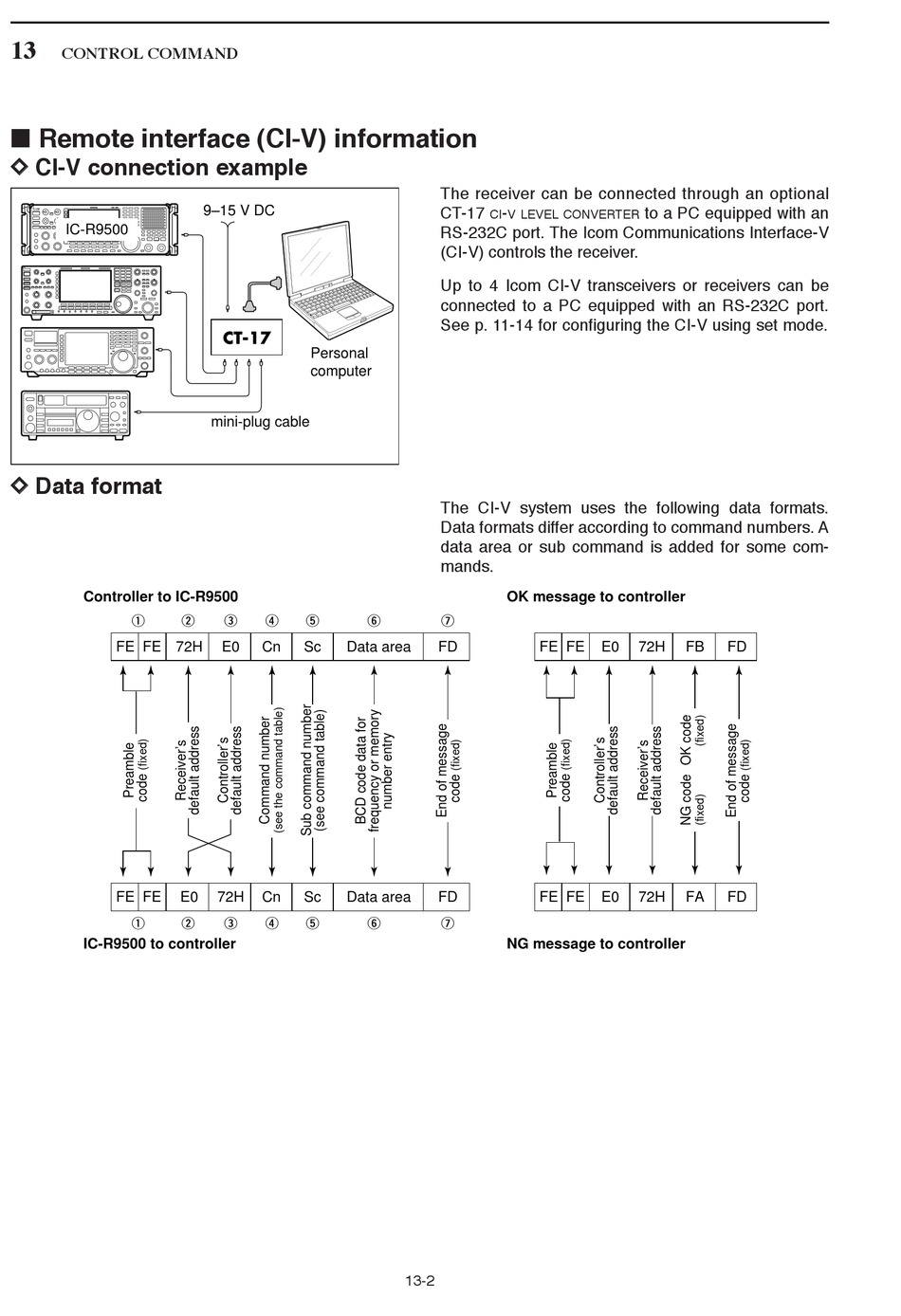

Remote Interface (Ci-V) Information; Section 13 Control Command ■ Remote Interface (Ci-V) Information; D Ci-V Connection Example; D Data Format - Icom IC-R9500 Instruction Manual

13
CONTROL COMMAND

■ Remote interface (CI-V) information

D D CI-V connection example
IC-R9500
D D Data format
Controller to IC-R9500
q
FE FE 72H
FE FE
q
IC-R9500 to controller
9–15 V DC
Personal
computer
mini-plug cable
w e r t
E0 Cn Sc
E0 72H Cn Sc
w e r t
The receiver can be connected through an optional
CT-17 -
CI V LEVEL CONVERTER
RS-232C port. The Icom Communications Interface-V
(CI-V) controls the receiver.
Up to 4 Icom CI-V transceivers or receivers can be
connected to a PC equipped with an RS-232C port.
See p. 11-14 for configuring the CI-V using set mode.
The CI-V system uses the following data formats.
Data formats differ according to command numbers. A
data area or sub command is added for some com-
mands.
OK message to controller
y u
Data area FD
Data area FD
y u
NG message to controller
13-2
to a PC equipped with an
FE FE E0 72H FB
FE FE E0 72H FA
FD
FD
