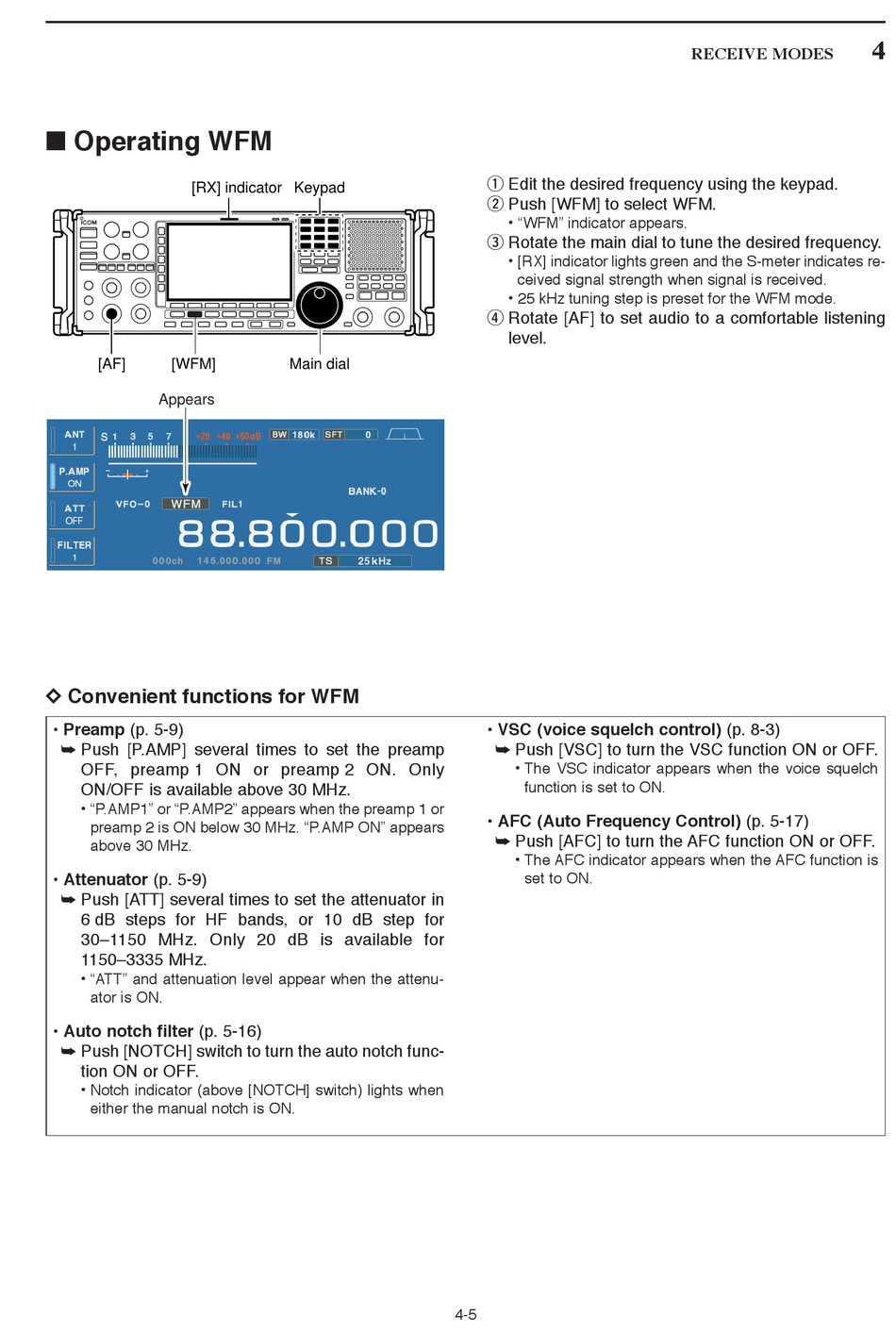

■ Operating WFM

[RX] indicator
[AF] [WFM]
Appears
D D Convenient functions for WFM
• Preamp (p. 5-9)
➥ Push [P.AMP] several times to set the preamp
OFF, preamp 1 ON or preamp 2 ON. Only
ON/OFF is available above 30 MHz.
• "P.AMP1" or "P.AMP2" appears when the preamp 1 or
preamp 2 is ON below 30 MHz. "P.AMP ON" appears
above 30 MHz.
• Attenuator (p. 5-9)
➥ Push [ATT] several times to set the attenuator in
6 dB steps for HF bands, or 10 dB step for
30–1150 MHz. Only 20 dB is available for
1150–3335 MHz.
• "ATT" and attenuation level appear when the attenu-
ator is ON.
• Auto notch filter (p. 5-16)
➥ Push [NOTCH] switch to turn the auto notch func-
tion ON or OFF.
• Notch indicator (above [NOTCH] switch) lights when
either the manual notch is ON.
Keypad
Main dial
4-5
q Edit the desired frequency using the keypad.
w Push [WFM] to select WFM.
• "WFM" indicator appears.
e Rotate the main dial to tune the desired frequency.
• [RX] indicator lights green and the S-meter indicates re-
ceived signal strength when signal is received.
• 25 kHz tuning step is preset for the WFM mode.
r Rotate [AF] to set audio to a comfortable listening
level.
• VSC (voice squelch control) (p. 8-3)
➥ Push [VSC] to turn the VSC function ON or OFF.
• The VSC indicator appears when the voice squelch
function is set to ON.
• AFC (Auto Frequency Control) (p. 5-17)
➥ Push [AFC] to turn the AFC function ON or OFF.
• The AFC indicator appears when the AFC function is
set to ON.
RECEIVE MODES
4
