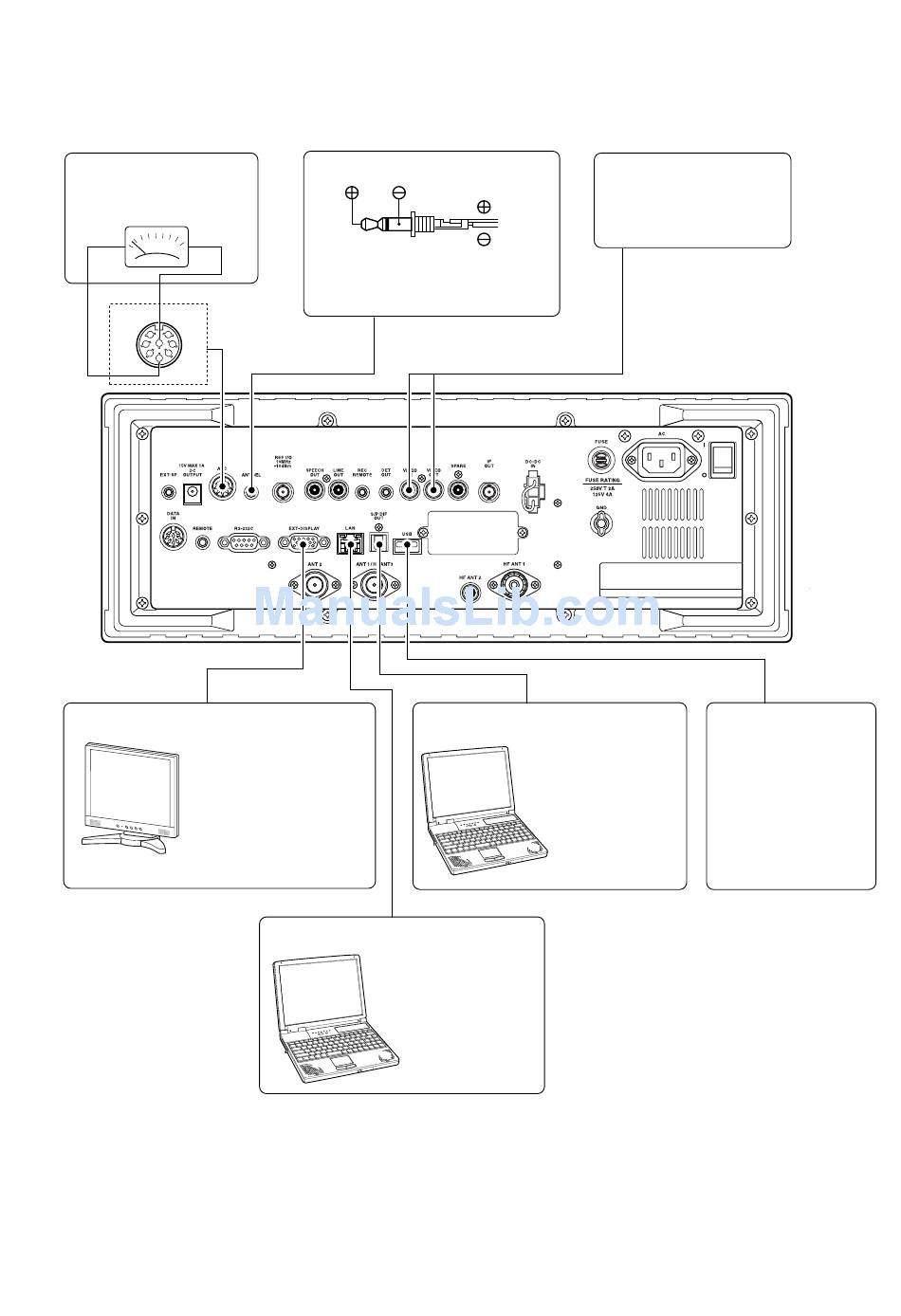

D D Rear panel—2
[METER]
Connects an external
meter, etc.
Meter
MOUT
7 6
8
3 1
5 4
2
GND
External Display
Connects a PC-style
monitor display (at least
800×600 resolution).
Video output signal can
be turned ON and OFF
in set mode (p. 11-9)
ANT SEL
When the [ANT] switch is ON:
13.8 V DC output 100 mA max.
[ACC]
Ethernet connector (p. 15-6)
Connects a PC
via a LAN for CPU
firmware update.
INSTALLATION AND CONNECTIONS
[S/P DIF IN/OUT]
Connects a PC for
audio signal data
input/output.
48 kHz, 16-bit
output
2-7
Video equipment
Connects a video re-
corder, etc.
[USB]
Connects a USB
equipment such as
memory, hub or
keyboard.
