Mainboard Overview - Bottom (Key Parts)

1
2
3
5
6
7
4
8
Mainboard Overview - Bottom (Key Parts) 1 - 9
Introduction

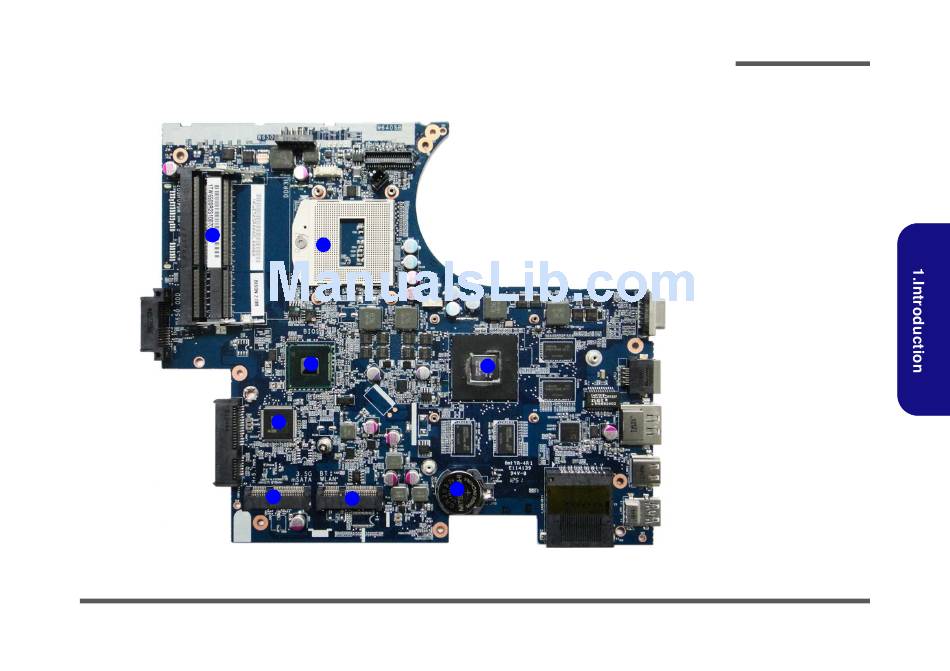

Figure 8
Mainboard Bottom
Key Parts
1. Memory Slots
DDR3 SO-DIMM
2. CPU Socket (no
CPU installed)
3. Platform Controller
Hub
4. GPU
5. KBC-ITE IT8518
6. Mini-Card
Connector (3G
Module)
7. Mini-Card
Connector (WLAN
Module)
8. CMOS Battery
