Introduction
Mainboard Overview - Bottom

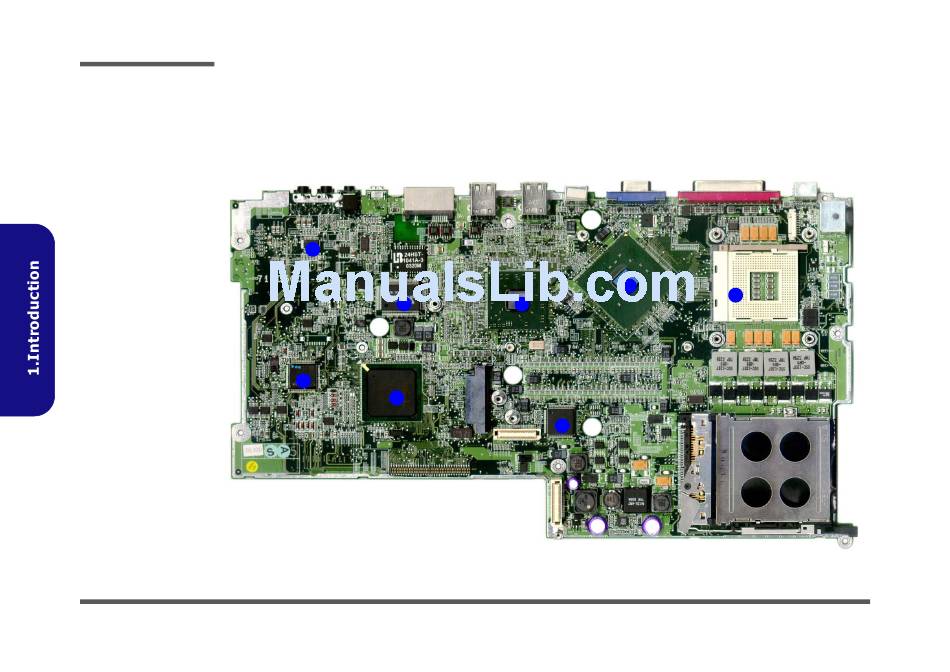

Figure 1 - 8
Mainboard
Overview - Bottom
Key Parts
1. CPU Socket (no
CPU installed)
2. VGA Chip - ATI
M10
3. LAN Controller -
RTL8110S-32
4. Super IO
NS87393
5. Southbridge Intel
82801
6. Northbridge Intel
GMCH 865PE
7. H8 Keyboard
Controller
8. Audio AMP TI-
TPA0132

1 - 10 Mainboard Overview - Bottom (Key Parts)

11
9
10
8
3
7
5
(Key Parts)
12
6
2
4
1
