Installing or Replacing the RTM LAN

The RTM LAN card on the rear of the RMX 2000 provides connectivity to all the MCU
modules. The RTM LAN card must be seated opposite to an MPM+/MPMx card located in
the top slots on the front of the RMX.

Removing the Blank Cover (for new installations)

For details, see "Removing the Blank Cover from the Rear Panel" on page 1-35.

Removing an Existing RTM LAN Card

Use the following procedure to remove the RTM LAN card from its slot (not required when
installing a new card):
1
2
3
Polycom, Inc.

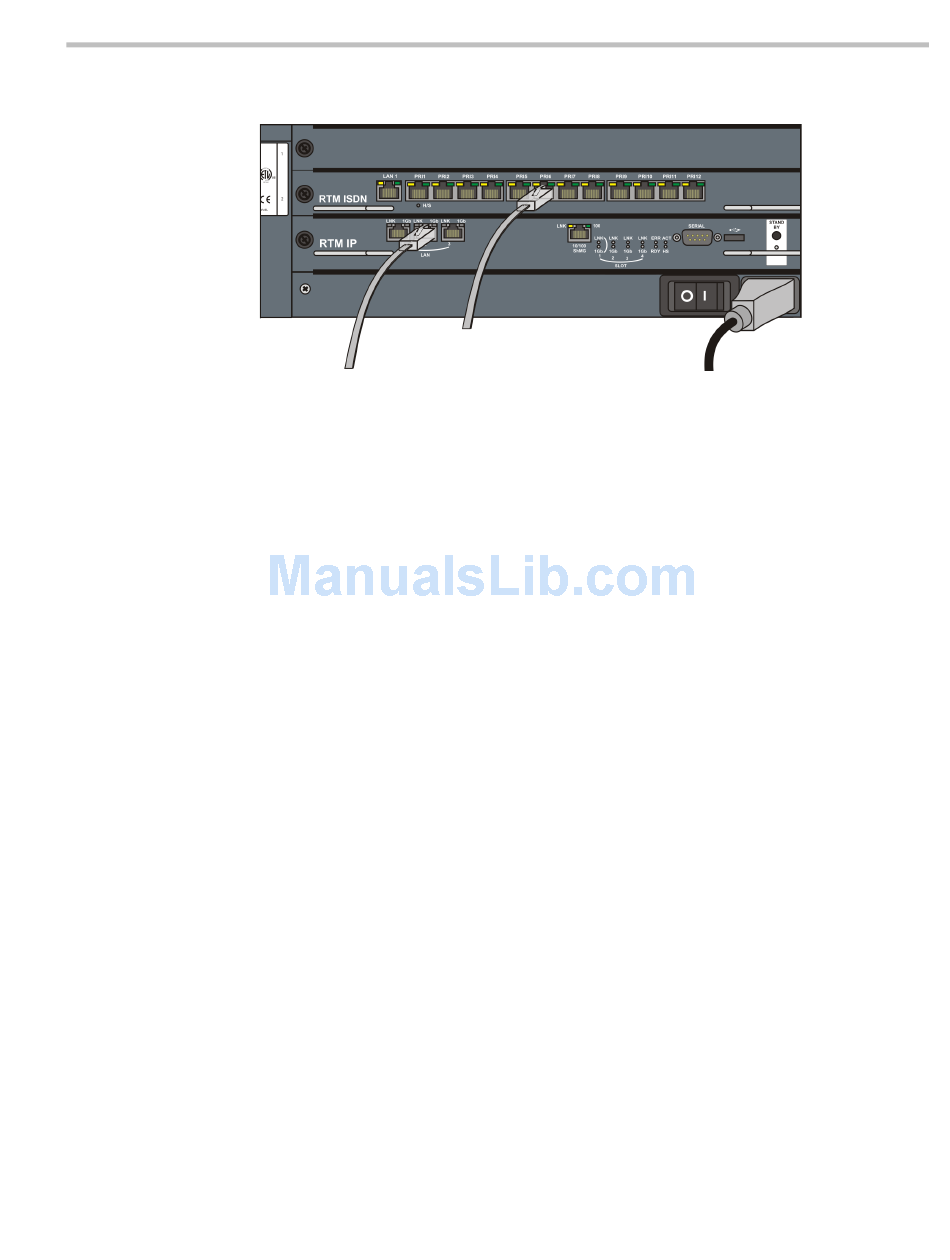

Connect the RJ-45 terminated PRI cables into any of the slots labeled PRI1 - PRI12:
PRI Cables
LAN
7 E1 or 9 T1 cables can be connected to each RTM ISDN card, up to a total of 14 E1 or 18
T1 PRI cables when two RTM ISDN cards are installed.
Turn ON the RMX.
Login on to the RealPresence Collaboration Server Web Client.
When a new ISDN card is installed you are required to do the following:
Update your licence. For more information see, RealPresence Collaboration Server
a
1500/2000/4000 Getting Started Guide, Chapter 2, "Procedure 2: Product Registration"
on page 2-28.
In the ISDN/PSTN Network Services define a New ISDN Network Service. For
b
more information see, RealPresence Collaboration Server (RMX) 1500/2000/4000
Administrators Guide, Chapter 16, "Adding/Modifying ISDN/PSTN Network Services"
on page 16-45.
Ensure that the power switch/circuit switch on the RMX 2000 is turned OFF (O).
Remove the cables connected to the card.
Unscrew the captive screws on the rear panel of the RMX 2000 that secure the RTM
LAN card.
Chapter 1-Hardware Description
Power
1-37
