— Use the Rack Spacer (item no. 3) to predetermine its position on the rack post,
making sure that square studs of the spacer fit into the rack post's square/rounded
mounting holes. Mark the spacer's location on the rack post. Repeat this process for
the 3 remaining vertical posts ensuring that the system can be horizontally seated.

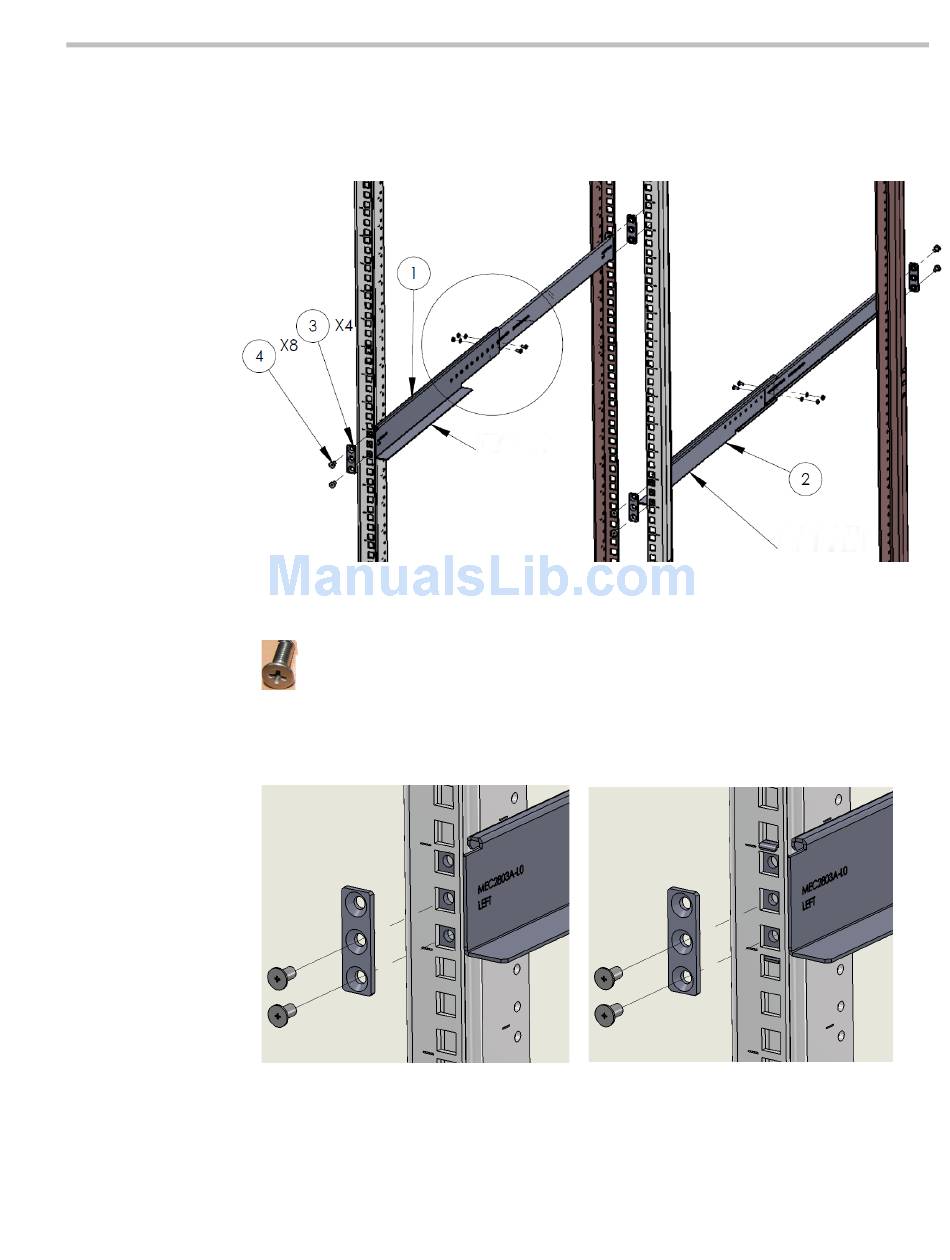

Figure 1-1 Front view of RMX Rail Runner Assembly
Position the Rack Spacer (item no. 3) onto the marked rack post together with left rack
rail runner (item no. 1 which is labeled LEFT) and fasten the flat head screws 3*10mm
(item no. 4) as shown in the following figure:
RMX 2000 rack assembly view
without rail runner clip
Figure 1-2 Detail of Front Rack Spacer Assembly (left rail runner is shown here) for all RMX
types
LEFT RAIL
RMX 2000 rack assembly view
with rail runner clip
Chapter 1-Hardware Description
RIGHT RAIL
1-9
