RMX™ 2000

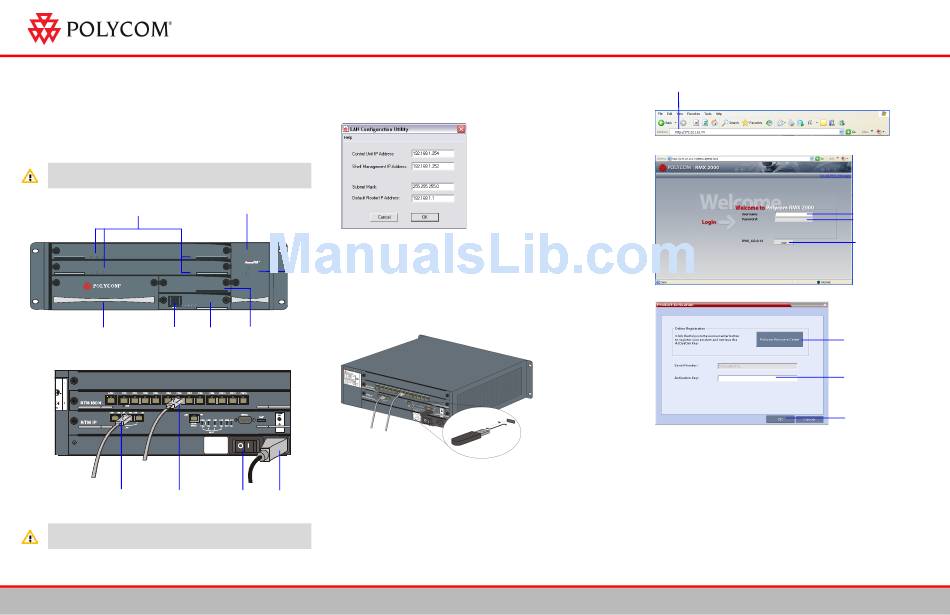

Installation Quick Start Guide for

RMX 2000

Basic Setup

Before installing the RMX 2000 and performing the Basic Setup, please read the
General Safety Precautions described in the Polycom RMX 2000 Hardware Guide.
Front
MPM/MPM+ Cards & LEDs
Panel
ERR RDY ACT HS
ERR RDY ACT HS
RMX 2000
PWR ERR RDYACT HD HS
Power Supply Drawer USB Ports - not for
customer use
Rear
Panel
LAN 2 Connection E1/T1 Connections
(Optional)
Do not remove the protective plastic caps from LAN1, LAN3 and ShMG ports.
1
Modifying the USB Key Settings
1 Insert the USB Key provided with your system into the PC workstation and double-
click LanConfigUtility.exe to start the utility.
Fan Drawer
2 Modify the parameters in the utility's dialog box using the information supplied by
your network administrator.
MPM+80 Fan & 3
Click OK.
Power
FAN 4 Remove the USB Key from the PC.
STATUS
MPM+80
Status
PWR
STATUS
LEDs
CNTL
First-time Power-up and Connection to MCU
FANS
CNTL
1
Insert the USB Key containing the modified IP addresses in the USB port on the
RMX's back panel.
Control Unit Optional CPU &
& LEDs LEDs
2 Power the RMX ON.
The parameters in the lan.cfg file are uploaded from the USB key to the RMX's
memory and applied during the power-up sequence.
Off/On Power
System power-up sequence may take up to five minutes.
Cable
Switch
During the first-time power-up the red ERR LED on the RMX's front panel remains
ON until both the Management and IP Network Services have been defined.
3 Remove the USB key.
Enter the IP address of the RMX Control Unit and press Enter.
4
5
6
Enter POLYCOM.
Enter POLYCOM.
Click Login.
Click to connect to Polycom
web site and register the
RMX.
Click Product Registration
and follow the on screen
instructions to obtain the
Product Activation Key.
Enter or paste the Product
Activation Key obtained.
Click OK.
.
