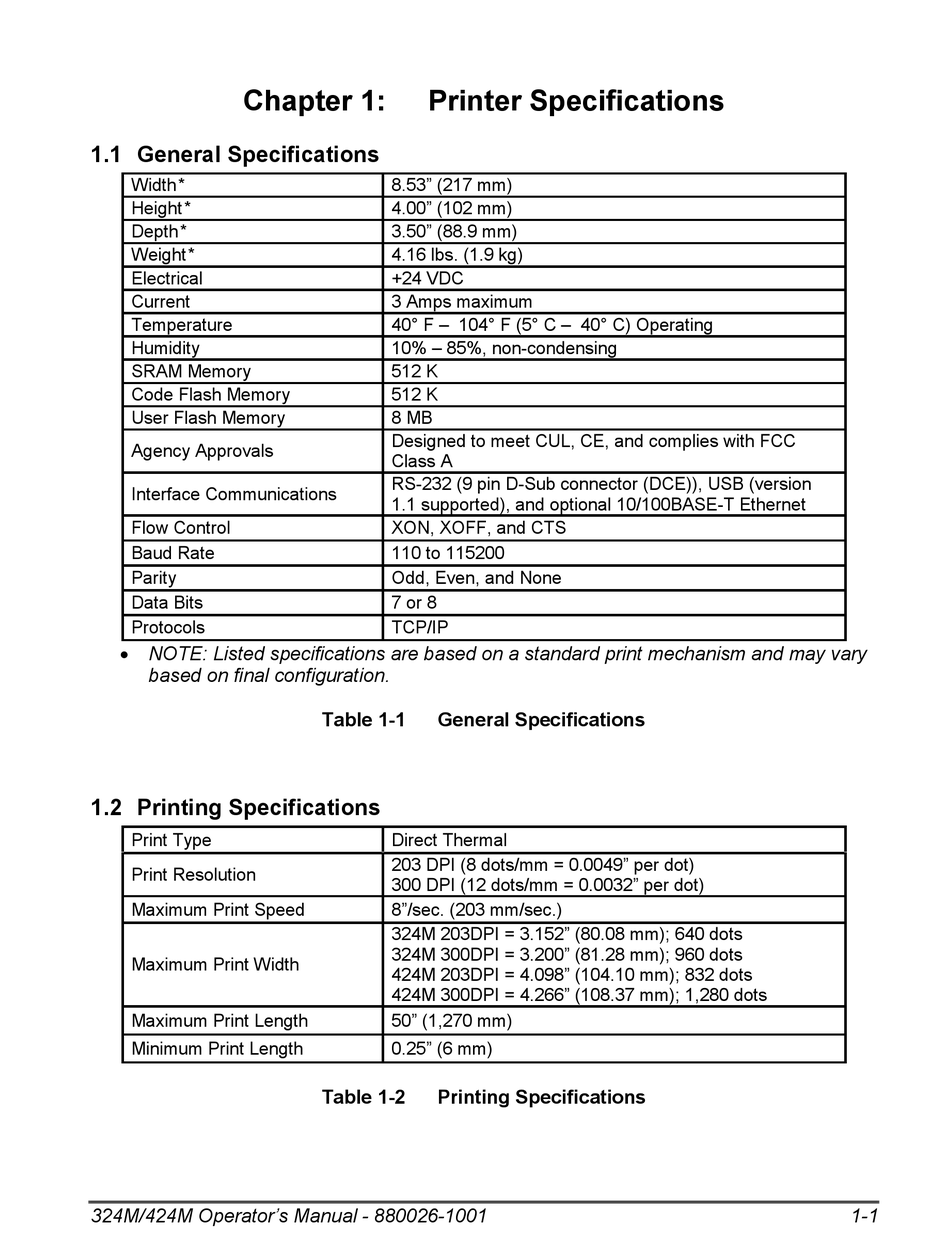

Chapter 1:

1.1 General Specifications

Width*
Height*
Depth*
Weight*
Electrical
Current
Temperature
Humidity
SRAM Memory
Code Flash Memory
User Flash Memory
Agency Approvals
Interface Communications
Flow Control
Baud Rate
Parity
Data Bits
Protocols
 NOTE: Listed specifications are based on a standard print mechanism and may vary
based on final configuration.

1.2 Printing Specifications

Print Type
Print Resolution
Maximum Print Speed
Maximum Print Width
Maximum Print Length
Minimum Print Length
324M/424M Operator's Manual - 880026-1001
Printer Specifications
8.53" (217 mm)
4.00" (102 mm)
3.50" (88.9 mm)
4.16 lbs. (1.9 kg)
+24 VDC
3 Amps maximum
40° F – 104° F (5° C – 40° C) Operating
10% – 85%, non-condensing
512 K
512 K
8 MB
Designed to meet CUL, CE, and complies with FCC
Class A
RS-232 (9 pin D-Sub connector (DCE)), USB (version
1.1 supported), and optional 10/100BASE-T Ethernet
XON, XOFF, and CTS
110 to 115200
Odd, Even, and None
7 or 8
TCP/IP
Table 1-1 General Specifications
Direct Thermal
203 DPI (8 dots/mm = 0.0049" per dot)
300 DPI (12 dots/mm = 0.0032" per dot)
8"/sec. (203 mm/sec.)
324M 203DPI = 3.152" (80.08 mm); 640 dots
324M 300DPI = 3.200" (81.28 mm); 960 dots
424M 203DPI = 4.098" (104.10 mm); 832 dots
424M 300DPI = 4.266" (108.37 mm); 1,280 dots
50" (1,270 mm)
0.25" (6 mm)
Table 1-2 Printing Specifications
1-1
