Chapter 4 Designing Labels with LDS
<CR> = A carriage return must follow the header.

4.6 Label Format Fields

The Label Format Fields are used to define the characteristics, placement and
representation of the corresponding text data of the individual fields. A format field is
broken down into many different parameters. It is not necessary to enter values for all of the
parameters (default value will be used if a parameter is left blank) but each parameter must
be separated with the comma delimiter (","). A carriage return must follow each format field
for proper operation to occur. The values entered must be positive integers for all of the
parameters of the format field.
This is a list of the first label format field element mnemonics for the sample label in Error!
Reference source not found.:
TSN, XB, YB, CC, TCI, CGN, FO, FJ, CMX, CMY, CS, TSP, , , AN
1, 640, 650, 8, 1, 5, 0, 4, 2, 2, 1, 1, , , 0

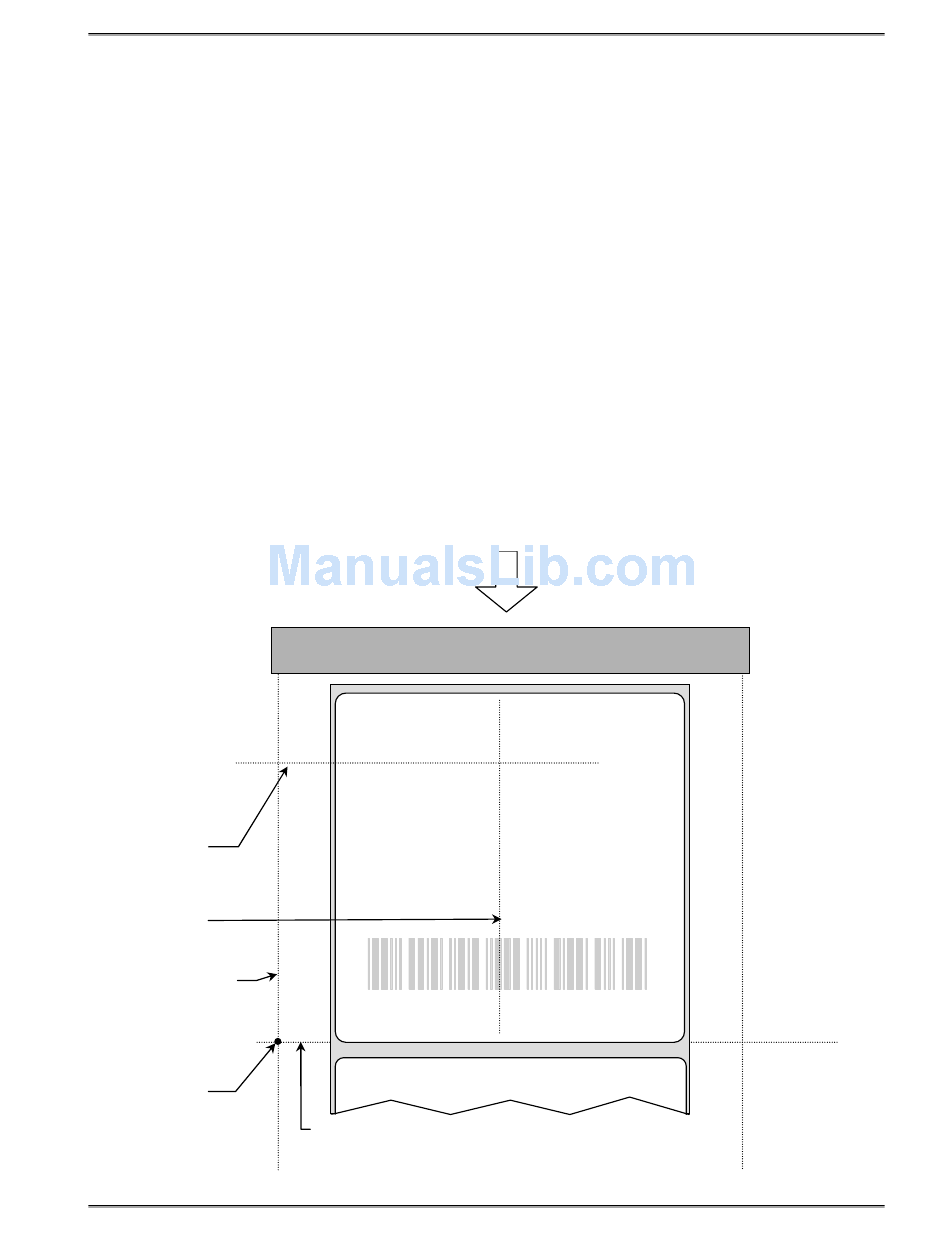

Feed Direction
4" PRINT HEAD
Microcom
Corporation
YB
Thermal Printing Solutions
012345
XB
X beginning
This is the
origin; 1,1
Y beginning
324M/424M Operator's Manual - 880026-1001 4-11
