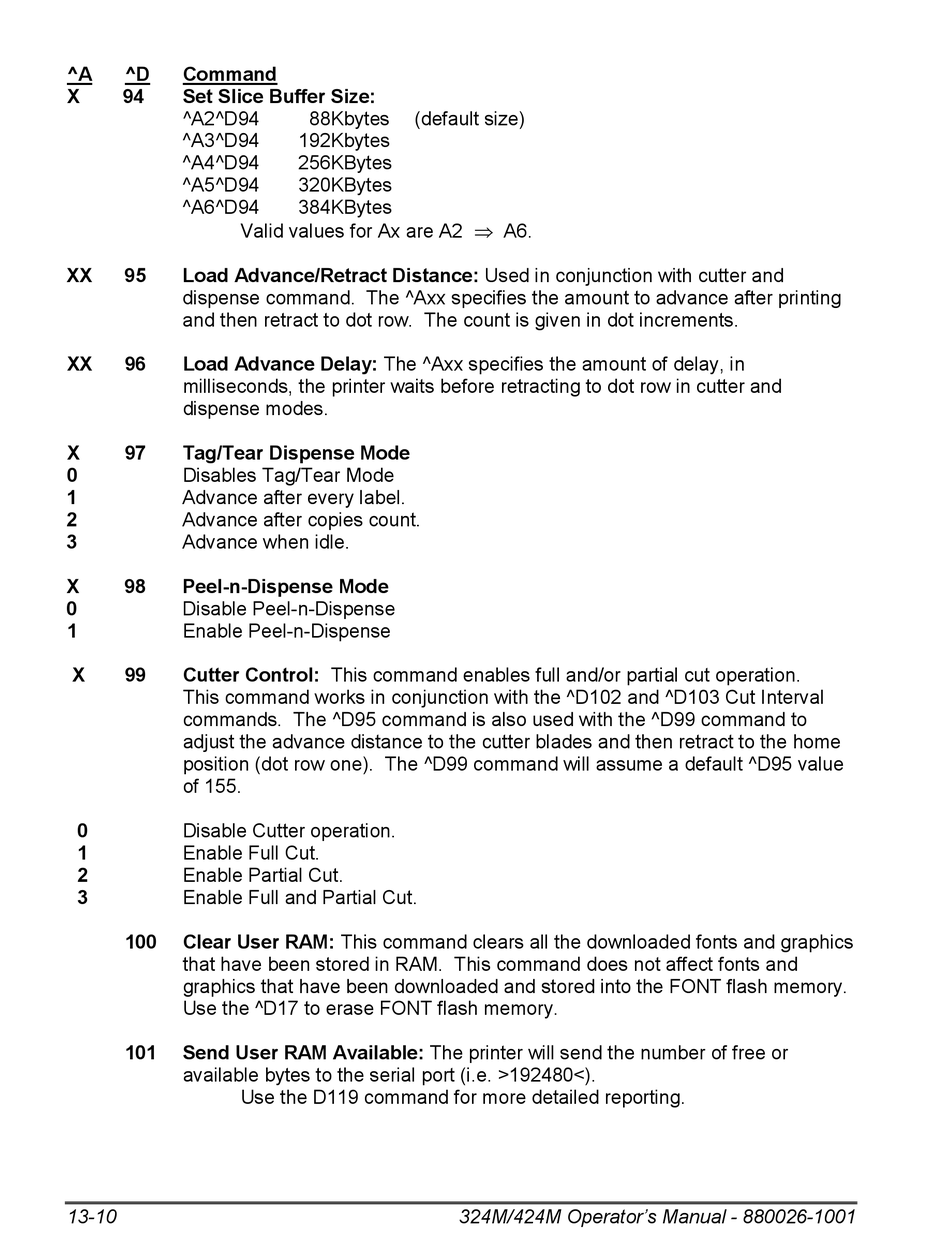

^A
^D
Command
X
94
Set Slice Buffer Size:
^A2^D94
^A3^D94
^A4^D94
^A5^D94
^A6^D94
Valid values for Ax are A2  A6.
XX
95
Load Advance/Retract Distance: Used in conjunction with cutter and
dispense command. The ^Axx specifies the amount to advance after printing
and then retract to dot row. The count is given in dot increments.
XX
96
Load Advance Delay: The ^Axx specifies the amount of delay, in
milliseconds, the printer waits before retracting to dot row in cutter and
dispense modes.
X
97
Tag/Tear Dispense Mode
0
Disables Tag/Tear Mode
1
Advance after every label.
2
Advance after copies count.
3
Advance when idle.
X
98
Peel-n-Dispense Mode
0
Disable Peel-n-Dispense
1
Enable Peel-n-Dispense
X
99
Cutter Control: This command enables full and/or partial cut operation.
This command works in conjunction with the ^D102 and ^D103 Cut Interval
commands. The ^D95 command is also used with the ^D99 command to
adjust the advance distance to the cutter blades and then retract to the home
position (dot row one). The ^D99 command will assume a default ^D95 value
of 155.
0
Disable Cutter operation.
1
Enable Full Cut.
2
Enable Partial Cut.
3
Enable Full and Partial Cut.
100
Clear User RAM: This command clears all the downloaded fonts and graphics
that have been stored in RAM. This command does not affect fonts and
graphics that have been downloaded and stored into the FONT flash memory.
Use the ^D17 to erase FONT flash memory.
101
Send User RAM Available: The printer will send the number of free or
available bytes to the serial port (i.e. >192480<).
Use the D119 command for more detailed reporting.
13-10
88Kbytes
(default size)
192Kbytes
256KBytes
320KBytes
384KBytes
324M/424M Operator's Manual - 880026-1001
