Euphonix CS3000/2000 MixView 3.0 Software Supplement

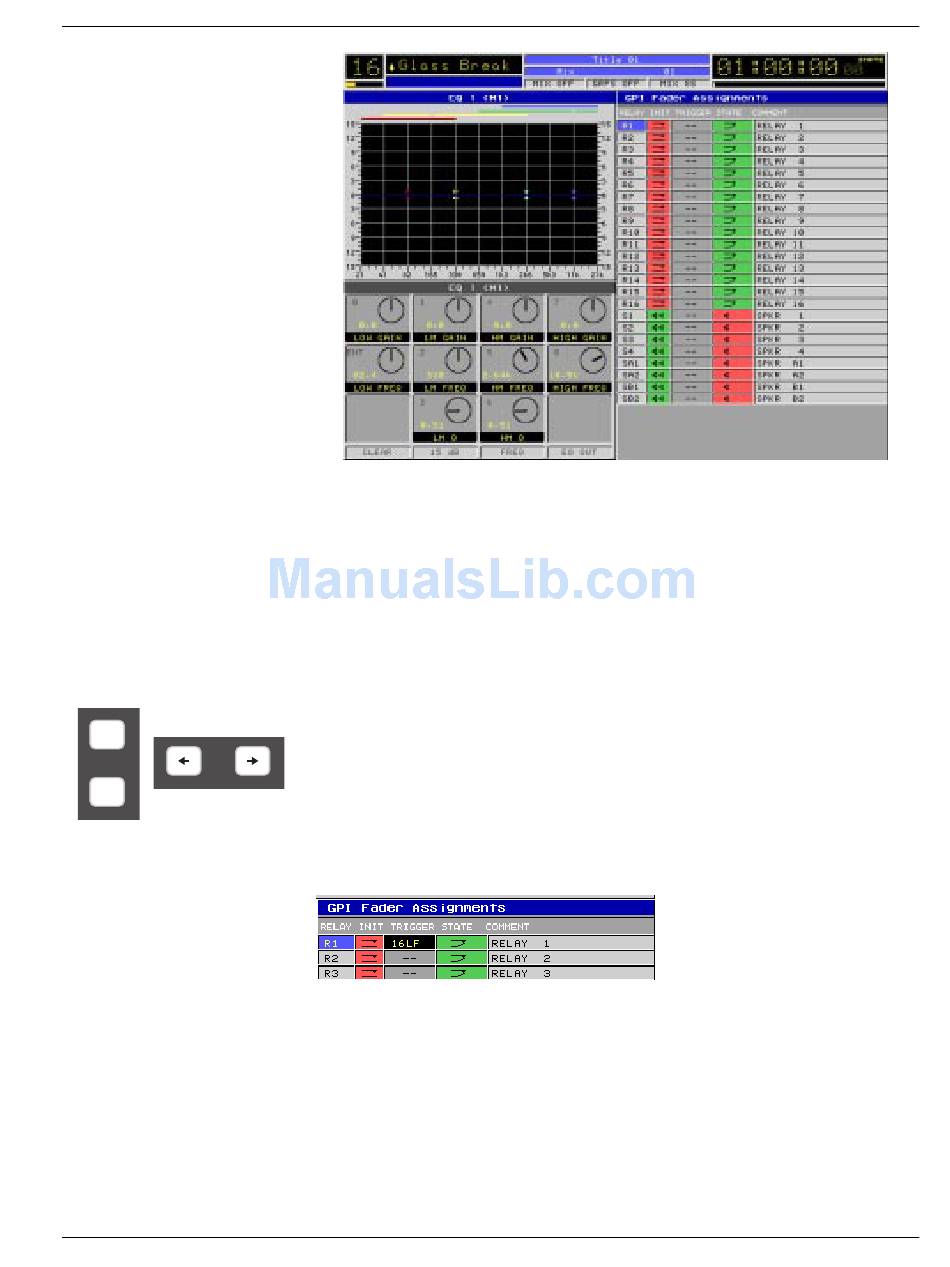

Column names and their functions are as follows:
• RELAY: The r elay number being addr essed.
• INIT: The state to which a r elay is set when initialized or r
• TRIGGER: The fader object contr olling the r elay .
• STATE: The "active" position of the r
movement of the fader object.
• COMMENT: The name of the r elay assigned by either the console or the
user.
The DSC [ +]/[-] keys are used to move vertically within columns to
select/addr ess any GPI r elay . The DSC [ left arrow] and [ right arrow] keys
move the selection horizontally from column to column.
To assign a fader object to a r
attention key:
The selected fader object appears in the TRIGGER field. T
object designation, pr ess [ Clr] and then [ F3] (Yes).
As you may have noticed, it is not necessary to first select the TRIGGER field
in or der to assign the fader object. The INIT and ST
similar manner when pressing F2 and F3.
As with MIDI and Fader -Linking scr eens, the [ Enter] key duplicates the
currently selected GPI object allowing it to be controlled from multiple faders.
elay when trigger ed by the upwar d
elay , select the r elay and pr ess a fader object's
ATE fields operate in a
Section 10: MX464
eset.
o clear any fader
10 - 71
