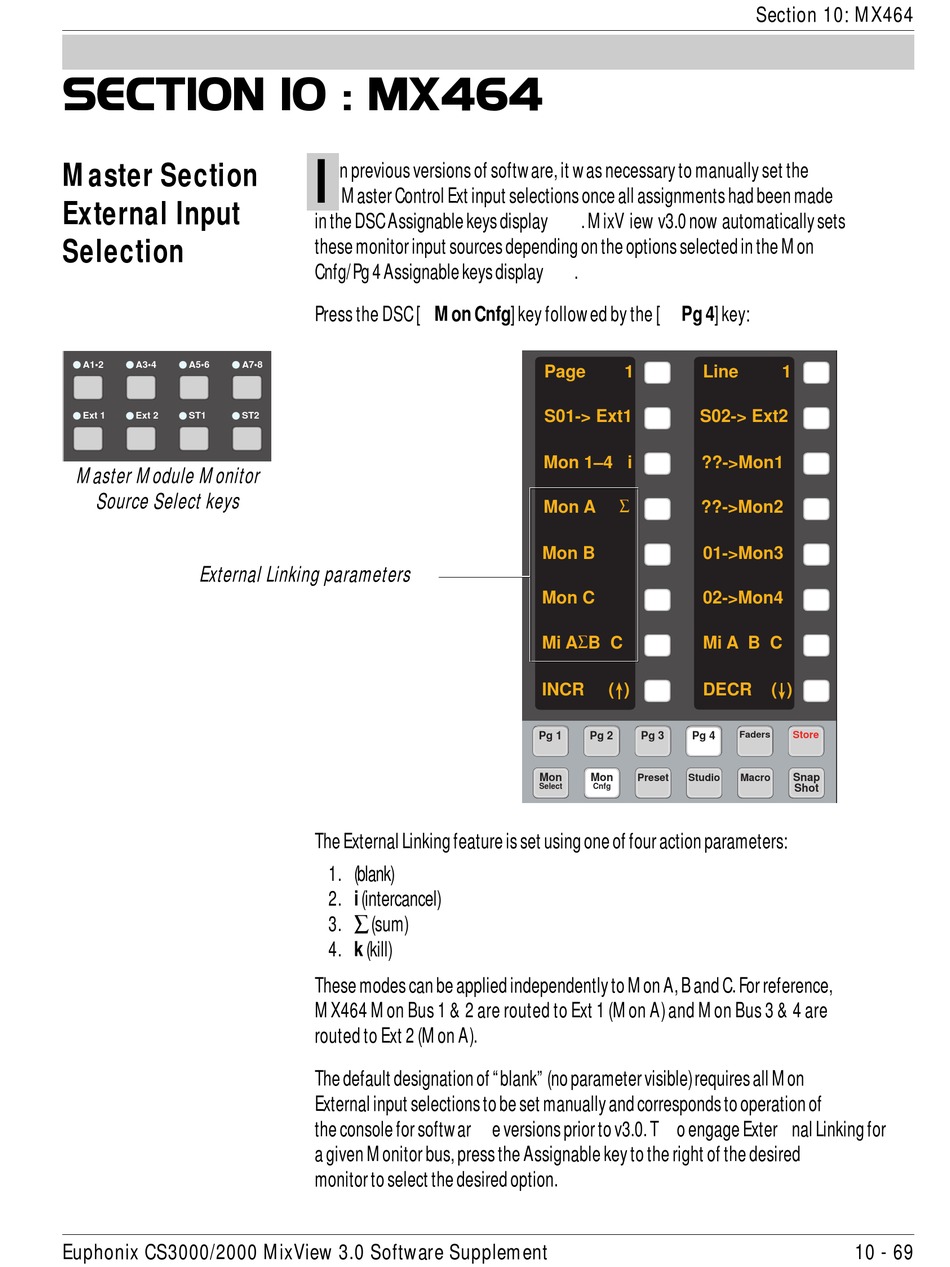

SECTION 10 : MX464

Master Section
External Input
Selection
A1•2 A3•4 A5•6
Ext 1 Ext 2 ST1
Master Module Monitor
Source Select keys
External Linking parameters
Euphonix CS3000/2000 MixView 3.0 Software Supplement
I
n previous versions of software, it was necessary to manually set the
Master Control Ext input selections once all assignments had been made
in the DSC Assignable keys display
these monitor input sources depending on the options selected in the Mon
Cnfg/Pg 4 Assignable keys display
Press the DSC [ Mon Cnfg] key followed by the [ Pg 4] key:
A7•8
ST2
The External Linking feature is set using one of four action parameters:
1. (blank)
2. i (intercancel)
3. (sum)
4. k (kill)
These modes can be applied independently to Mon A, B and C. For reference,
MX464 Mon Bus 1 & 2 are routed to Ext 1 (Mon A) and Mon Bus 3 & 4 are
routed to Ext 2 (Mon A).
The default designation of "blank" (no parameter visible) requires all Mon
External input selections to be set manually and corresponds to operation of
the console for softwar e versions prior to v3.0. T o engage Exter nal Linking for
a given Monitor bus, press the Assignable key to the right of the desired
monitor to select the desired option.
. MixV iew v3.0 now automatically sets
.
Page 1 1 Line
S01-> Ext1 2 S02-> Ext2
Mon 1–4 i 3 ??->Mon1
Mon A 4 ??->Mon2
Mon B 5 01->Mon3
Mon C 6 02->Mon4
Mi A B C 7 Mi A B C
INCR ( ) 8 DECR
Pg 1 Pg 2 Pg 3 Pg 4
Pg 1 Pg 2 Pg 3 Pg 4
Mon Mon Mon Mon Preset Studio
Preset Studio
Select Select Cnfg Cnfg
