Section 5: Hyper-Surround
EXERCISE 3
Setting Up a Surround
Only Panner
5 - 38

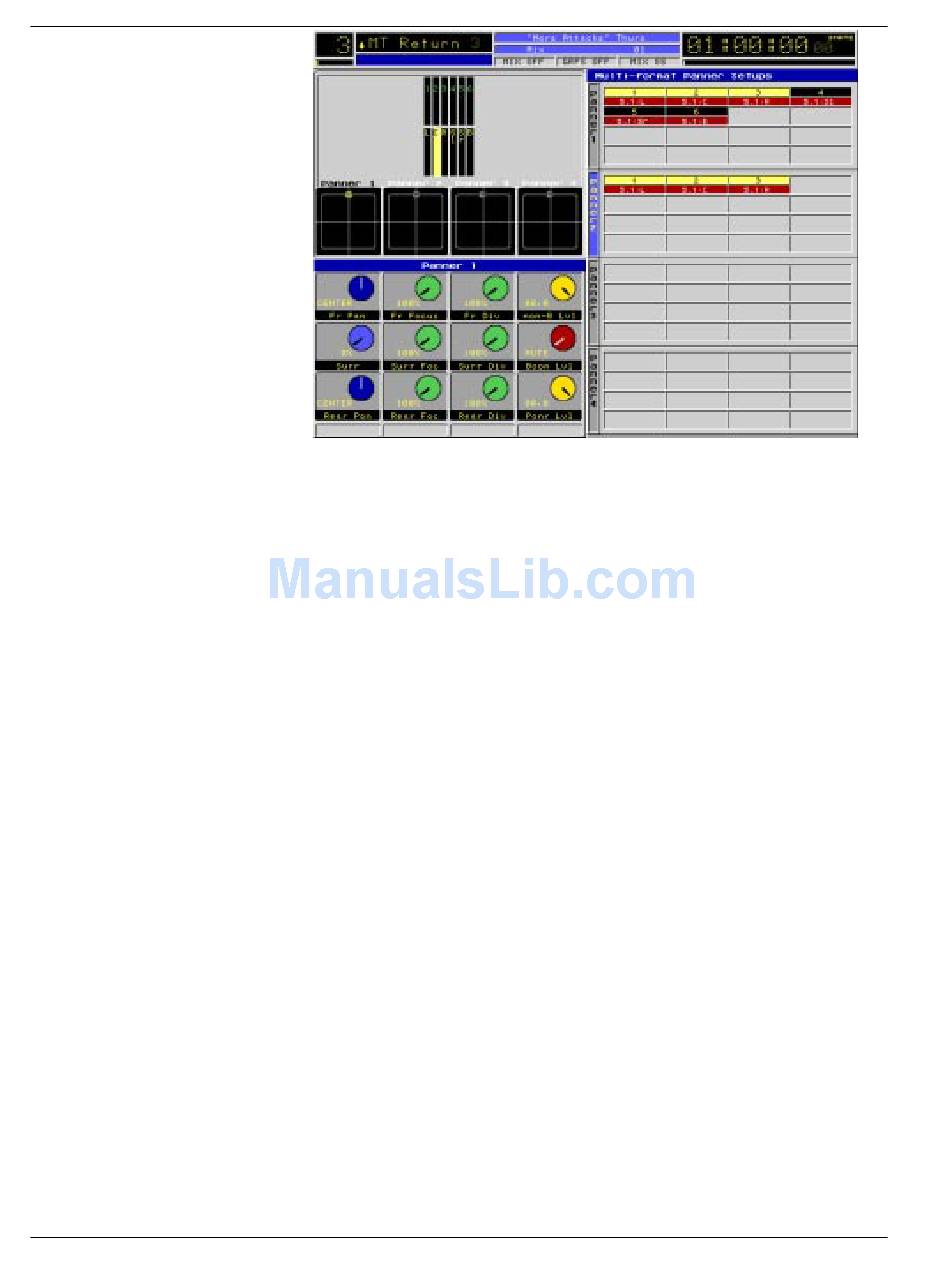

Notice that in both the Full 5.1 and the LCR 5.1 , the bus indication on the
panner setup display changed from black to yellow background.
Yellow in the bus indication window tells you that the bus is shared by another
panner. In this case panner 1 and panner 2 share buses 1, 2 and 3.
A panner's ability to have common buses is a powerful feature of Hyper-
Surround. The system will not permit a fader to be assigned to two panners
simultaneously if the panners have common buses.
Name this panner as you did the first.
Press [Esc] and observe the "Please wait..." message in the SmartDisplay
briefly.
Again, in the left hand screen display you will see a complete set of panner
knobs for the selected panner.
With the Pan Assign key lit you are now ready to use both the full 5.1 or the
LCR panner.
In this exercise we will build a LS-RS panner for surrounds only.
You will follow the sequence of keystrokes outlined in the last two exercises
and then change the bus assignments to be Sl=4 and Sr=5.
With the [ Pan Assgn] key lit, reenter the panner setup menu again by pressing
[F4] (down arrow s) and then [ F2] (Setup) to view the panner setup screen and
menu. Press the [right arrow] until you see the blue cursor move down to the
first block of the next panner (panner 3).
