Meter Modes

SIDE NOTE:
Assigning meter modes
globally by using the DSC
Mtrs key, always
overrides and changes
any individual channel
meter assignments.
12 12
48 48
60 33 60 33
U F L
B
M M M
1 2 1 2 1 2
L L L
1 2 1 2 1 2
L L L
3 4 3 4 3 4
Out 1 Out 2 Out 3
+
Bus
-
DIR
7 - 56

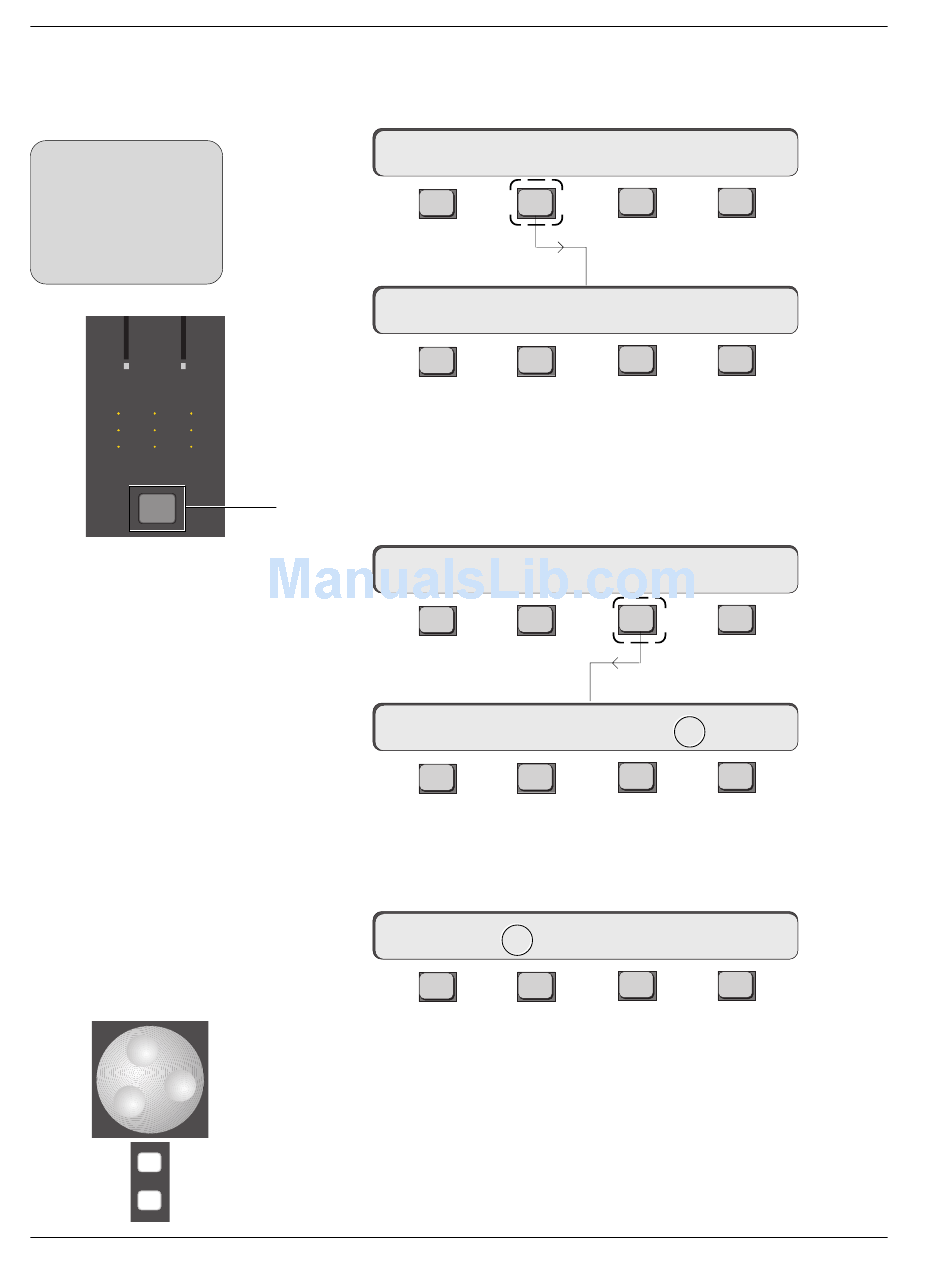

You can set the meter modes globally for all channel I/O meters or for indi-
vidual channels. To set the meter mode globally, press the DSC [Mtrs] key,
then [F2] (I/O):
Global Meter Menu
Mode
Meter Config Menu
**CH->Aud:OFF
The two asterisks preceding the channel designator indicate that we are
affecting all I/O meters simultaneously. Pressing the [*ST] key from the Meter
Config menu switches you into individual meter config mode. There is another
way to set meter modes for individual channels. Press a channel's attention
key located just under the I/O channel's meter array, then press [F3] (METER):
1CH->
1CH->Aud:OFF
Starting with unconfigured meters, attention is initially directed to the right
channel meter as indicated by the arrow between Aud and OFF. Press [F2] to
direct attention to the left meter:
1CH->Aud->OFF
Pressing [F2] again toggles the meter mode between Aud (Audio signal) and
Lvl (DCA level).
This new menu structure allows each meter's source to be assigned using the
SpinKnob or [+]/[-] keys.
Euphonix CS3000/2000 MixView 3.0 Software Supplement
