Querying a
Channel's Bus/Line
Routing
7 - 58
Now press the [ + Bus] or [F3] keys to assign the MT bus to Out3.
1CH->OUT3
F1
If M1 had been previously set as the Out3 source, MT replaces it. You may
also use the DSC Source Assign keys to assign additional sources to Out3.
When MT is selected to the Out3 bus, the M1 Out3 channel I/O source matrix
LED remains lit (for both M1 and MT assignments) along with the B LED (MT
for the CS2000).

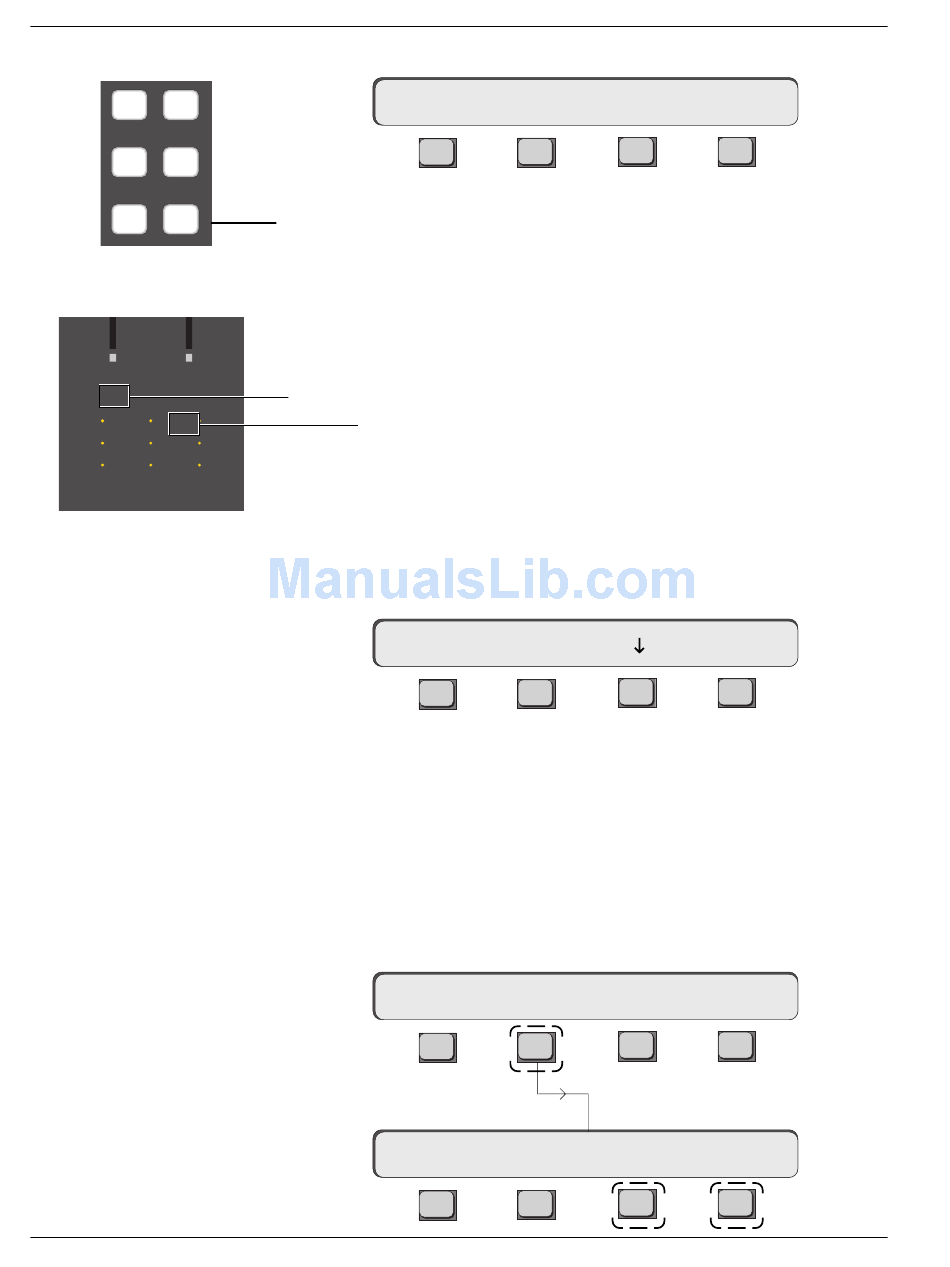

Indicates MT selected as Out3 source
Out3, M1 designation
When viewing an individual channel's meter settings and L4 is selected as the
meter source, you will see an arrow to the left of the L4 designation:
16CH->Aud:OFF
F1
The arrow designates whether the L4 source is currently coming from the line
feed in the patchbay or from the MT Bus. An upward pointing arrow desig-
nates Bus mode while a downward pointing arrow designates a Line/Tape
feed. L4 sourcing, however, cannot be changed from this menu. The arrow is
shown here just a convenient way to determine where your signal is currently
sourced from. This indication is not available via the global [Mtrs] key.
To change the L4 source routing for any channel, press the channel's attention
key, [F4] (Route), [F2] (L4) and then [F3]/[F4] (BUS/LINE) to set the source.
1CH->
F1
16CH->L4 IN:
F1
