Connecting the Monitor

For systems using a RealiZm Z10 video display adapter:

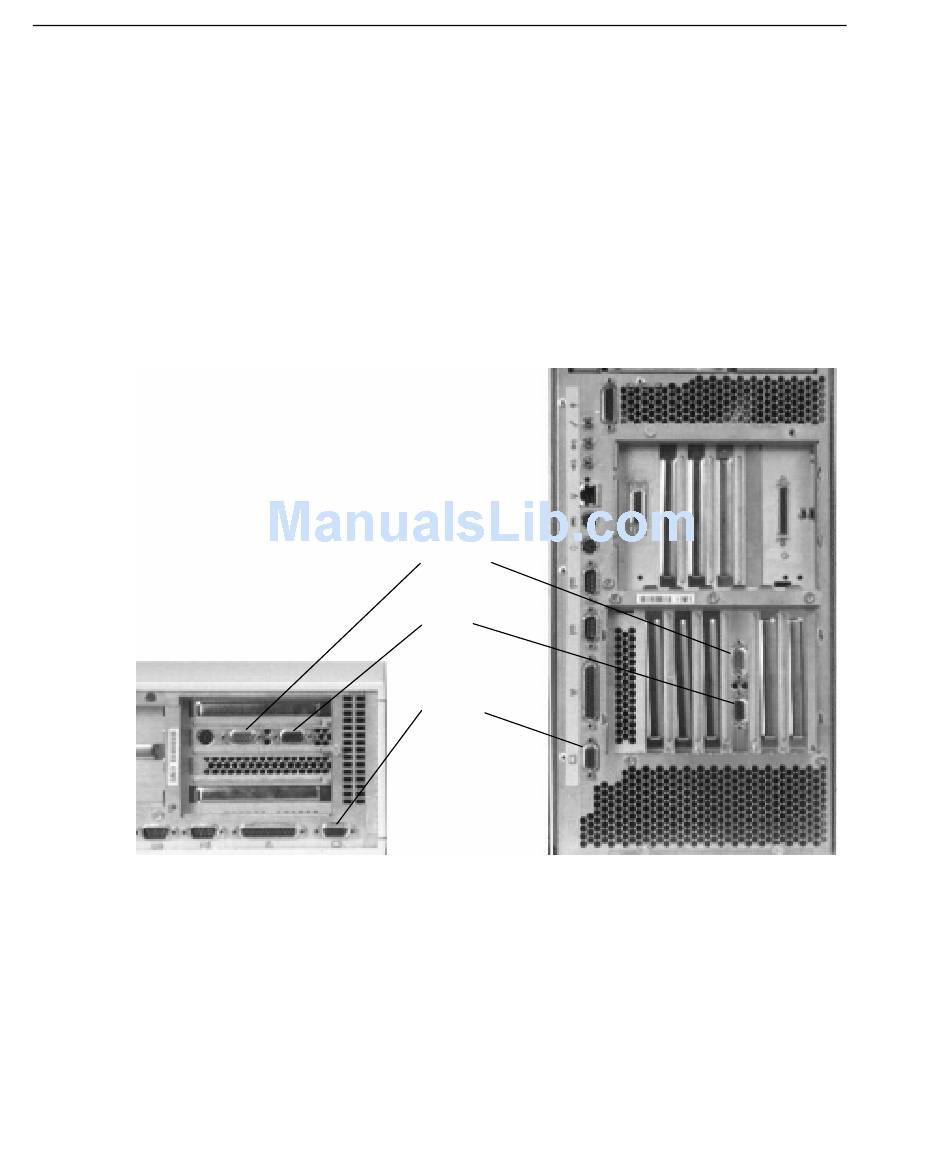

Connect a video loopback cable to the VGA Out port adjacent to the parallel port, and to the
VGA In port on the RealiZm video display adapter. Refer to the following figure.
For systems using any video display adapter:
Connect the video cable to the monitor and to the Video Out port on the video display adapter
in the appropriate PCI slot. Refer to the following figure.
CAUTION Unless you use an on-board G95 video display adapter, do not connect the video cable for the
monitor to either of the VGA ports. If you do, the system will boot up to the blue screen and
stop, or video will not display at all.
If you use an on-board G95 video display adapter, connect the video cable to the monitor and
to the on-board VGA Out port.
For information on connecting the system to dual monitors, or for more detailed information
on the system's video display adapter, refer to the documentation delivered with the adapter.
Video Out
VGA In
VGA Out
