Intergraph TD-260 System Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TD-260
System Guide
October 1998
DHA026120

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TD-260 and is the answer not in the manual?

Questions and answers

Related Manuals for Intergraph TD-260

Summary of Contents for Intergraph TD-260

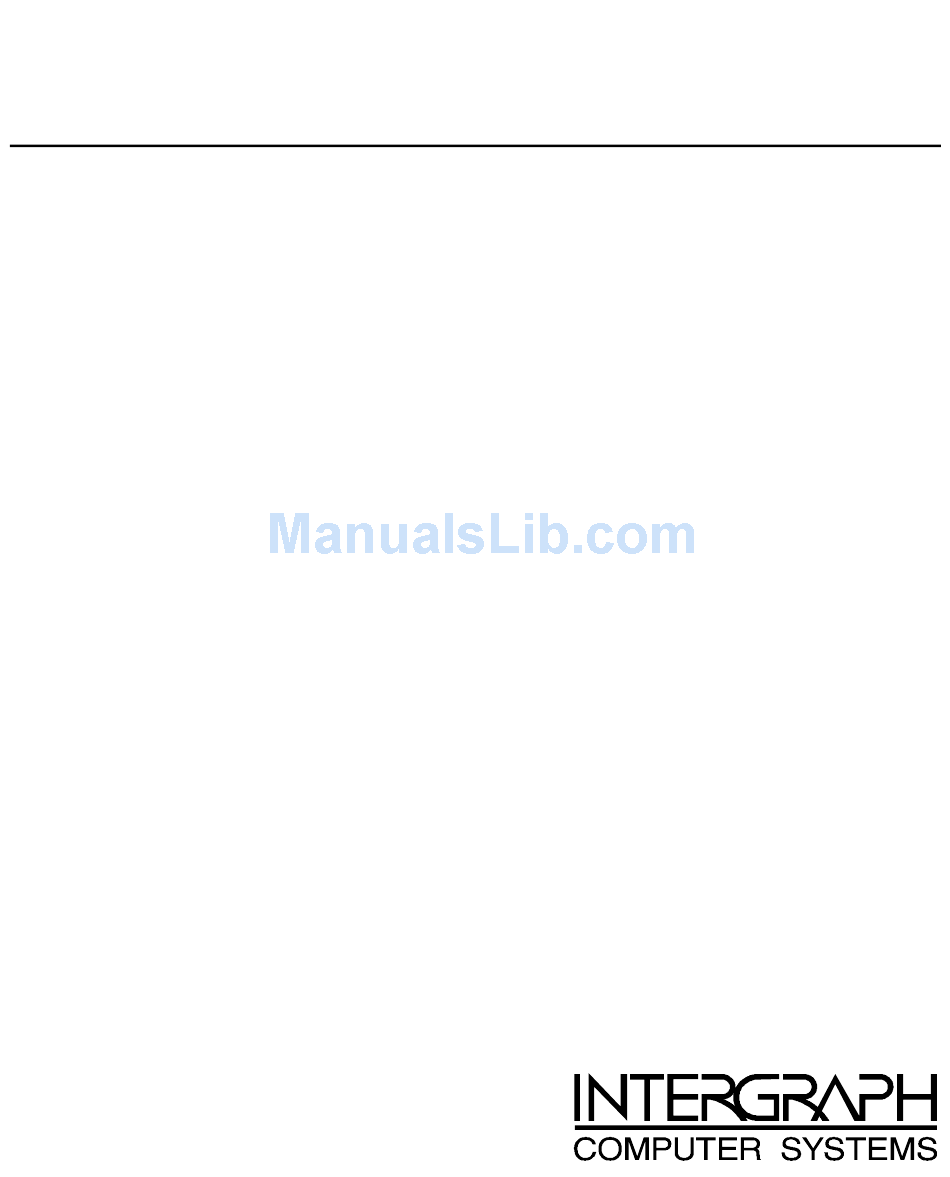

  • Page 1 TD-260 System Guide October 1998 DHA026120...
  • Page 2 Computer Systems shall not be liable for incidental or consequential damages resulting from the furnishing or use of this document. All warranties given by Intergraph Computer Systems about equipment or software are set forth in your purchase contract. Nothing stated in, or implied by, this document or its contents shall be considered or deemed a modification or amendment of such warranties.
  • Page 3 Notes This device is designed and manufactured to comply with approved safety standards for information processing and business equipment. Read all operating instructions before using this device. Keep these instructions for future reference. Follow all warnings on the device or in the operating instructions.

  • Page 5: Table Of Contents

    Learning About System Ergonomics ................xi Customer Support ....................... xii Hardware and Software Support Services ............xii World Wide Web ..................xii Intergraph Bulletin Board Service ..............xii FAXLink ..................... xiii Telephone ....................xiii More Support Options...................xiv 1 Setting Up the Hardware..................1 Unpacking the System ....................2...
  • Page 6 Updating the Operating System ...................21 Configuring the BIOS....................21 Updating the BIOS ......................21 What’s Next?.......................23 4 Operating Notes ......................25 Observing Operating Precautions.................26 Using the Keyboard .....................26 Using the Mouse......................27 Using the Floppy Disk Drive..................28 Using the CD-ROM Drive ...................28 Starting and Shutting Down the System...............29 Starting MS-DOS from the Startup Menu (Windows 95 or Windows 98).....30 Using InterSite Programs (Windows NT)..............31 Updating an Emergency Repair Disk or a Startup Diskette...........31...
  • Page 7 Using System Resources ....................53 8 System Board Overview..................55 System Board Standard Features..................56 System Board Map.......................58 Operating Environment ....................60 9 System Board Upgrades..................61 Removing the System Board ..................62 Removing or Replacing a Processor ................63 Intel Pentium II Processor ................63 Intel Celeron Processor ..................65 Jumper Settings ......................66 Processor Core Frequency Selection/Clear CMOS Jumper (J11) .....66 In-Order Queue Depth Selection Jumper (J26) ..........68...
  • Page 8 viii Power Menu....................89 Boot Menu .....................90 Exit Menu......................92 Returned Goods Authorization (RGA) Form Warranty Procedure Repair Depot Address Labels...

  • Page 9: Preface

    TD-260 personal computers. You can easily expand and upgrade these systems to meet your needs. Intergraph offers a wide array of industry-standard option cards for the available Accelerated Graphics Port (AGP), Peripheral Component Interconnect (PCI), or Industry Standard Architecture (ISA) slots.

  • Page 10: About This Document

    Three-button mouse Sound Blaster-compatible audio card and external powered speakers Optional multimedia keyboard or speaker/microphone set Optional PC Card adapter for Type I, Type II, or Type III PCMCIA devices Optional network adapters Optional 56 Kbps modem Optional CD-Recorder drive Optional DVD-ROM drive Optional tape, Zip, and Jaz drives Optional SCSI adapter for external SCSI devices...

  • Page 11: Document Conventions

    Learning About System Ergonomics Please read the Ergonomics Guide included with your Intergraph computer system. This document provides valuable information on ways to minimize repetitive stress injuries for persons working with a computer.

  • Page 12: Customer Support

    Services include warranty upgrades, repair depot service, on-site hardware maintenance, system administration, and network consulting. Hardware purchased from Intergraph Computer Systems includes a factory warranty ranging from 30 days to three years. A detailed warranty description is available on the World Wide Web; see the Support pages at http://www.intergraph.com/ics.

  • Page 13: Faxlink

    Have the following information available when you call: Your service number, which identifies your site to Intergraph Computer Systems. You use your service number for warranty or maintenance calls. Your Customer Personal Identification Number (CPIN). You get a CPIN the first time you call the Customer Response Center;...

  • Page 14: More Support Options

    Visit the Support pages on the World Wide Web at http://www.intergraph.com/ics. For hardware support questions in the United States, call 1-800-763-0242. For software support questions in the United States, call 1-800-345-4856. Outside the United States, contact your local Intergraph Computer Systems subsidiary or distributor.

  • Page 15: Setting Up The Hardware

    Setting Up the Hardware Follow the instructions in this chapter to set up the hardware for your TD-260. Unpacking the System ......................2 Placing System Components ....................2 Connecting Peripheral Cables ....................3 Identifying Expansion Slots ..................... 5 Connecting to AC Power ......................5 Starting the System........................

  • Page 16: Unpacking The System

    Remove everything from the shipping cartons, and then look for the following items: A monitor with video cable, power cord, and documentation (if purchased from Intergraph Computer Systems) The system’s base unit and power cord The system’s keyboard and mouse...

  • Page 17: Connecting Peripheral Cables

    CAUTION If you do not use cables supplied by Intergraph Computer Systems, ensure the cables you use are shielded to prevent excessive electromagnetic interference (EMI). Cables supplied by Intergraph Computer Systems are designed to reduce the amount of EMI produced by the system.
  • Page 18 NOTE When looking at the back of a desktop TD-260, the AC connector is to the left and the expansion slots are to the right. AC Power Connector AC Voltage Switch R: Mouse L: Keyboard AC Breaker Switch Parallel (LPT) Serial (COM) Video (Typical) Speaker...

  • Page 19: Identifying Expansion Slots

    Expansion cards are installed in the Accelerated Graphics Port (AGP), Peripheral Component Interconnect (PCI) and Industry Standard Architecture (ISA) expansion slots in the base unit. If you purchased any expansion cards from Intergraph Computer Systems, they are installed in the appropriate expansion slots.
  • Page 20 To turn on power to the system, switch the power breaker on the back panel of computer to the on position (signified by the – symbol), and then press the power buttons on the base unit and the monitor. CD-ROM Drive Floppy Disk Drive...

  • Page 21: What's Next

    The system starts, and boots to a Setup screen or logon dialog for the operating system. If you are starting the system for the first time, an End-User License Agreement (EULA) displays during the Setup process. What’s Next? See Chapter 2, “Setting Up the Software,” for instructions on setting up the operating system and associated system software.

  • Page 23: Setting Up The Software

    Setting Up the Software Follow the instructions in this chapter to set up the operating system and associated system software on your TD-260. Preparing for Operating System Setup ..................10 Going Through Operating System Setup..................12 Finishing System Setup......................12 Creating a Repair Disk....................13 Creating System Software Backup Diskettes...............13 What’s Next?...........................14...

  • Page 24: Preparing For Operating System Setup

    Help for more information on these tools. The operating system and associated system software is pre-installed on the system’s primary hard disk drive. Intergraph Computer Systems installed the following system software: Driver software for the mouse Driver software for the installed video display adapter...
  • Page 25 A username for setting up a user account: If the system is connected to a network, get and record the following information from your network administrator: Computer name for your system: Workgroup name (if the system will be part of a workgroup): Domain name (if the system will be part of a Windows NT domain): If the system is connected to a network that uses the Transmission Control Protocol/Internet...

  • Page 26: Going Through Operating System Setup

    Going Through Operating System Setup The first time you start the system, operating system Setup begins. Early in the Setup process, an End-User License Agreement displays. After reviewing and accepting the terms of the agreement, follow the instructions to continue Setup. As you go through Setup, accept the default settings except as noted in the following text.

  • Page 27: Creating A Repair Disk

    Create a repair disk for the operating system. Create backup diskettes of device driver software and other system software products. Learn about Intergraph Computer Systems customer support. You should take advantage of the tools provided by InterSite Welcome to ensure that your system is fully ready for use.

  • Page 28: What's Next

    See Version Manager Help for information on creating system software backup diskettes. Visit the Intergraph Computer Systems site on the World Wide Web and vendor bulletin boards for new and updated drivers.

  • Page 29: Configuring The System

    Configuring the System Follow the instructions in this chapter to configure your TD-260 for use. Configuring the Video Display ....................16 Correcting Video Display Problems................17 Configuring Mouse Operation....................18 Configuring Networking......................18 Configuring a CD-Recorder Drive ...................19 Configuring a DVD-ROM Drive....................19 Configuring a Modem......................19 Configuring the Audio Card ....................19 Configuring a PC Card Adapter....................20 Configuring a Tape Drive ......................20...

  • Page 30: Configuring The Video Display

    Configuring the Video Display Your system shipped with the video display driver set to display a resolution of 1024 x 768. If you want to change the video display to another resolution, be sure your monitor can support the desired resolution. To change the video display resolution: 1.

  • Page 31: Correcting Video Display Problems

    See the documentation and files accompanying the installed video adapter and README driver for detailed configuration instructions. For information on using the Display Properties or Display Settings dialog, see the operating system documentation and Help. Correcting Video Display Problems If the system’s video display is black, not synchronized, or distorted after you restart the system, you may have a video configuration problem.

  • Page 32: Configuring Mouse Operation

    A graphics resolution and color depth has been selected that exceeds installed display memory. Restart the system in VGA mode, then open Display in the Control Panel to reinstall and configure the display driver as described in the video display adapter documentation delivered with the system.

  • Page 33: Configuring A Cd-Recorder Drive

    Configuring a CD-Recorder Drive If you purchased a CD-Recorder (CD-R) drive with your system, it was installed before shipment. If you purchased the CD-R drive in place of the standard CD-ROM drive, the driver software enabling it to be used as a standard CD-ROM drive was installed before shipment. To use the CD-R drive to record CDs, you may have to install the CD-R driver software and any associated application software programs.

  • Page 34: Configuring A Pc Card Adapter

    Configuring a PC Card Adapter If you purchased a PC Card adapter with your system, it was installed before shipment. To use the PC Card adapter, you may have to install the driver software and any associated application software programs. Depending on your system’s configuration, you may have to reserve an interrupt request (IRQ) for a PC Card device inserted in the PC Card adapter.

  • Page 35: Updating The Operating System

    Service Packs from Microsoft’s World Wide Web and FTP sites free of charge. CAUTION If Intergraph provides a Service Pack through the IBBS or with a product or system, it has been certified against Intergraph hardware as described in the announcement of its availability. If you obtain a Service Pack from any other source, be aware that it may not be certified against your Intergraph hardware.
  • Page 36 Intergraph Computer Systems World Wide Web site and from the Intergraph Bulletin Board Service (IBBS). See the Preface of this document for details. To update the system’s BIOS: 1. Record the BIOS parameter settings for your system. To do this, restart the system, and press during boot to run BIOS Setup.

  • Page 37: What's Next

    What’s Next? See Chapter 4, “Operating Notes,” to learn things you may need to know when operating the system. See Chapter 5, “Reinstalling System Software,” if you need to reinstall the operating system and associated system software. See Chapter 6, “Expanding the System,” for information on expanding the capabilities of the system.

  • Page 39: Operating Notes

    Operating Notes Use the information in this chapter when operating your TD-260. Observing Operating Precautions................... 26 Using the Keyboard ....................... 26 Using the Mouse........................27 Using the Floppy Disk Drive....................28 Using the CD-ROM Drive ..................... 28 Starting and Shutting Down the System................. 29 Starting MS-DOS from the Startup Menu (Windows 95 or Windows 98).......

  • Page 40: Observing Operating Precautions

    Observing Operating Precautions Observe the following precautions when operating the system: When restarting the system, use the operating system controls instead of turning the power switch off and on. Use the power switch only when instructed, or as the last alternative for restarting the system.

  • Page 41: Using The Mouse

    Function Used with another key for application-specific functions. Deletes characters. DELETE You can use the Windows Logo keys in combination with other keys to perform certain operating system functions, as follows: Windows Logo Key Combination Action Windows Logo + Display a pop-up menu for the selected object Windows Logo + Activate the next button on the taskbar Windows Logo +...

  • Page 42: Using The Floppy Disk Drive

    NOTE The double-click speed is timed. If you double-click too slowly, the system responds as if you clicked twice. You can adjust the double-click speed using the operating system’s Mouse application. To use the mouse, make sure it is properly connected to the system. Place the mouse on a clean, flat surface, such as a desktop or a mouse pad.

  • Page 43: Starting And Shutting Down The System

    To use the CD-ROM drive: To insert a disc into a tray-load CD-ROM drive, press the eject button to extend the tray. Place the disc, printed side up, in the tray and press the eject button to load the disc. To insert a disc into a slot-load CD-ROM drive, insert the disc, printed side up, into the slot.

  • Page 44: Starting Ms-Dos From The Startup Menu (Windows 95 Or Windows 98)

    2. Perform one of the following steps, as appropriate: To log off the operating system, select the “close all programs” option (if given), and then select OK. To restart the system, select the restart option, and then select OK. To shut down the system, select the shutdown option, and then select OK. After shutting down or logging off the operating system, you can turn off the power to the base unit and monitor.

  • Page 45: Using Intersite Programs (Windows Nt)

    Using InterSite Programs (Windows NT) TD-260 systems running Windows NT ship with the following InterSite programs: InterSite Welcome provides support information, tells you how to create Emergency Repair or Startup disks, and helps you connect to the InterSite Manager to access the full line of InterSite products.

  • Page 46: Ensuring Pc Card Support And Operation

    Ensuring PC Card Support and Operation The optional PC Card adapter is used with devices based on standards developed by the Personal Computer Memory Card International Association (PCMCIA). Windows NT, Windows 95, and Windows 98 provide support for PC Card devices. To ensure proper operation of PC Card devices with a system running Windows NT, make sure the device drivers that control PC Card device operation are set to start correctly.

  • Page 47: Reinstalling System Software

    Reinstalling System Software Follow the instructions in this chapter if you have to reinstall the operating system and associated system software on your TD-260. Before You Begin ........................34 System Software Products ...................... 35 Windows NT Workstation 4.0....................36 Enabling Bus Mastering for IDE/ATAPI Devices............. 37 Windows 95 and Windows 98....................

  • Page 48: Before You Begin

    CD-ROM. Driver software is routinely improved and updated. Use InterSite Version Manager, or visit the Intergraph Computer Systems site on the World Wide Web and vendor bulletin boards for new and updated drivers. Review the Late-Breaking News document delivered with your system for any additional tasks...

  • Page 49: System Software Products

    TD-260 systems. Names of system software products created by the InterSite Version Manager or available from the Intergraph Computer Systems online services are listed. Products available for your system, but not listed here, are available on the operating system software CD-ROM or are delivered with an expansion card or additional peripheral device.

  • Page 50: Windows Nt Workstation 4.0

    Windows NT Workstation 4.0 Depending on your system’s configuration, you will need some or all of the following system software during the installation process: Video display adapter driver Network adapter driver Audio card driver Mouse driver SCSI adapter driver QFE update software Follow the instructions in the Microsoft documentation to install Windows NT.

  • Page 51: Enabling Bus Mastering For Ide/Atapi Devices

    Enabling Bus Mastering for IDE/ATAPI Devices Your system may have shipped with bus mastering for IDE/ATAPI devices enabled. If you reinstall Windows NT 4.0 and Service Pack 3 software, you may want to re-enable IDE/ATAPI bus mastering. NOTE On systems that ship with a TR-4 tape drive, a Zip drive, or a CD-Recorder drive, bus mastering is not enabled.
  • Page 52 To install Windows 95 or Windows 98: 1. Insert the appropriate Windows boot diskette in the system’s floppy disk drive. 2. Insert the appropriate Windows CD-ROM in the system’s CD-ROM drive. 3. Start (or restart) the system. 4. At the Windows Startup Menu, select the option to install Windows. If you are installing Windows 95 or Windows 98 on a system on which another operating system or a previous version of the operating system exists, you may have to partition and format the system’s hard disk before installing Windows.

  • Page 53: Installing Windows With An Installed Network Adapter

    Install drivers or other system software from any backup diskettes. System software delivered on backup diskette is usually more current than system software on the operating system CD-ROM. Alternatively, you can install the drivers or other system software from the Windows CD-ROM if you don’t have them on diskette. Perform any additional installation and configuration tasks described in the Late-Breaking News document delivered with your system.

  • Page 54: Updating The Operating System

    CAUTION If Intergraph provides a Service Pack or Service Release through the IBBS or with a product or system, it has been certified against Intergraph hardware as described in the announcement of its availability. If you obtain a Service Pack or Service Release from any other source, be...

  • Page 55: Expanding The System

    Expanding the System Use the information in this chapter to expand your TD-260. Adding External Peripheral Devices ..................42 Opening the Base Unit......................42 TD-260 Mini-Tower....................43 TD-260 Desktop....................... 44 Taking Antistatic Precautions ....................44 Adding Expansion Cards ....................... 45 Installing Expansion Cards ..................

  • Page 56: Adding External Peripheral Devices

    CAUTION If you do not use cables supplied by Intergraph Computer Systems, use shielded cables to prevent excessive electromagnetic interference (EMI). Cables supplied by Intergraph Computer Systems are designed to reduce the amount of EMI produced by the system.

  • Page 57: Td-260 Mini-Tower

    TD-260 Mini-Tower To remove the side panel: 1. Remove the two screws that fasten the side panel to the back of the base unit. 2. Pull the side panel back and then up to remove, as shown in the following figure. To remove the front panel: 1.

  • Page 58: Td-260 Desktop

    TD-260 Desktop To remove the top cover: 1. Press the two push buttons on both sides near the front as shown in the following figure. 2. Push the cover back and then up to remove it as shown in the following figure. CAUTION Place the power and data cables to the side of the fan bracket.

  • Page 59: Adding Expansion Cards

    Adding Expansion Cards You can add Accelerated Graphics Port (AGP), Peripheral Component Interconnect (PCI), Plug and Play (PnP), and Industry Standard Architecture (ISA) expansion cards by installing them in the system’s expansion slots. The following figure shows the location of the expansion slots on the system board.

  • Page 60: Configuring Expansion Cards

    NOTE System memory modules available from Intergraph have been certified for use with Intergraph computers at extremes of temperature and system load to ensure reliable performance. System memory modules available from other vendors may function improperly or unreliably in your Intergraph computer.
  • Page 61 The following are common memory configurations: Bank 0 Bank 1 Bank 2 Memory DIMMs DIMMs DIMMs 16 MB One 16 MB 32 MB One 16 MB One 16 MB One 32 MB 48 MB One 16 MB One 16 MB One 16 MB 64 MB One 64 MB...

  • Page 62: Adding Internal Peripheral Devices

    Adding Internal Peripheral Devices You can add internal IDE or EIDE peripheral devices by installing them in any available peripheral bays. The system has the following available peripheral bays: Two 5.25-inch x 1.6-inch external-access peripheral bays for devices accessible from outside the system.
  • Page 63 2. Remove the screw securing the drive-mounting bracket to the chassis, and remove the bracket from the chassis. 3. Remove the four screws securing the devices to the drive-mounting bracket, and remove the devices. 4. Install the new or additional devices to the drive-mounting bracket. 5.

  • Page 65: Using System Resources

    The chapter covers specific Peripheral Component Interconnect (PCI) and Industry Standard Architecture (ISA) devices offered by Intergraph Computer Systems as system options. Intergraph Computer Systems has determined that the devices discussed in this chapter require specific resource settings to ensure proper system operation.

  • Page 66: System Resources

    System Resources The following sections list system resources. See the vendor documentation delivered with an expansion card or a peripheral device for instructions on how to use these resources. ISA Bus Interrupt Request (IRQ) Assignments System Resource System Resource Reserved (system timer) Real-time clock Reserved (keyboard) Reserved...

  • Page 67: Using System Resources

    Address (hex) Description 0120 - 013F PCI-to-USB controller 0170 - 0177 Standard IDE/ESDI hard disk controller 01F0 - 01F7 Primary IDE controller 0201 - 0201 MIDI/game port 0220 - 022F Sound processor 0274 - 0277 ID data read-only port (ISA Plug and Play) 02F8 - 02FF Serial port (COM2) 0330 - 0331...
  • Page 68 To disable an unused system port: 1. Restart the system and start the BIOS Setup program. 2. On the Advanced/Peripheral Configuration screen, select the port you want to disable. 3. Change the value of the setting to Disabled. 4. Save the changes and exit from the BIOS Setup program. The following expansion cards require specific system resource settings, as noted: Expansion card Resources required...

  • Page 69: System Board Overview

    System Board Overview This chapter provides a detailed overview of the system board for your TD-260. System Board Standard Features.................... 56 System Board Map......................... 58 Operating Environment ......................60...

  • Page 70: System Board Standard Features

    System Board Standard Features The TD-260 system board has the following features: Intel Slot 1 Pentium II processor support Supports 233 MHz, 266 MHz, 300 MHz , 333 MHz processors (66 MHz FSB) and 350MHz, 400MHz, and 450 MHz processors (100 MHz FSB) Core/Bus ratios are x2, x2.5, x3, x3.5, x4, x4.5, x5, x5.5, x6, and higher Switching voltage regulator On-board switching mode DC-DC step-down regulator...
  • Page 71 Basic input/output system (BIOS) Processor Plug and Play (user does not need to set jumper/DIP switch to select the processor speed) Phoenix NU BIOS, Windows 95 Plug and Play support and 2 MB Flash ROM for easy BIOS upgrade Other Features LAN wake-up Internal modem wake-up AC power loss restoration...

  • Page 72: System Board Map

    System Board Map The following illustrates the TD-260 system board. Table keys are highlighted in black circles.
  • Page 73 DIP Switches Name Switch CONFIG (J11) Processor core frequency header setting (2-pin) IOD (J26) Depth of In-Order Queue setting (2-pin) PWLC (J36) Power loss condition selection (3-pin) Expansion Slots Name Slot DIMM sockets 168-pin, 64-bit DIMM sockets ISA slots 98-pin, 16-bit ISA bus expansion slots PCI slots 120-pin, 32-bit PCI bus expansion slots AGP slot...

  • Page 74: Operating Environment

    Name Connector KEYLOCK (J29) Reserved for key lock switch connector (2-pin) PWR_SW(J42) Power switch for desktop (2-pin) Operating Environment Select the operating environment for your system, considering the following information about the system board. Note the following: Keep the system board free from dust, moisture, and direct sunlight. Keep the system board free from liquid and corrosive chemicals.

  • Page 75: System Board Upgrades

    System Board Upgrades This chapter provides information you will need to upgrade the system board and associated components in your TD-260. Removing the System Board ....................62 Removing or Replacing a Processor ..................63 Intel Pentium II Processor ..................63 Intel Celeron Processor ....................65 Jumper Settings ........................66 Processor Core Frequency Selection/Clear CMOS Jumper (J11) .........66 In-Order Queue Depth Selection Jumper (J26) ............68...

  • Page 76: Removing The System Board

    Removing the System Board If you need to remove the system board from the computer, follow these instructions to do so. WARNING Unplug the power supply when adding or removing a processor, any expansion cards, or other system components. Failure to do so may cause severe damage to the system board and its components.

  • Page 77: Removing Or Replacing A Processor

    Removing or Replacing a Processor If you need to remove or replace the processor (or CPU, the central processing unit), follow these instructions to do so. WARNING Unplug the power supply when adding or removing a processor, any expansion cards, or other system components.
  • Page 78 4. Remove the heat sink support bar. 5. Press the two locking tabs inward and lift the processor from the processor socket. 6. Press and lift the “B” part of the push clamp to loosen the heat sink from the processor. 7.

  • Page 79: Intel Celeron Processor

    4. Press the two locking tabs outward. 5. Fasten the heat sink support bar until it clicks into place. See the previous figure. 6. Connect the processor cooling fan power cable. See the previous figure. CAUTION Install the new processor with the cooling fan. Without a fan circulating air on the processor and its heat sinks, the processor and/or the heat sinks can overheat and cause damage to both the processor and the system board.

  • Page 80: Jumper Settings

    Jumper Settings Jumpers connectors are located on the system board for processor core frequency selection, clearing CMOS, setting the depth of the In-Order Queue, and setting the power loss condition. Processor Core Frequency Selection/Clear CMOS Jumper (J11) Jumper 11 You can use jumper connector 11 (J11) to set the processor speed and to clear the CMOS. The Processor Plug and Play BIOS is used for setting the Core/Bus (Fraction) ratio of the processor.
  • Page 81 4. Highlight the Processor speed select field and press . The window ENTER displaying the processor speed supported by the CPU displays. 5. Highlight the correct core frequency. The value displays the core frequency for the 66 MHz Front Side Bus (FSB) on the left and the core frequency for the 100 MHz FSB on the right.

  • Page 82: In-Order Queue Depth Selection Jumper (J26)

    In-Order Queue Depth Selection Jumper (J26) You can use jumper connector 26 (J26) to set the depth of the In-Order Queue. Jumper 26 Jumper 26 In Order Queue Depth Open 4 (Default) Closed Power Loss Condition Selection Jumper (J36) When power returns after a power outage, jumper connector 36 (J36) selects whether the system will be restored to a full-on condition (power loss condition disabled) or to the previous state before power failure (power loss condition enabled).

  • Page 83: Main Memory

    Main Memory The system board supports main memory composed of dual inline memory modules (DIMMs). Each DIMM socket is reliable for 32, 64, or 128 MB of SDRAM. Total system memory is expandable from 32 MB to a maximum of 384 MB. DIMMs can be inserted into DIMM sockets without regard for order of insertion;...
  • Page 84 2. Remove the screw securing the bracket to the slot you want to use. Keep the screw and the bracket for future use. 3. Align the card with the slot and insert the card firmly into the slot. 4. Secure the card to the chassis with the screw you removed previously. 5.

  • Page 85: Connectors And Ports

    Connectors and Ports This section describes the system board connectors and ports. Primary/Secondary IDE connectors These connectors use the provided IDE hard disk ribbon cable (40-pin) for use with hard disk or CD-ROM drives. When installing a hard disk drive, connect the IDE ribbon cable to the IDE connector on the system board, and to the IDE connector on the drive.

  • Page 86: Cabinet-Mounted Speaker Connector

    Cabinet-Mounted Speaker Connector The 2-pin speaker cable connects to the speaker connector on the system board. Speaker Connector ATX System Board Power Supply Connector The 20-pin ATX power supply cable connects to the ATX power supply connector on the system board. The plug from the power supply only connects one way. ATX Power Supply Connector...

  • Page 87: Fan Power Connectors (J13, J20, J28)

    Fan Power Connectors (J13, J20, J28) These 3-pin connectors provide power to the system’s cooling fans. Power supply fan (J20) CPU fan (J13) System fan (J28) Front Panel Connector (J30 mini-tower, J42 desktop) The power switch, reset switch, IrDA connector, sleep switch, and HDD LED for the TD-260 mini-tower are all connected to the 16-pin front panel connector block J30.

  • Page 88: Dma Connector For Pci Audio Card (J34)

    DMA Connector for PCI Audio Card (J34) This connector is a distributed DMA connector for a PCI sound card that uses this feature. DMA connector Modem Card Connector (J33) and LAN Card Connector (J35) Connector J33 is for a modem that supports the modem wake-up function. Connector J35 is for a LAN network card that supports the wake-on-LAN function.

  • Page 89: Ps/2 Ports

    PS/2 Ports These ports support connection of a PS/2 keyboard and a PS/2 mouse. The ports are not interchangeable, and are labeled accordingly. T: Mouse B: Keyboard USB Ports These two ports support connection of Universal Serial Bus (USB) devices. Serial Ports These two ports support connection of serial communication devices, such as a mouse, an external modem, or a serial printer.

  • Page 90: Game/Midi Port

    Game/MIDI Port This port supports connection of an analog joystick or an external Musical Instrument Digital Interface (MIDI) device. For more information, see Chapter 10, “Audio Card.” Sound I/O Ports Three or four ports on the installed audio card support connection of audio devices. For more information, see Chapter 10, “Audio Card.”...

  • Page 91: 10 Audio Card

    10 Audio Card The TD-260 ships with an ISA audio card installed in an ISA slot. Audio Card Overview ......................78 Audio Card Connectors and Ports ....................78...

  • Page 92: Audio Card Overview

    Audio Card Overview The installed ISA audio card has the following features. ESS 1869 controller 16-bit stereo 20-voice ESFM music synthesizer Plug and Play compatibility Record, compress, and play back voice, sound, and music Programmable sample rates (4 KHz ~ 44.1 KHz) Full-duplex operation ADPCM, A-law, or law digital audio compression and decompression 7-channel mixer software program...
  • Page 93 CD Connector You can connect an internal CD-ROM drive to this 1 x 4 pin connector. The connector is compatible with most cables supplied with ATAPI CD-ROM drives designed to connect to audio add-in cards. TV/Aux-In/MPEG Audio Connectors You can connect left and right channel signals of an internal audio device to these connectors. An audio-in signal interface of this type is necessary for applications such as TV tuners and MPEG playback boards.

  • Page 95: 11 Bios Setup

    11 BIOS Setup This chapter provides information on using the system’s BIOS Setup program. Using BIOS Setup........................82 Entering BIOS Setup .......................82 Navigating BIOS Setup......................83 BIOS Setup Menus ........................83 Main Menu ........................84 Advanced Menu ......................86 Security Menu......................88 Power Menu.......................89 Boot Menu .........................90 Exit Menu........................92...

  • Page 96: Using Bios Setup

    Using BIOS Setup The system’s BIOS Setup program allows you to configure your computer hardware, and to set security and power-saving options. The settings you choose are stored in battery-maintained memory (CMOS RAM) that saves the information even when the computer's power is turned off.

  • Page 97: Navigating Bios Setup

    Navigating BIOS Setup To navigate the BIOS Setup menu or change BIOS settings, use keyboard keys as follows: Function Display the General Help window. Exit the current menu. Select the next menu. Move the cursor up and down between fields Move the cursor forward through the cells for a highlighted field.

  • Page 98: Main Menu

    Main Menu When you first enter BIOS Setup, the Main menu appears. You can also select Main from the menu bar to display the Main menu. Phoenix BIOS Setup Utility Main Advanced Security Power Boot Exit Item Specific Help System Time : [08:54:09] System Date: [02/05/1998]...

  • Page 99: Phoenix Bios Setup Utility

    Phoenix BIOS Setup Utility Main Primary Master [4335 MB] Item Specific Help Type : [Auto] User = you enter Maximum Capacity: 4335MB parameters of hard-disk drive installed at this Multi-Sector Transfers: [16 Sectors]] connection. LBA Mode Control: [Enabled] Auto = auto types hard- 32 Bit I/O: [Disabled] disk drive installed here.

  • Page 100: Advanced Menu

    CPU Type / CPU Speed Displays the processor type and speed. System Memory Displays the amount of conventional memory detected by your computer during startup. Extended Memory Displays the amount of extended memory detected by the computer during startup. Advanced Menu Select Advanced from the menu bar to display the Advanced menu.
  • Page 101 Reset Configuration Data Select Yes to clear system configuration data. Large Disk Access Mode Enables the computer’s operating system to work with drives larger than 540 MB. Select DOS for Microsoft operating systems, or select Other for any other operating system. Keyboard Features Select keyboard options, such as the power-on state for Num Lock key, key click, keyboard auto-repeat rate, keyboard auto-repeat delay, and more.

  • Page 102: Security Menu

    Security Menu Select Security from the menu bar to display the Security menu. Phoenix BIOS Setup Utility Main Advanced Security Power Boot Exit Item Specific Help Set User Password [Enter] Set Password [Enter] User Password controls access to the system at Password on boot: [Enabled] boot.

  • Page 103: Power Menu

    5. Restart the system. To remove the password: 1. Turn off power to the system and open the computer cover. 2. Place a jumper on J11 on the system board. 3. Turn on power to the system. The BIOS Setup maintenance screen displays. 4.

  • Page 104: Boot Menu

    On PME This event causes a time reload or a wake-up from power-saving mode. Power Button Function Sets the use of the computer’s power button. When set to Delay 4-Seconds, you must press the power button and hold it for 4 seconds to turn off power to the computer; you can press and release the power button to enter suspend mode.
  • Page 105 Floppy Check Enables verification of floppy disk type on boot, and disables speed boot. Summary screen Enables or disables display of the system configuration when the system boots. Screen Logo Display Enables or disables display of the system’s logo when the system boots. QuickBoot Mode Enables or disables the system from skipping certain tests when the system boots.

  • Page 106: Exit Menu

    Exit Menu Select Exit from the menu bar to display the Exit menu. Phoenix BIOS Setup Utility Main Advanced Security Power Boot Exit Item Specific Help Exit Saving Cahnges Exit Discarding Changes Exit System Setup and Load Setup Defaults Save your changes to Discard Changes CMOS.
  • Page 107 Phone Mail Address Reason for Return NOTE All returned equipment MUST be shipped in original Intergraph packaging to obtain warranty service. WARNING Back up disk drives before returning equipment. Intergraph Computer Systems is not responsible for data lost in shipping or repair process.

  • Page 108: Warranty Procedure

    Warranty Procedure Some malfunctioning equipment cannot be repaired in the field, and you must return it to Intergraph for repair. Follow these steps to obtain a Returned Goods Authorization (RGA) log number and return the malfunctioning equipment. 1. Determine the serial number of the system. The serial number is located on the white bar code identification label on the back of the base unit.
  • Page 109 Repair Depot RGA No. _______________________ Intergraph Corporation 9805 Kellner Road Huntsville AL 35894 Repair Depot RGA No. _______________________ Intergraph Corporation 9805 Kellner Road Huntsville AL 35894 Repair Depot RGA No. _______________________ Intergraph Corporation 9805 Kellner Road Huntsville AL 35894...
