Opening the Lower 5.25-Inch Peripheral Bay

Unless you purchased your system with two 5.25-inch peripheral devices installed, the lower
5.25-inch external-access peripheral bay is covered by a plastic face plate and a metal blank.
Before you install a second 5.25-inch device, you must remove the plastic face plate and the
metal blank.
To remove the plastic face plate and the metal blank:
1. Remove the screws securing the CD-ROM drive to the chassis.
2. Gently slide the CD-ROM drive back into the base unit slightly (about 0.5 inches).
Optionally, you can disconnect the data, audio, and power cables from the CD-ROM
drive, and remove the drive from the base unit.

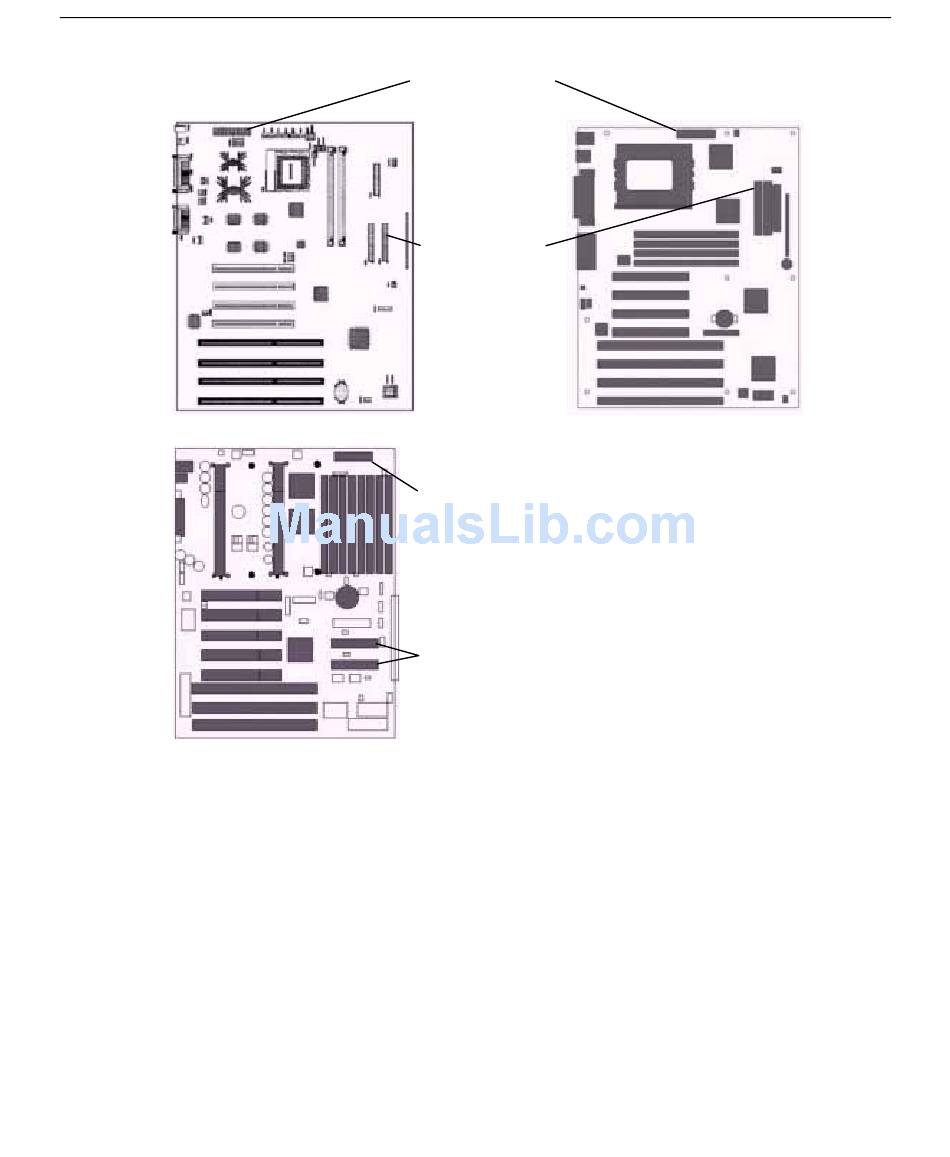

Power Connectors
TD-2x TD-220
IDE Connectors
TD-225
Power Connector
IDE Connectors
