To replace the CPU fan:
1. Insert the tabs on the fan bracket into the notches below the power supply, and slide the
fan bracket backward. See the previous figure.
2. Use the thumb screw to secure the fan bracket to the rear of the base unit. See the
previous figure.
3. If necessary, reconnect the fan power cable.
CAUTION
Place the power and data cables to the side of the fan bracket, as illustrated in the previous
figure. This prevents both the fan blades and the processor heat sinks from damaging the
cables.

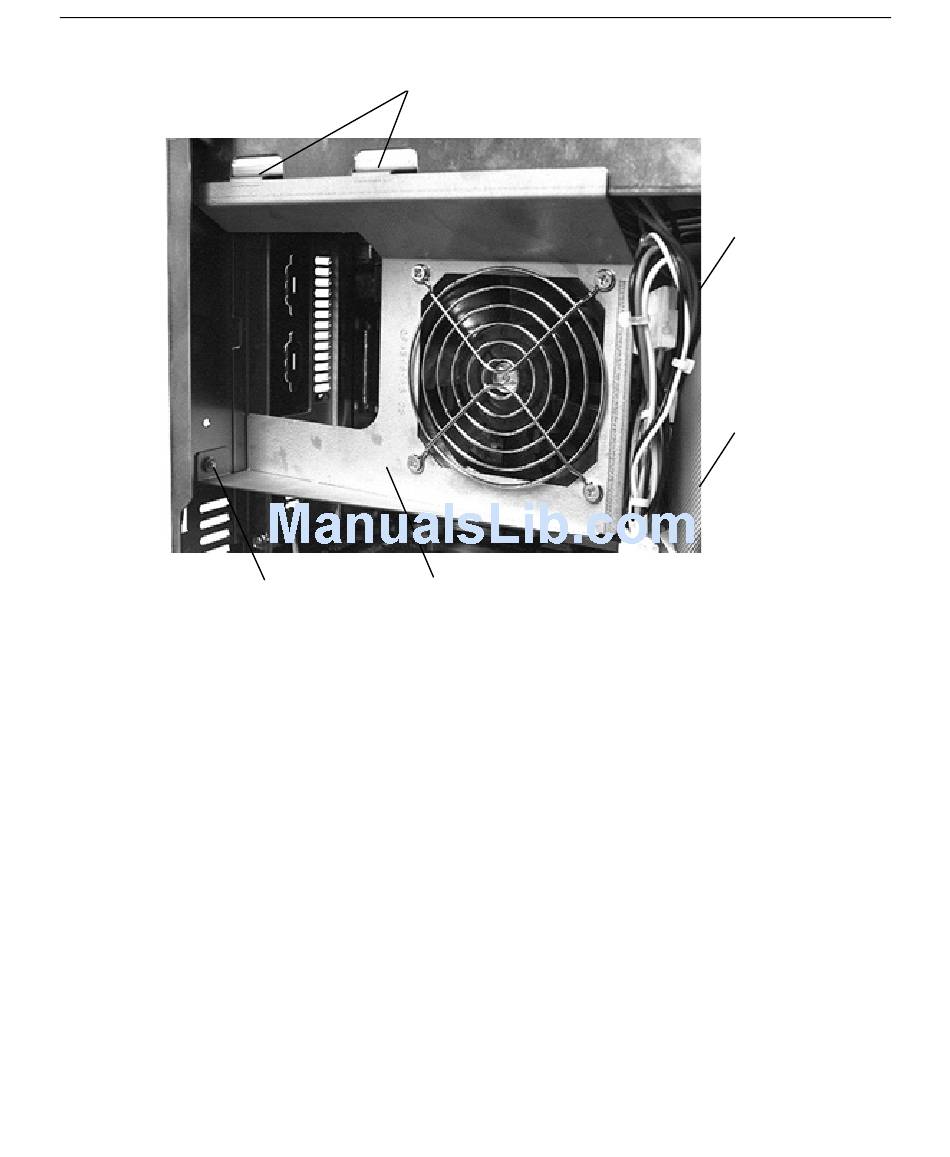

Bracket Tabs
Fan Bracket
Thumb Screw
57
Power Cable
Data Cable
