Installing Expansion Cards

Follow the steps below to install a new expansion card in an open expansion slot.
To install a new expansion card:
1. Remove the base unit cover as described earlier in "Opening the Base Unit."
2. If installing into a TD-225 system, remove the EMI shield as described earlier in
"Removing and Replacing the TD-225 EMI Shield," if necessary.
3. Remove the screw securing the blanking plate of an empty expansion slot, and remove
the blanking plate. See the following figure.
4. Insert the expansion card into the expansion slot, using firm and steady pressure. See
the following figure.
CAUTION Do not rock or tilt the expansion card. Doing so might damage the card, the slot, or both.

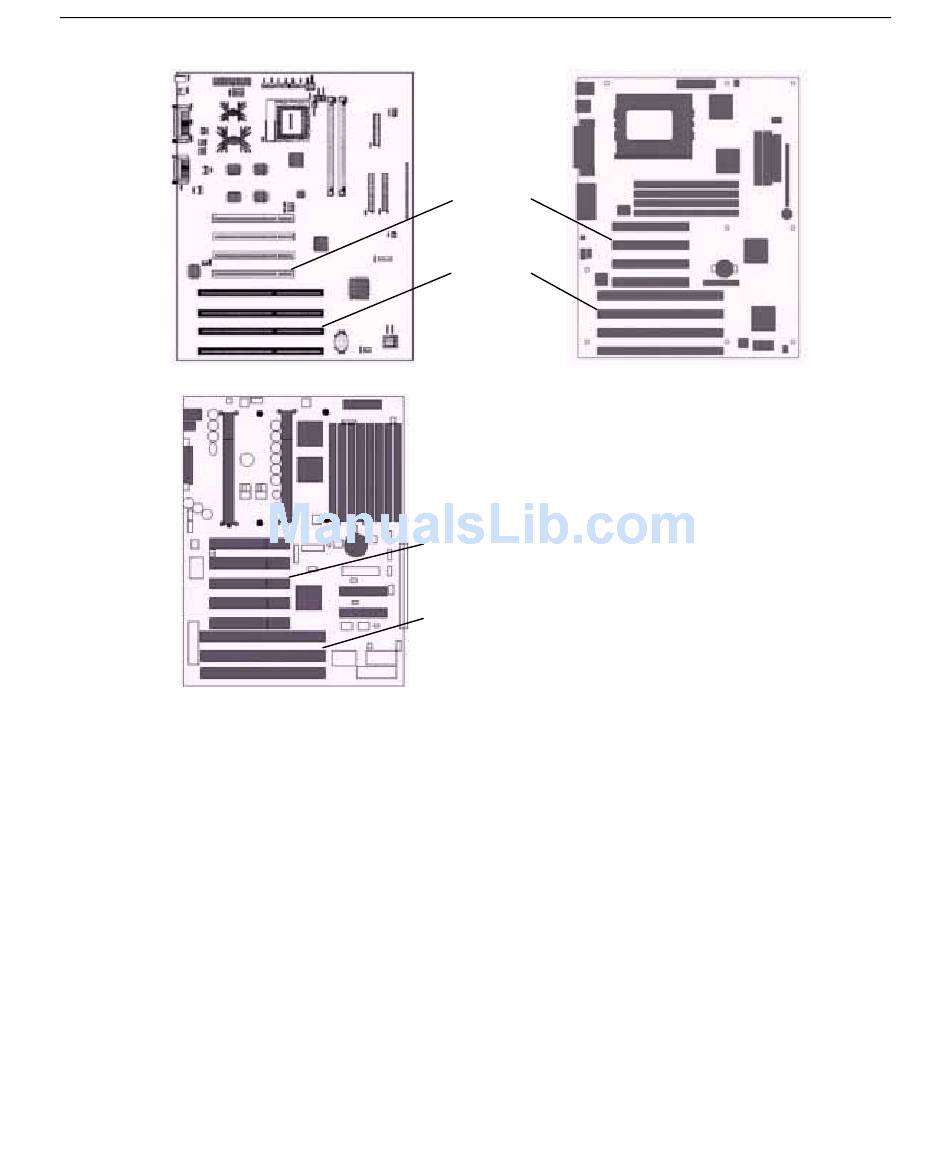

TD-2x TD-220
PCI Slots
ISA Slots
TD-225
PCI Slots
ISA Slots
