Disk Drive Section (MESAN52)
The disk drive section includes the disk drive cage, backplane, sensor boards and LED boards. This
assembly is always replaced as one unit.
To replace the disk drive section:
1.
Remove both side panels.
2.
Remove all the drives from the disk drive section. Note the original slot location for each drive.
The drives should be reinstalled in the same slot locations from which they were removed.
3.
Disconnect the two SCSI cables from the top of the disk drive section.
4.
Disconnect the four power cables attached to the disk drive section.
5.

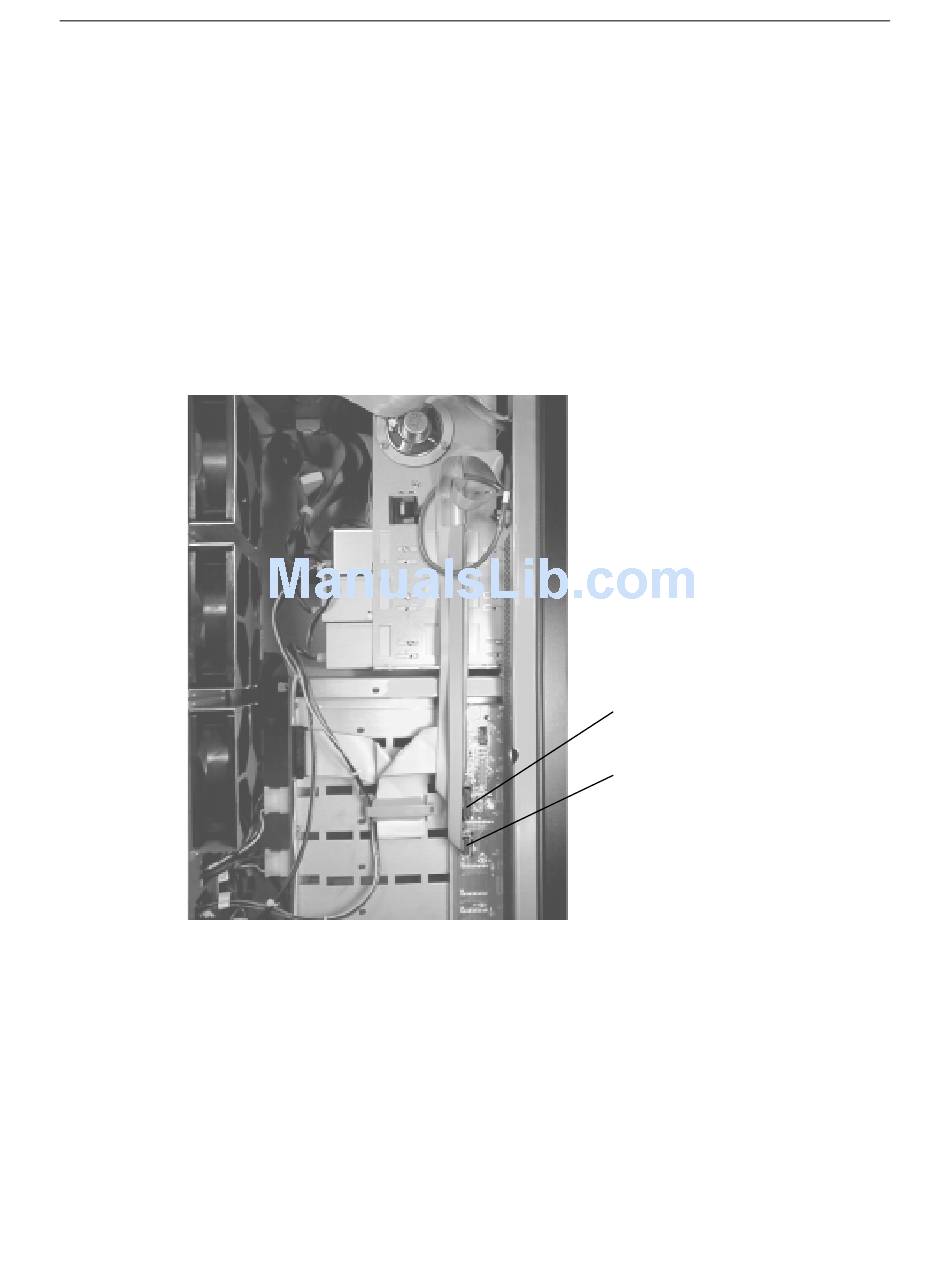

Disconnect the LCD and LED cables from the disk drive section on the left side of the unit.
LCD Cable
LED Cable
11
