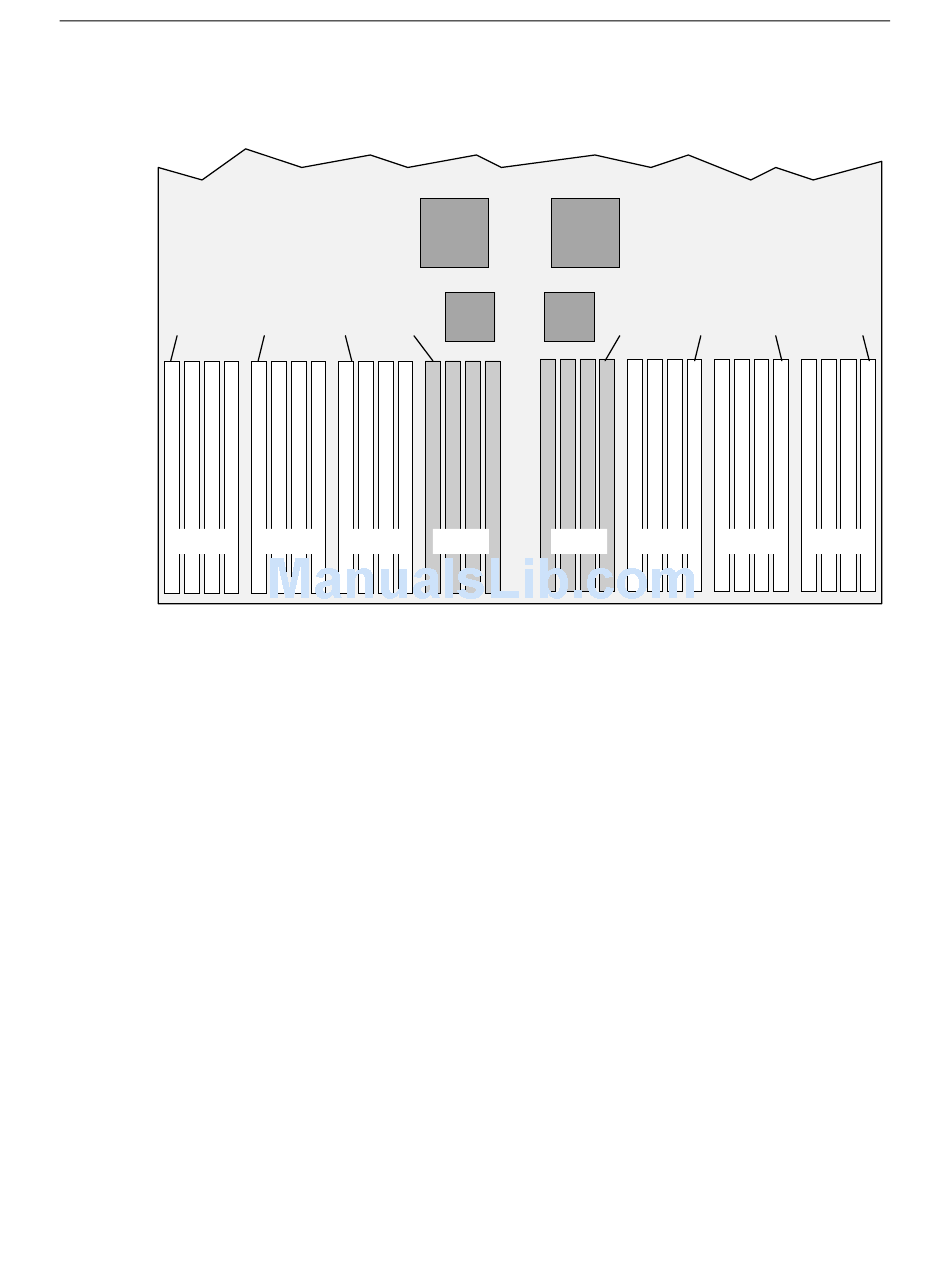

All SIMMs must be the same size and the banks must be filled sequentially. The following figure
shows the bank layout. Individual sockets are labeled J21 through J52 from left to right. Base memory
for InterServe 8000 systems is installed in sockets J35, J36, J39 and J40 of Bank 0.
J21
Bank 3
To avoid damaging the SIMMs, take the following precautions.
u
Do not bend, twist, drop, or otherwise handle the SIMMs carelessly.
u
Do not expose the SIMMs to moisture or extreme temperatures.
u
Do not remove the SIMMs from the antistatic bag until installation.
To install memory:
1. Remove the left side panel. The following figure shows the memory sockets on the processor
board.
J25 J29 J33
Bank 2 Bank 1
J40
Bank 0 Bank 0
J44 J48
Bank 2 Bank 3
Bank 1
J52
