26
4.

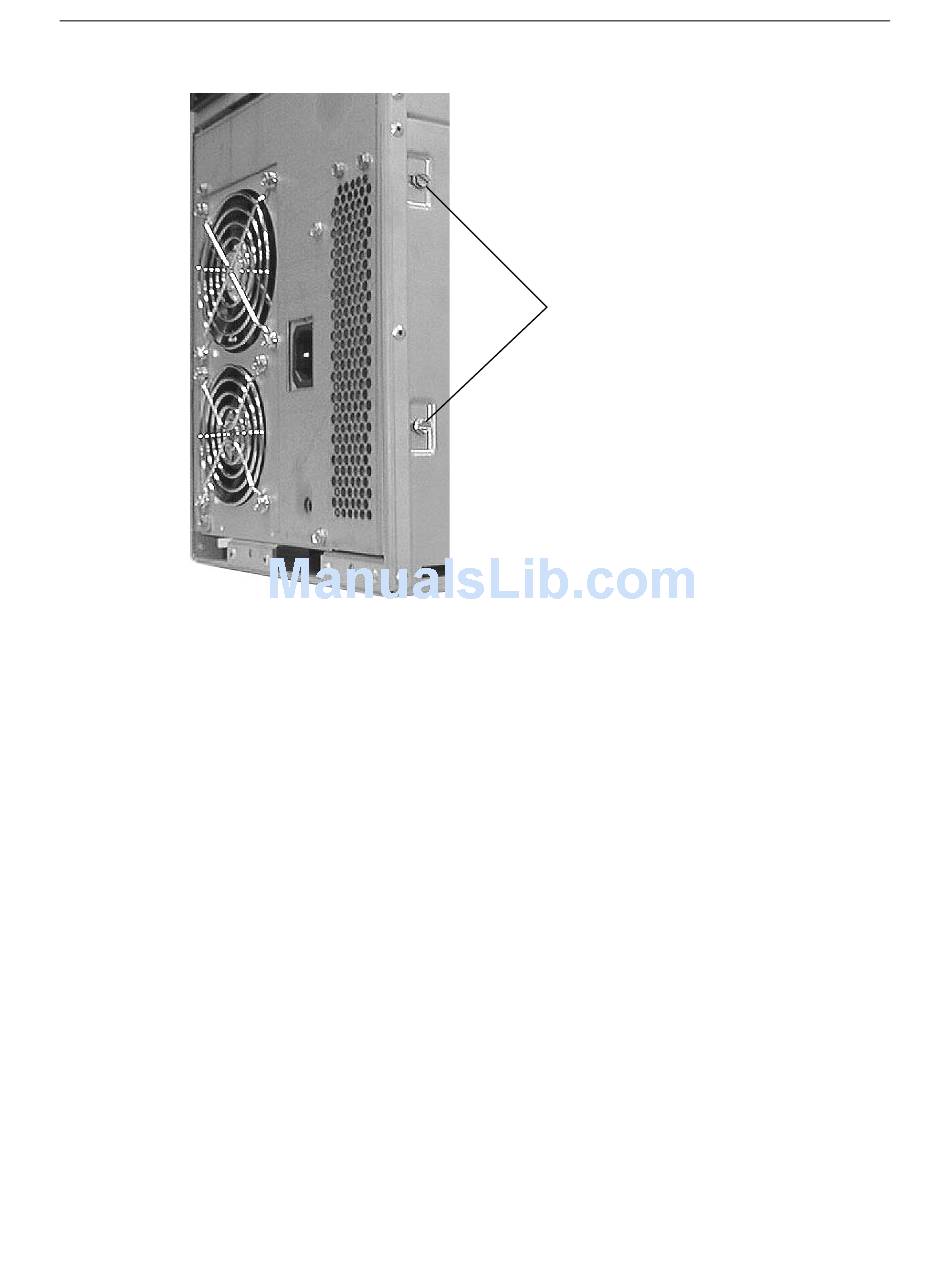

Remove the four screws that secure the power supply case to the base unit as shown below.
5.
Slide the case out of the base unit
6.
Remove the access panel located to the lower right of the power distribution board, on the left side
of the base unit.
7.
Disconnect the main power cable from the power distribution board.
8.
Disconnect the peripheral power cables from the CD-ROM drive, floppy drive, and disk drive
section. Disconnect the keyswitch cable from the top of the power distribution board on connector
(J1).
Screws
(Both sides)
