AC Section (MESAN49)
The AC section is used only in systems with dual 550 Watt power supplies.
To replace the AC section:
1.

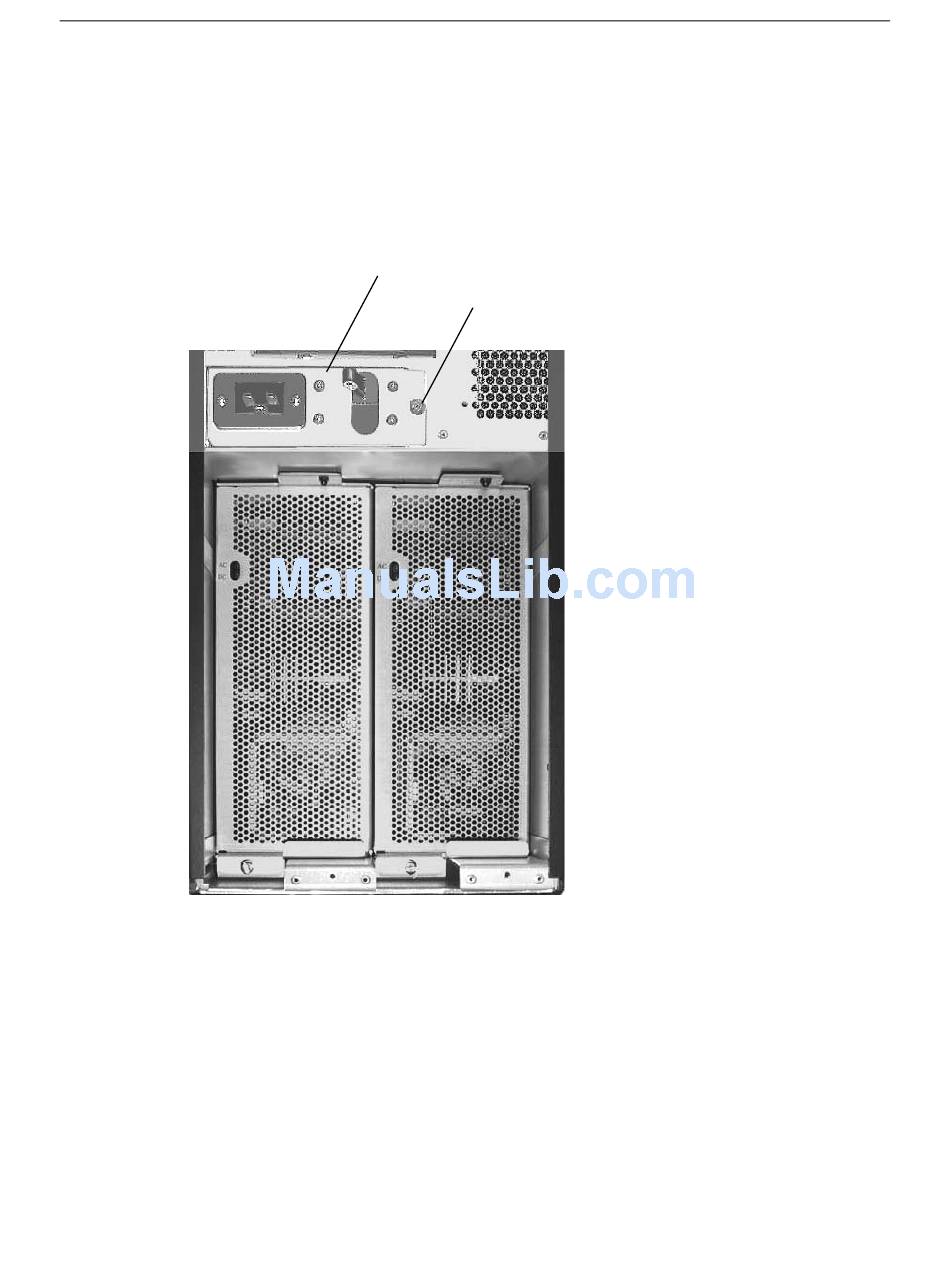

Turn OFF the circuit breaker, disconnect the power cord, and remove the screw from the AC
section, as shown. If the system is in a rack, do this step before extending the system from the
rack.
2.
If the system is in a rack, slide it out of the rack.
3.
Remove the right side panel.
AC Section
Screw
13
