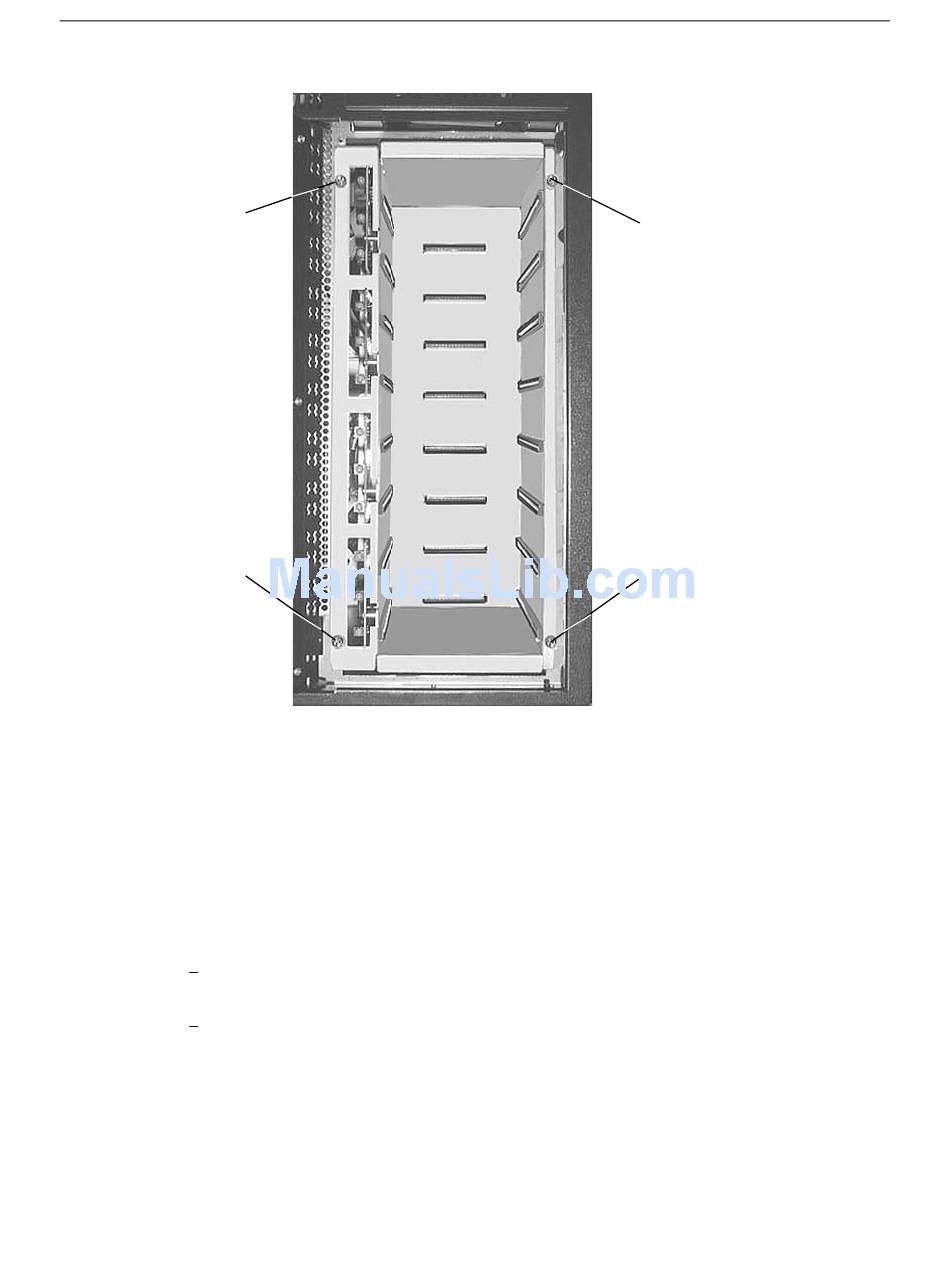

5. Remove and retain the screw from each corner of the disk drive section.
Screw
Screw
6. Slowly pull the disk drive section out of the base unit.
7. Verify that the jumper settings on the back of the replacement disk drive section match the one
being replaced.
NOTE If the system uses the AMI RAID controller, the jumper connectors JP2 and JP3 must not have any
jumpers installed. Non-RAID systems need jumpers installed to define SCSI ID and spin-up delay, as
described in Chapter 4.
8. Insert the new disk drive section and secure it with the screws removed in step 5.
9. Reattach the LED cable and the LCD cable to the disk drive section.
10. Reattach the SCSI and power cables to the backplane.
CH 0 on the RAID controller or UW SCSI controller must be attached to the CH 0 connector
on the disk section, and same for CH 1.
The order of the power cables is not critical.
11. Insert the disk drives into the system. The drives should be installed in the same slots from which
they were removed.
12. Replace the side panels.
13. Restart the system and ensure the LED for each drive lights and remains steady green. If not, refer
to the System Setup for status LED information.
Screw
Screw
