24
4.

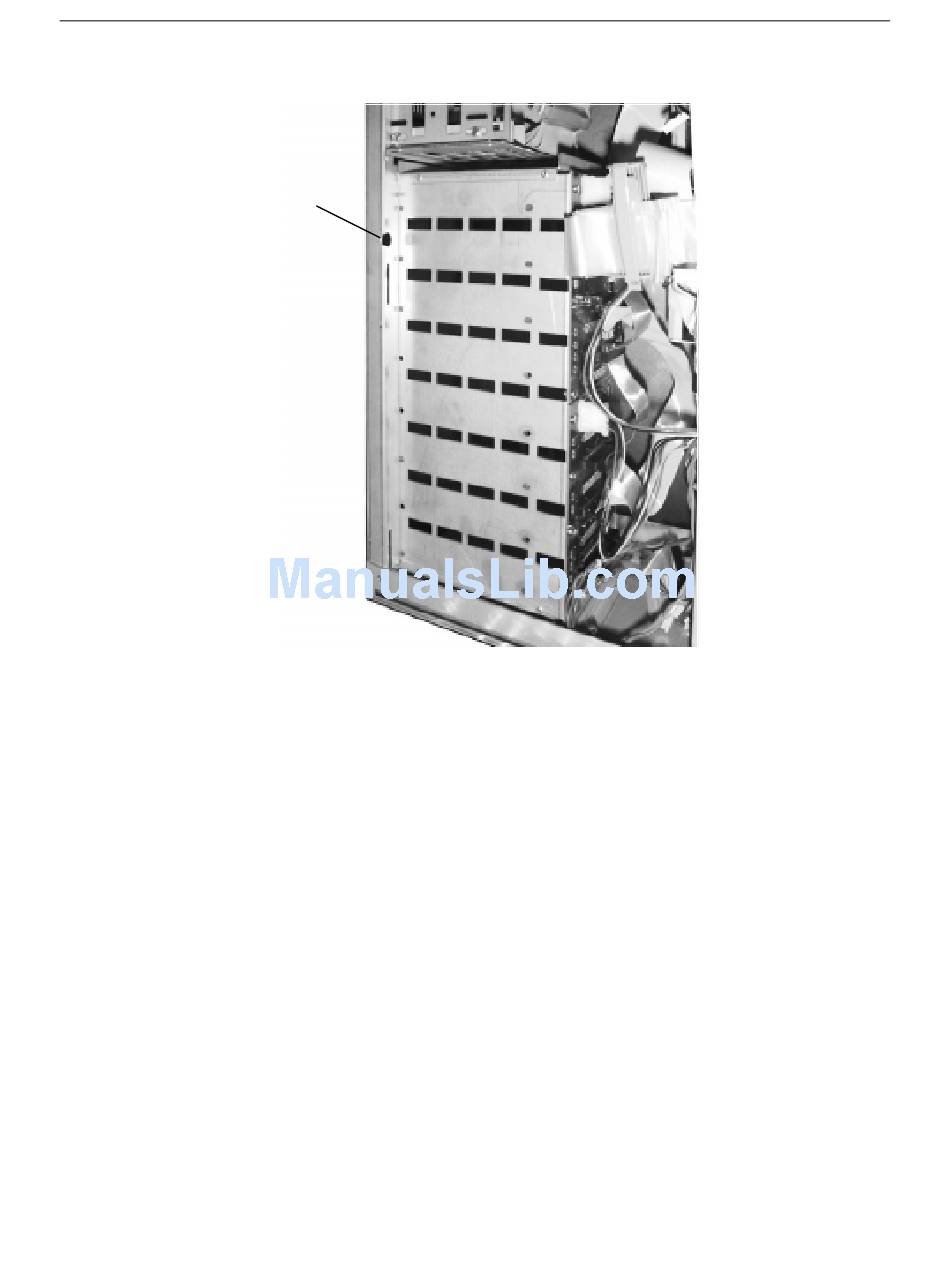

Remove two screws (one each side) securing front panel to the chassis.
Screw (Through
Access Hole)
5.
Grasp the bottom of the front panel and pull up and out to remove it from the system. The LCD
board is attached to the inside of the front panel.
6.
Disconnect the four cables attached to the LCD board. Note the location of each cable.
7.
Remove the seven screws securing the board to the front panel.
8.
Remove the plastic film covering the LCD screen of the new LCD board.
9.
Secure the new LCD board with the seven screws and reconnect the cables.
10. Replace the front panel.
11. Reposition and secure the floppy disk drive and lower drive tray.
12. Replace the side panels.
