Furuno FELCOM 12 Operator's Manual page 89

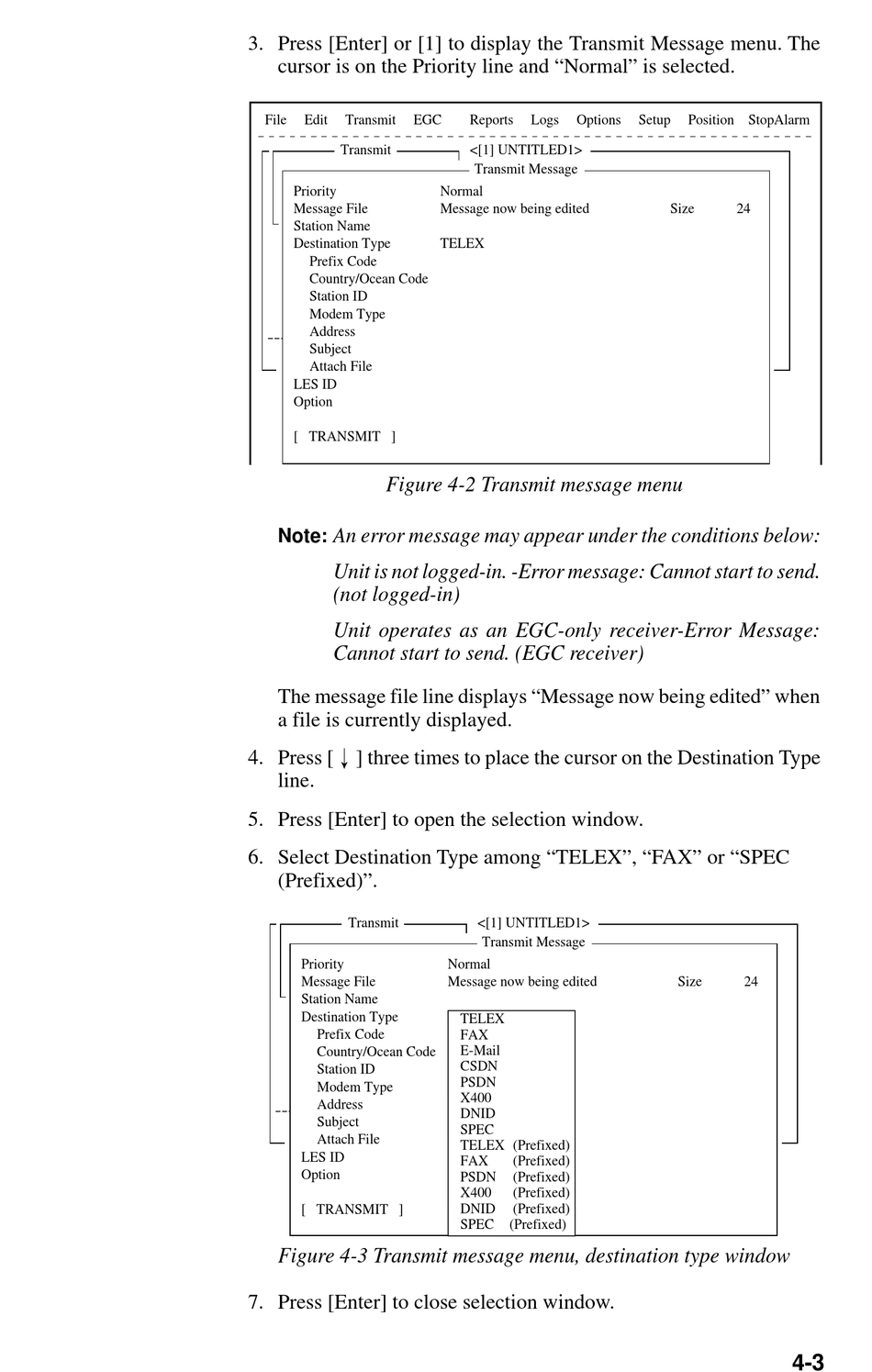

3. Press [Enter] or [1] to display the Transmit Message menu. The
cursor is on the Priority line and "Normal" is selected.
File Edit Transmit EGC
Transmit
0001|t 1. Transmit Message
2. Cancel
Priority
3. Request Delivery Status
Message File
Station Name
Destination Type
Prefix Code
Country/Ocean Code
Station ID
Modem Type
Address
---- * ---------+---------+---------+---------+---------+---------+---------<
Subject
25 Char.
Attach File
LES ID
Option
[ TRANSMIT ]
Figure 4-2 Transmit message menu
Note: An error message may appear under the conditions below:
Unit is not logged-in. -Error message: Cannot start to send.
(not logged-in)
Unit operates as an EGC-only receiver-Error Message:
Cannot start to send. (EGC receiver)
The message file line displays "Message now being edited" when
a file is currently displayed.
4. Press [ ] three times to place the cursor on the Destination Type
line.
5. Press [Enter] to open the selection window.
6. Select Destination Type among "TELEX", "FAX" or "SPEC
(Prefixed)".
Transmit
0001|t 1. Transmit Message
2. Cancel
Priority
3. Request Delivery Status
Message File
Station Name
Destination Type
Prefix Code
Country/Ocean Code
Station ID
Modem Type
Address
---- * ---------+---------+---------+---------+---------+---------+---------<
Subject
25 Char.
Attach File
LES ID
Option
[ TRANSMIT ]
Figure 4-3 Transmit message menu, destination type window
7. Press [Enter] to close selection window.
Reports Logs Options
<[1] UNTITLED1>
Transmit Message
Normal
Message now being edited
TELEX
[ Line 2/ 2 Col.
<[1] UNTITLED1>
Transmit Message
Normal
Message now being edited
TELEX
TELEX
FAX
E-Mail
CSDN
PSDN
X400
DNID
[ Line 2/ 2 Col.
SPEC
TELEX (Prefixed)
FAX (Prefixed)
PSDN (Prefixed)
X400 (Prefixed)
DNID (Prefixed)
SPEC (Prefixed)
Setup Position StopAlarm
Size 24
1 ] [Insert ]
Size 24
1 ] [Insert ]
4-3
