2-2

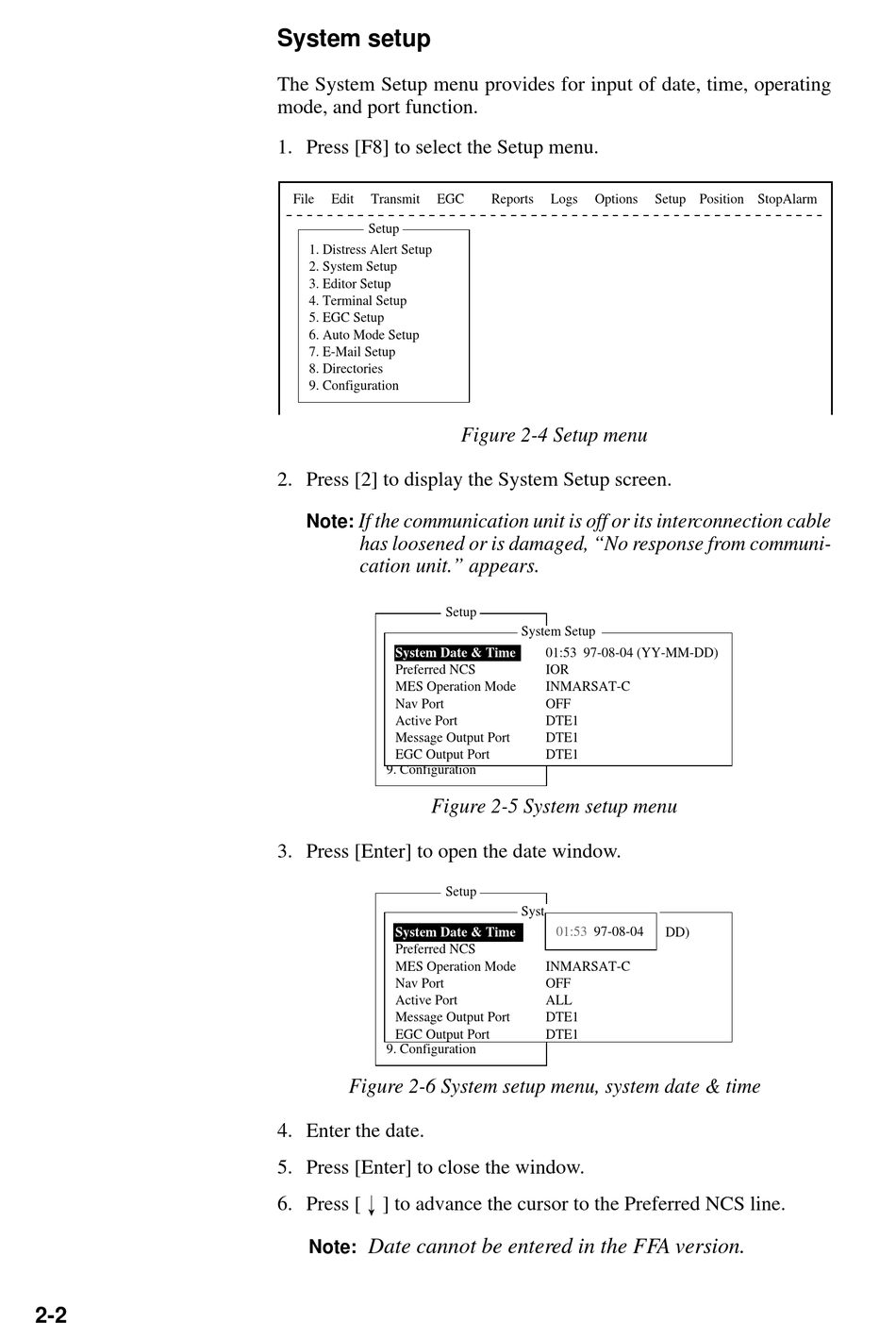

System setup

The System Setup menu provides for input of date, time, operating
mode, and port function.
1. Press [F8] to select the Setup menu.
File Edit Transmit EGC
Setup
1. Distress Alert Setup
2. System Setup
3. Editor Setup
4. Terminal Setup
5. EGC Setup
6. Auto Mode Setup
7. E-Mail Setup
8. Directories
9. Configuration
2. Press [2] to display the System Setup screen.
If the communication unit is off or its interconnection cable
Note:
has loosened or is damaged, "No response from communi-
cation unit." appears.
System Date & Time
Preferred NCS
MES Operation Mode
Nav Port
Active Port
Message Output Port
EGC Output Port
9. Configuration
Figure 2-5 System setup menu
3. Press [Enter] to open the date window.
System Date & Time
Preferred NCS
MES Operation Mode
Nav Port
Active Port
Message Output Port
EGC Output Port
9. Configuration
Figure 2-6 System setup menu, system date & time
4. Enter the date.
5. Press [Enter] to close the window.
6. Press [ ] to advance the cursor to the Preferred NCS line.
Date cannot be entered in the FFA version.
Note:
Reports Logs Options
Figure 2-4 Setup menu
Setup
System Setup
01:53 97-08-04 (YY-MM-DD)
IOR
INMARSAT-C
OFF
DTE1
DTE1
DTE1
Setup
System Setup
01:53 97-08-04
01:53 97-08-04 (YY-DD)
INMARSAT-C
OFF
ALL
DTE1
DTE1
Setup Position StopAlarm
