Display Indications

File Edit
(1)
(3)
(4)
(4)
The display is divided in three sections:
1) The menu area
2) The working area
3) The operating status area
Transmit EGC Reports
2 WORKING AREA
(5)
(6)
(8)

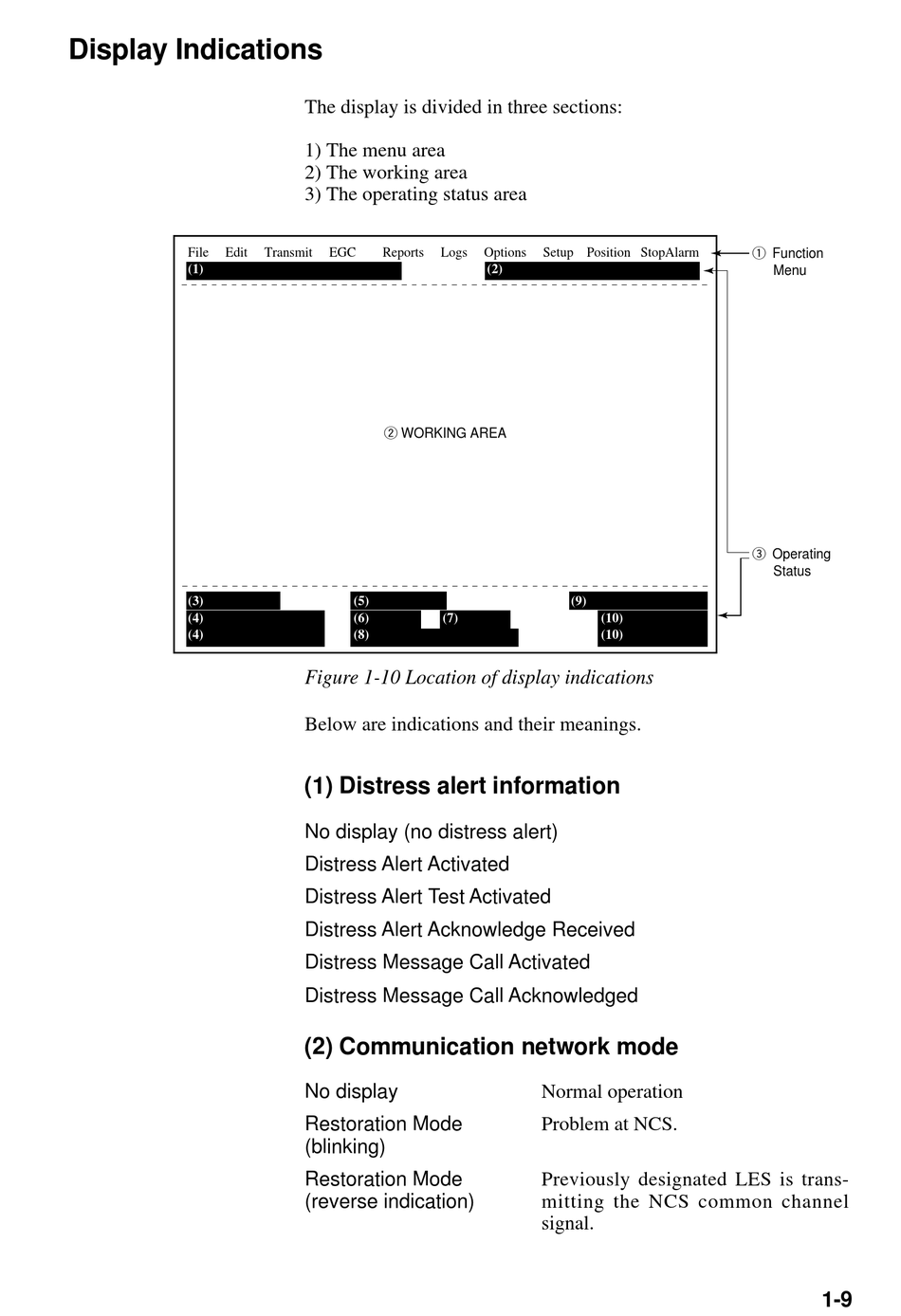

Figure 1-10 Location of display indications
Below are indications and their meanings.
(1) Distress alert information
No display (no distress alert)
Distress Alert Activated
Distress Alert Test Activated
Distress Alert Acknowledge Received
Distress Message Call Activated
Distress Message Call Acknowledged
(2) Communication network mode
No display
Restoration Mode
(blinking)
Restoration Mode
(reverse indication)
Logs Options Setup Position StopAlarm
(2)
(9)
(7) (10)
(10)
Normal operation
Problem at NCS.
Previously designated LES is trans-
mitting the NCS common channel
signal.
1 Function
Menu
3 Operating
Status
1-9
