Basic hardware procedures
4.3

Opening the front cage

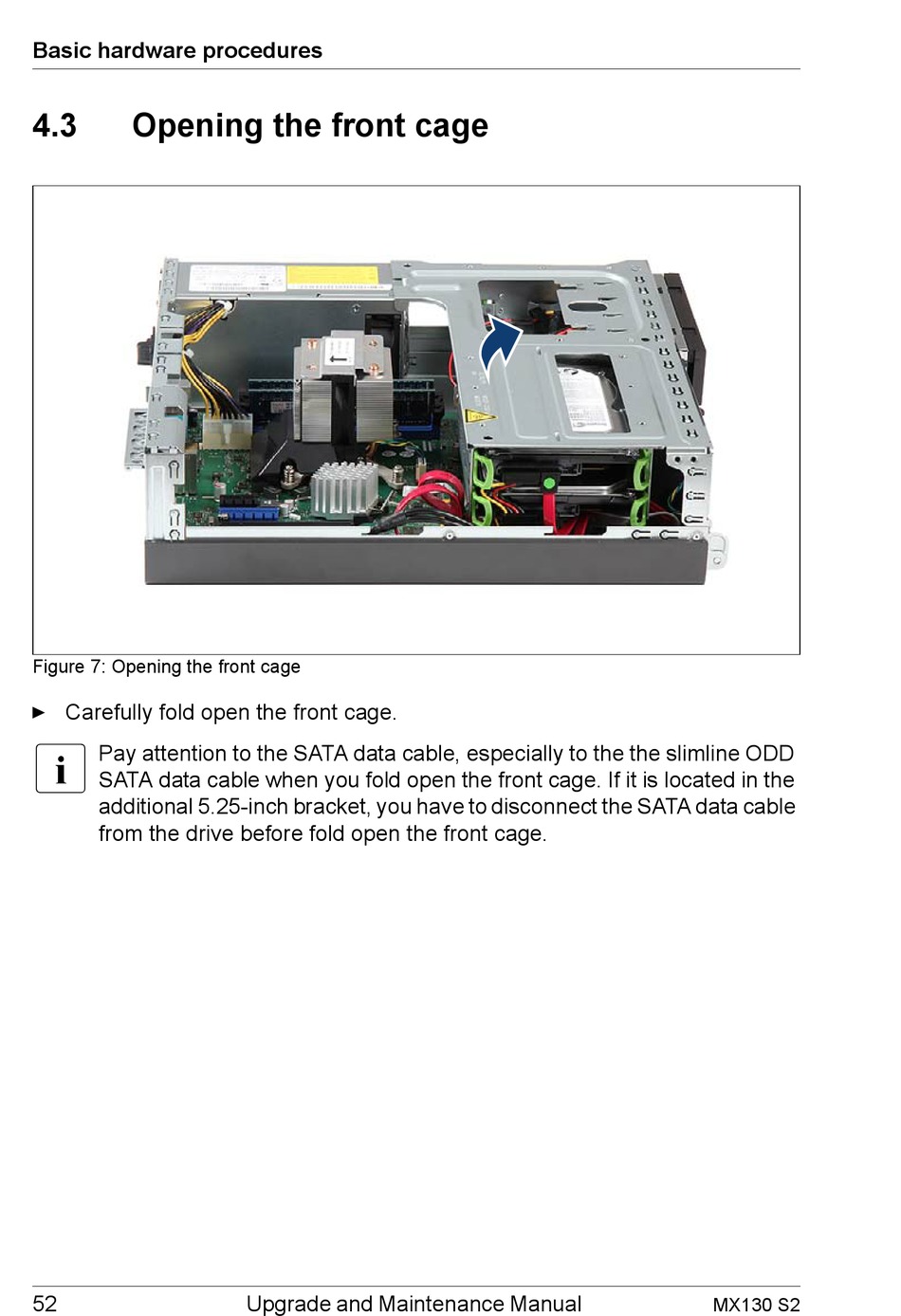

Figure 7: Opening the front cage
Ê Carefully fold open the front cage.
I
Pay attention to the SATA data cable, especially to the the slimline ODD
SATA data cable when you fold open the front cage. If it is located in the
additional 5.25-inch bracket, you have to disconnect the SATA data cable
from the drive before fold open the front cage.
52 Upgrade and Maintenance Manual
MX130 S2
