Replacing The System Fan Assembly; Memory Fan - HP Xw6600 - Workstation - 2 GB RAM Technical Reference Manual

3. Remove the memory fan assembly (see
4. Disconnect the lower and upper fan plugs from the system board connectors (1), as shown in the
following figure.

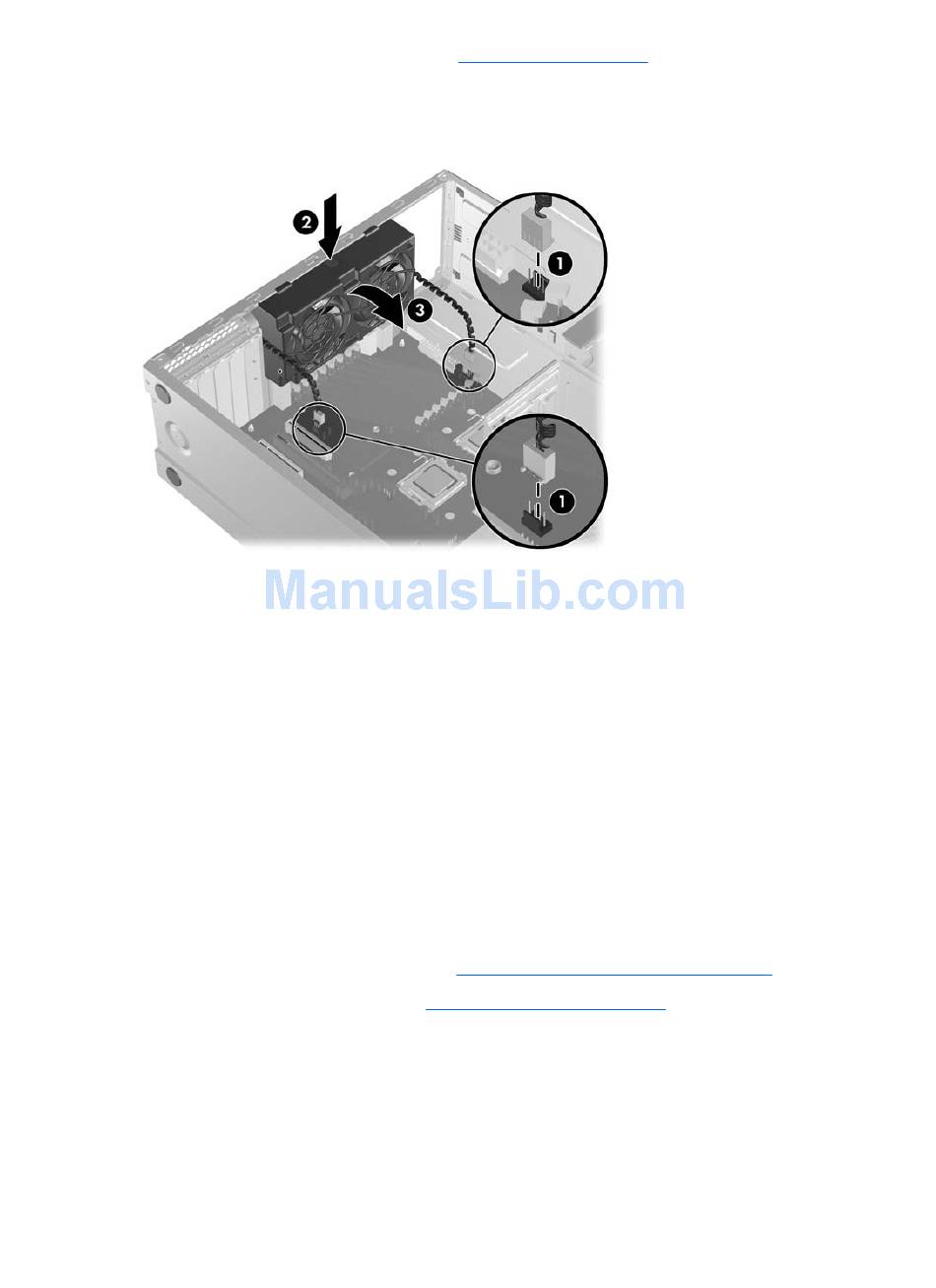

Figure 4-25
5. Press in on the ribbed release snap of the system fan housing (2), and then rotate the fan housing
down (3).
6. Lift the system fan assembly out of the chassis.

Replacing the system fan assembly

To replace the system fan assembly, align the four plastic tabs protruding from the bottom back edge
of the fan assembly with corresponding mounting holes on the rear of the chassis.
Rotate the fan assembly up against the rear chassis panel, and then snap it into place.
The fan assembly electrical connectors and their mating system board header connectors are red. To
locate the system fan header connectors on the system board, refer to the service label located on the
inside of the access panel.

Memory fan

To remove the memory fan:
1. Disconnect power from the system (see
2. Remove the side access panel (see
74 Chapter 4 Removal and replacement procedures
Removing the system fan
Memory fan on page
Predisassembly procedures on page
Side access panel on page
74).
52).
58).
ENWW
