5 If necessary, select user-defined fields to include in the plot stamp.
6 If necessary, select a new plot stamp parameter file.
Plot stamp parameter files have the extension PSS. Multiple users can access the same file and stamp their
plots based on company standard settings. AutoCAD Architecture provides two PSS files—Mm.pss and
Inches.pss—that are located in the Support folder. The initial default plot stamp parameter file name is
determined by the regional settings of the operating system when AutoCAD Architecture is installed.

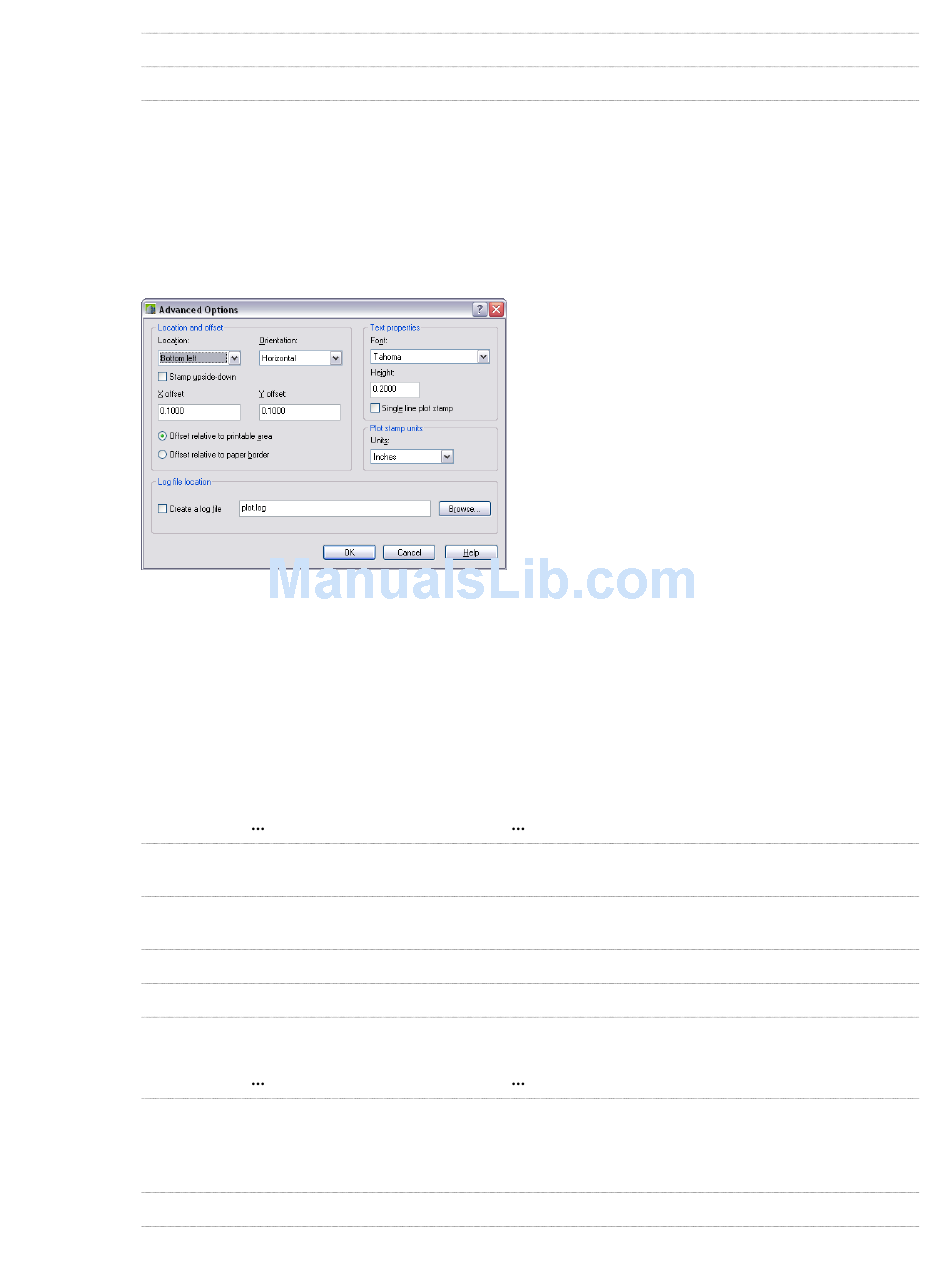

7 Click Advanced.
8 Select the location of the plot stamp on the plotting sheet.
The location is relative to the image orientation of the drawing on the page.
9 Select the orientation of the plot stamp.
The orientation works in combination with the location setting. For example, if you select Top Left for
location, and Horizontal for orientation, the plot stamp is placed in a horizontal row in the upper left
corner of the plot sheet.
10 To rotate the plot stamp upside-down, select Stamp upside-down.
11 Define the offsets of the plot stamp:
If you want to
calculate the offset values that you specify from the
corner of the printable area of the paper
calculate the offset values that you specify from the
corner of the paper
define a horizontal offset for the plot stamp
define a vertical offset for the plot stamp
12 Define the text properties of the plot stamp.
If you want to
change the font of the plot stamp
change the text height
Description
Places the paper size for the currently configured plotting device in the plot stamp.
Places the plot scale in the plot stamp.
Then
select Offset relative to printable area.
select Offset relative to paper border.
enter the offset value under X offset.
enter the offset value under Y offset.
Then
select a new font.
NOTE You can select only TrueType fonts here.
enter a new text height.
