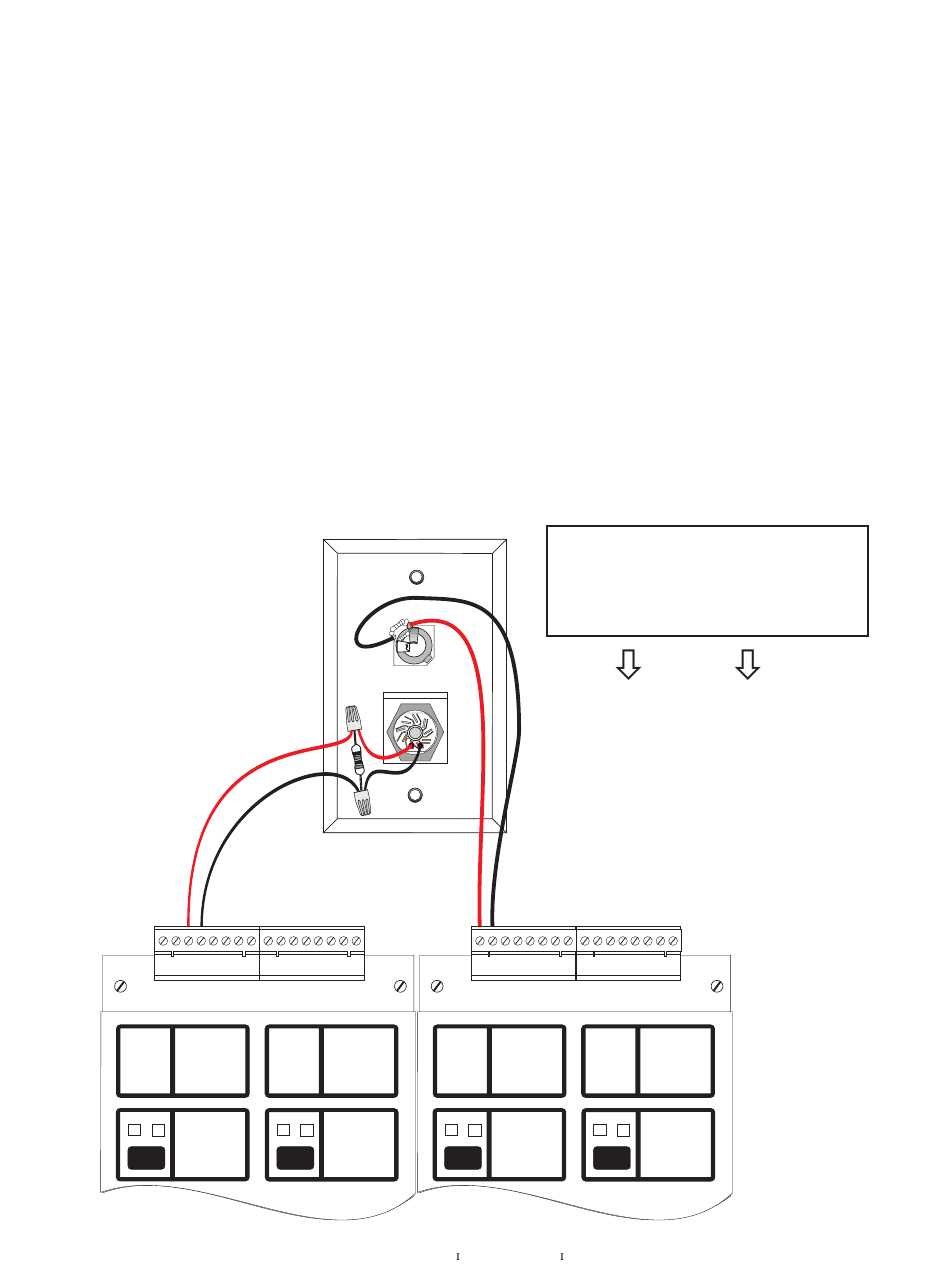

Connection Diagram for Telephone Page
RPJ-1 Installation
The RPJ-1 Remote Paging Jack mounts to a deep single-gang electrical box (4 x 2-1/8 x 2-1/2). Connect the key
switch's red and black leads to an IZM-8 Zone 2 as illustrated below. Program Zone 2 as non-alarm and supervisory .
Connect the phone jack's red and black leads to a VCM-4 circuit. Do not program this circuit for silenceable
operation or inhibit its switch functions. Ensure that the VCM-4's configuration jumper is set over JP4.
Telephone paging from RPJ-1 circuitry is supervised and power limited. Maximum wire resistance per circuit is 100
ohms (except for annunciator power which is 10 ohms). An ACS or AFM Annunciator is used for speaker circuit
selection and must be mounted adjacent to the paging telephone station (not required for ALL-CALL operation).
RPJ-1 Operation
Telephone page is used for remote paging when the fire fighter wishes to manually select speaker circuits. To
execute a remote page, insert the key into the RPJ-1 and turn counterclockwise. This will short-circuit zone 2. The
CPU-5000 will then activate the telephone circuit, transmit a Telephone Page command to the AMG-1 Audio
Message Generator, which will patch the call through to the AMG-1 output. Insert handset into the RPJ-1 phone
jack and begin paging. When paging is complete, remove the handset, wait for speaker activation, lock the RPJ–
1 and remove the key. When zone 2 returns to normal, the CPU will deactivate the telephone circuit and transmit
a page-off command to the AMG-1.
Do not cut resistors on
phone jack input
Wire nut a R-4.7K ELR
across the key switch circuit
+ - + - + - + -
A B
MODULE INITIATING
TYPE
ZONE
LAMPS RED = ALARM
YELLOW=TROUBLE
SWITCH
DISPLAY PROGRAM
IZM-8
70
Phone
Jack
Input
-
+
-
RPJ-1 (back)
+ - + - + - + -
C D E F G H
MODULE INITIATING
TYPE
ZONE
RED = ALARM
LAMPS
YELLOW=TROUBLE
SWITCH
DISPLAY PROGRAM
S5000 15583 Rev.
or AFM-16AT Annunciator with AKS-1.
Set Receive/Transmit operation mode
+
To 24VDC
Telephone Page Connections
Key
Switch* *For All Call operation, connect key switch to
IZM-8 circuit "C." Note: An annunciator would
not be required for ALL-CALL service.
Remote Page Circuit
Black (-), Red (+)
+ - + - + - + - + - + - + - + -
A B C D E
MODULE TELEPHONE MODULE
TYPE
CIRCUIT
LAMPS RED = CALL
YELLOW=TROUBLE
SWITCH
ON/OFF
VCM-4
6/10/96 P/N 15583:
ACM-16AT/AEM-16AT
(Set Switch SW5 OFF)
To EIA-485
Power
Port
F G H
TELEPHONE
TYPE
CIRCUIT
LAMPS RED = CALL
YELLOW=TROUBLE
SWITCH
ON/OFF
