Section 4.2: UL Power-limited Wiring Requirements - Power Supplies
The diagram below shows a typical System 5000 installation and is provided as a guide for proper wiring
placement. The AC and battery wiring are not power-limited. A separation of at least 0.25" must be maintained
between power-limited and nonpower-limited wiring. Install the tie wraps and adhesive squares as indicated
below.

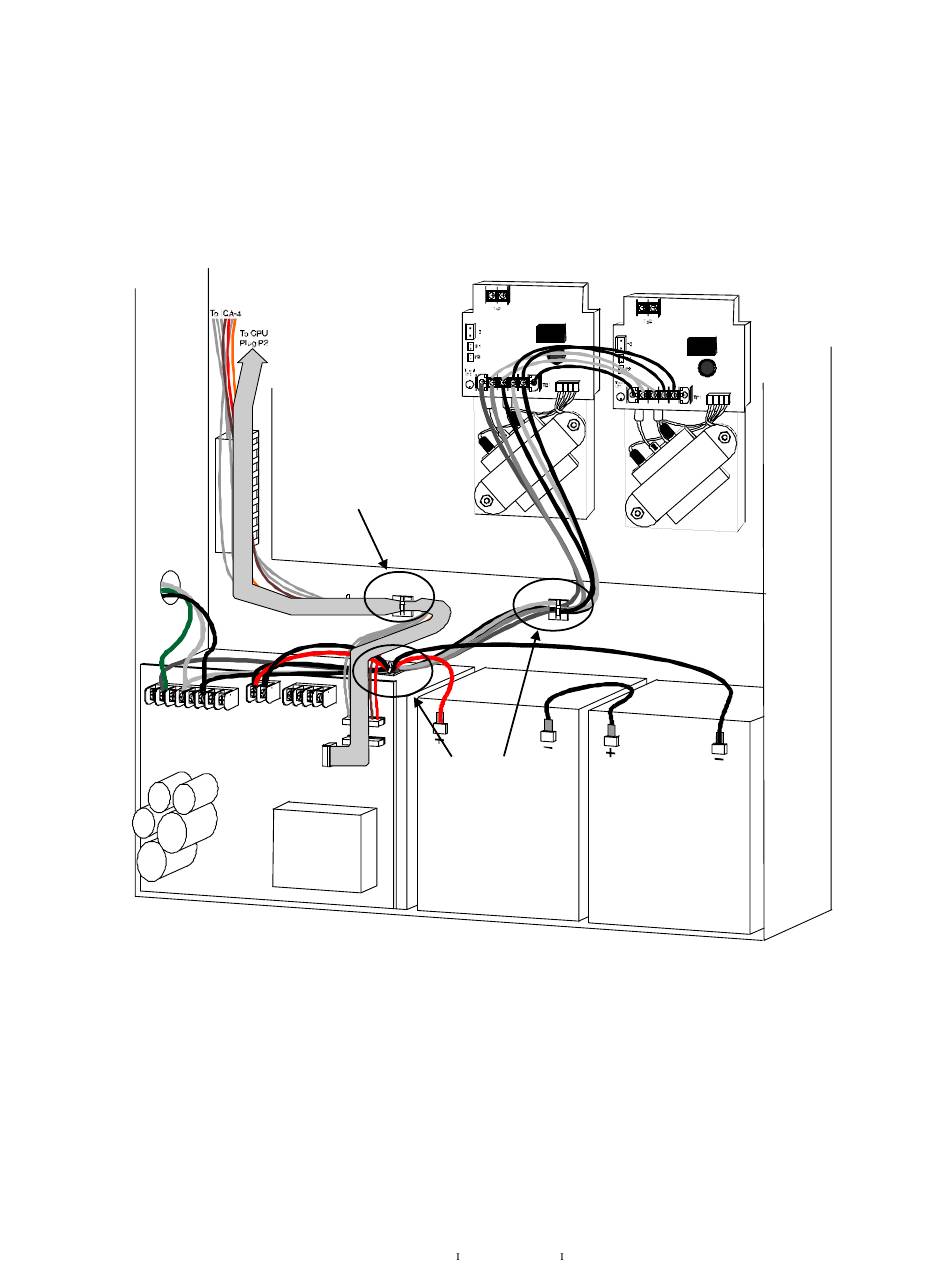

Figure 4-2:
34
Adhesive square and tie-
wrap on back of cabinet
affixing power-limited
wiring
Adhesive square and
tie-wrap on back of
cabinet and on top of
power supply chassis
affixing nonpower-
limited wiring
Power-limited and Nonpower-limited Wiring
for Power Supplies
S5000 15583 Rev.
6/10/96 P/N 15583:
