Remote Command Inputs
The function of Acknowledge, Signal Silence, and Reset can be executed from remote switches. The switches
are wired to IZM-8 circuits which must be programmed for this special operation. Additional functions, outlined
below, can also be accomplished through IZM-8 circuits.
Presignal Inhibit: IZM-8 zone 1. Program zone as non-alarm and supervisory. This command issued to inhibit
presignal operation. Upon entering presignal, the CPU checks zone 1 on all IZM-8 and AIM-200 modules. If the
zone is active (shorted), all presignal or PAS operation will be ignored.
Telephone page: IZM-8 zone 2. Program zone as non-alarm and supervisory.
Telephone Page is used for remote paging when the fire fighter wishes to manually
select speaker circuits Telephone Page will be activated when a telephone call-in
is received and zone 2 has been activated (shorted). The CPU will then activate the
telephone circuit, transmit a Telephone Page command to the AMG-1 Audio
Message Generator which will patch the call through to the AMG-1 output. When
zone 2 returns to normal, the CPU will deactivate the telephone circuit and transmit
a page off command to the AMG-1. Never program a telephone circuit for
silenceable operation or inhibit its switch function.
All-Call Telephone Page: IZM-8 zone 3. Program zone as non-alarm and
supervisory. All-Call Telephone Page operates the same as Telephone Page, with
the exception that the CPU will initiate the All-Call function, which activates all
silenceable circuits not programmed for switch inhibit. When zone 3 returns to
normal, the CPU will deactivate the All-Call Telephone Page function (re-execute
all zone-to-output mapping). Notification circuit that should not activate during all-
call telephone page must be programmed for non-silenceable and/or switch inhibit
operation.

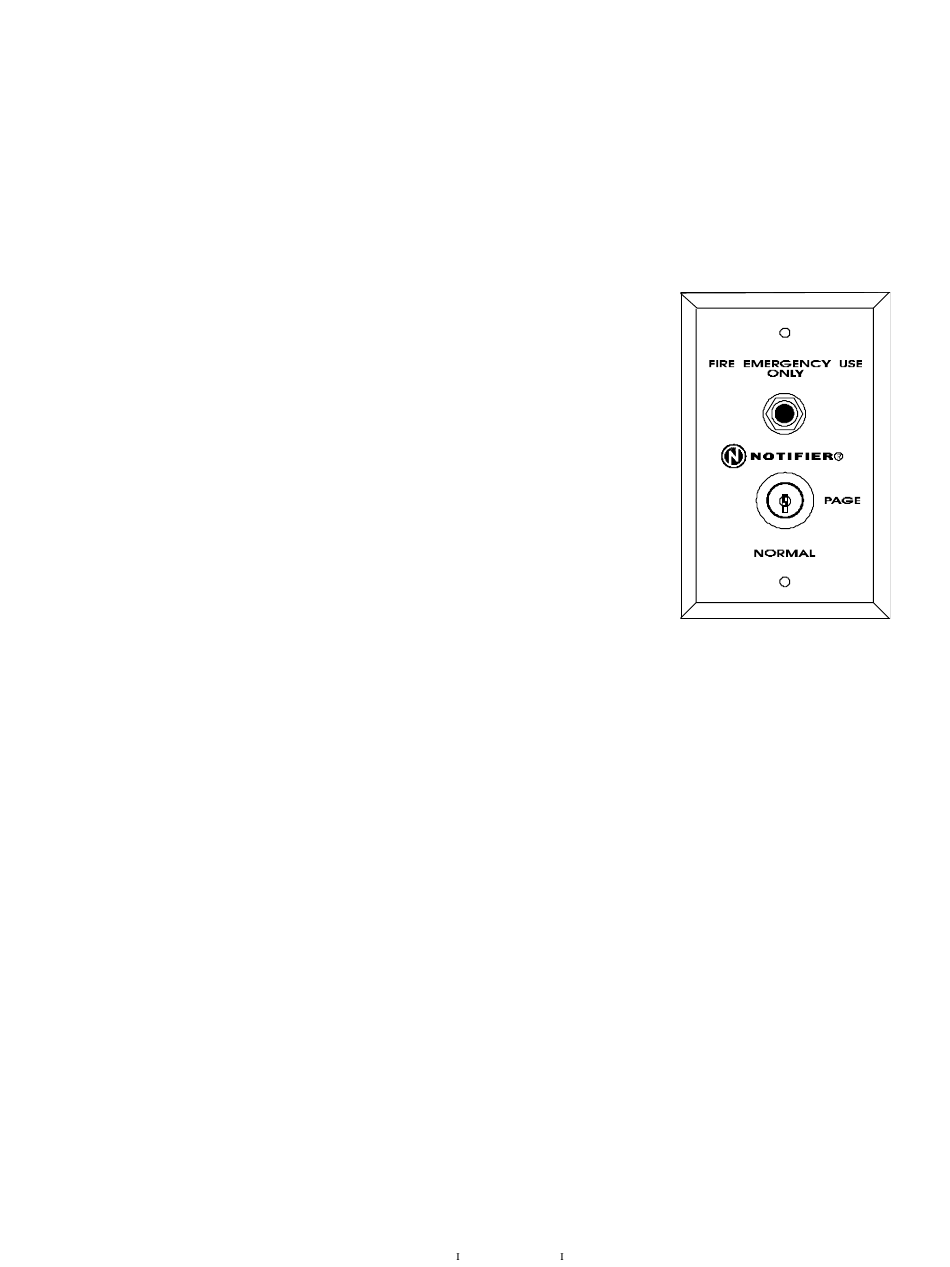

Notifier model RPJ-1
All-Call (General Alarm): IZM-8 zone 4. Program zone as non-alarm and super-
visory. Provides a simple evacuation function for non-voice alarm systems. All-Call does not perform telephone
functions, but, rather, initiates an All-Call function that activates all silenceable circuits that are not programmed
for switch inhibit. When zone 4 returns to normal, the CPU will deactivate the All-Call function (re-execute all zone-
to-output mapping). Notification circuits that should not activate during all-call (general alarm) must be
programmed for non-silenceable and/or switch inhibit operation.
Emergency Alert: IZM-8 zone 5. Program zone as non-alarm and supervisory. Use as an evacuation signal for
tornados, bomb-scares and other non-fire emergency situations. If the System 5000 is not in alarm, activation
(short) on zone 5 will activate all Notification Appliance Circuits and output relays, that are mapped to zone 5, with
a steady signal. Programmed March Time or Temporal code is ignored. A fire alarm will take priority over an
emergency alert. Notification Appliance Circuit used for fire must be programmed for MTC or Code 3 operation.
Emergency Alert is for local signalling only, do not map to "Remote Signalling/Municipal Tie" outputs.
Acknowledge: IZM-8 zone 6. Program circuit as non-alarm and supervisory. Use to remotely execute an
Acknowledge command without the need of an ACM-16AT annunciator.
Signal Silence: IZM-8 zone 7. Program circuit as non-alarm and supervisory. Use to remotely execute the Signal
Silence command without the need of an ACM-16AT annunciator.
System Reset: IZM-8 zone 8. Program circuit as non-alarm and supervisory. Use to execute the Reset function
without the need of an ACM-16AT annunciator.
