Chassis
Chassis

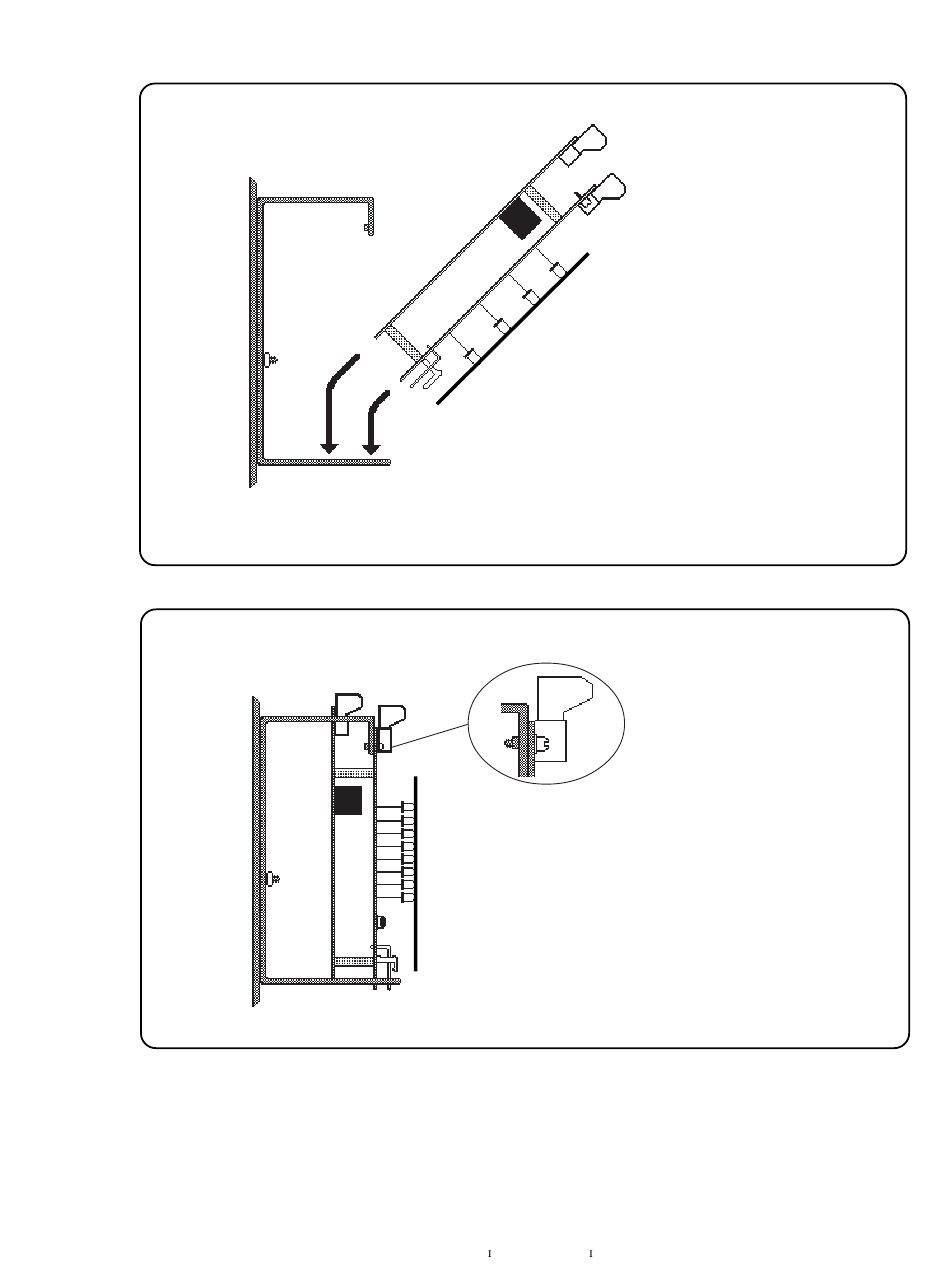

Figure 3-7: Mounting Modules in the Chassis
S5000 15583 Rev.
Step 1:
Angle the module into the chassis so
that the upper board edge slips into the
chassis slot as shown.
Step 2:
Push the upper end of the module into the chassis
and secure with two module screws.
6/10/96 P/N 15583:
