Step 1
Remove ONE module
support screw and set it
aside for later use.
Step 3
Repeat Steps 1 and 2 for the three remaining screws on the module.
Step 4
Insert pins on the Ex-
pander Board into con-
nector on module and
press the two boards
together, ensuring that
the pins are properly
aligned.

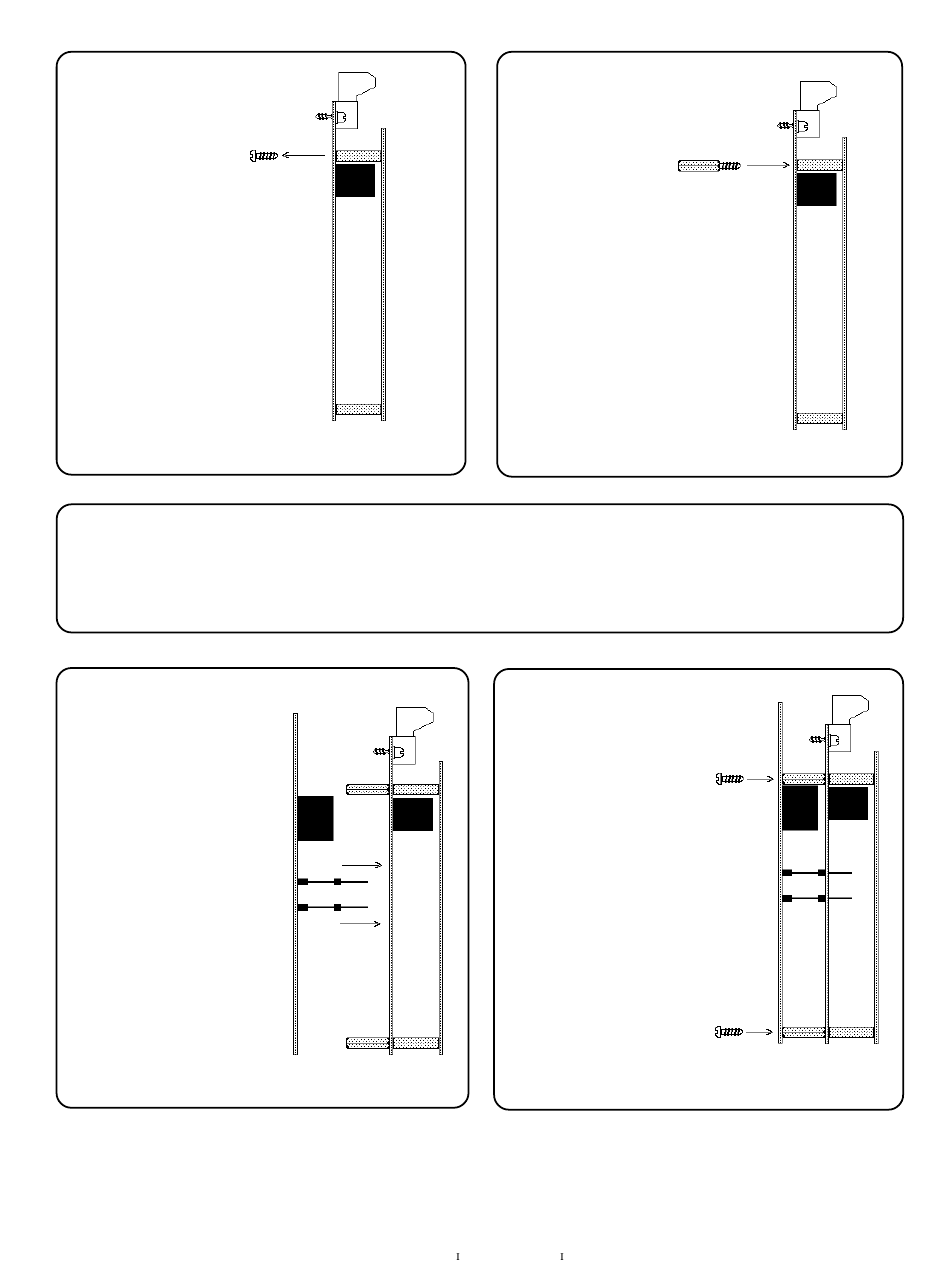

Figure 3-6: Mounting Optional Module Expanders
28
Module
Expander
Module
Board
S5000 15583 Rev.
Step 2
Replace screw with one
module standoff.
Step 5
Install the four screws removed
earlier through the back of the
Expander Board and into the
standoffs.
6/10/96 P/N 15583:
Module
Expander
Module
Board
