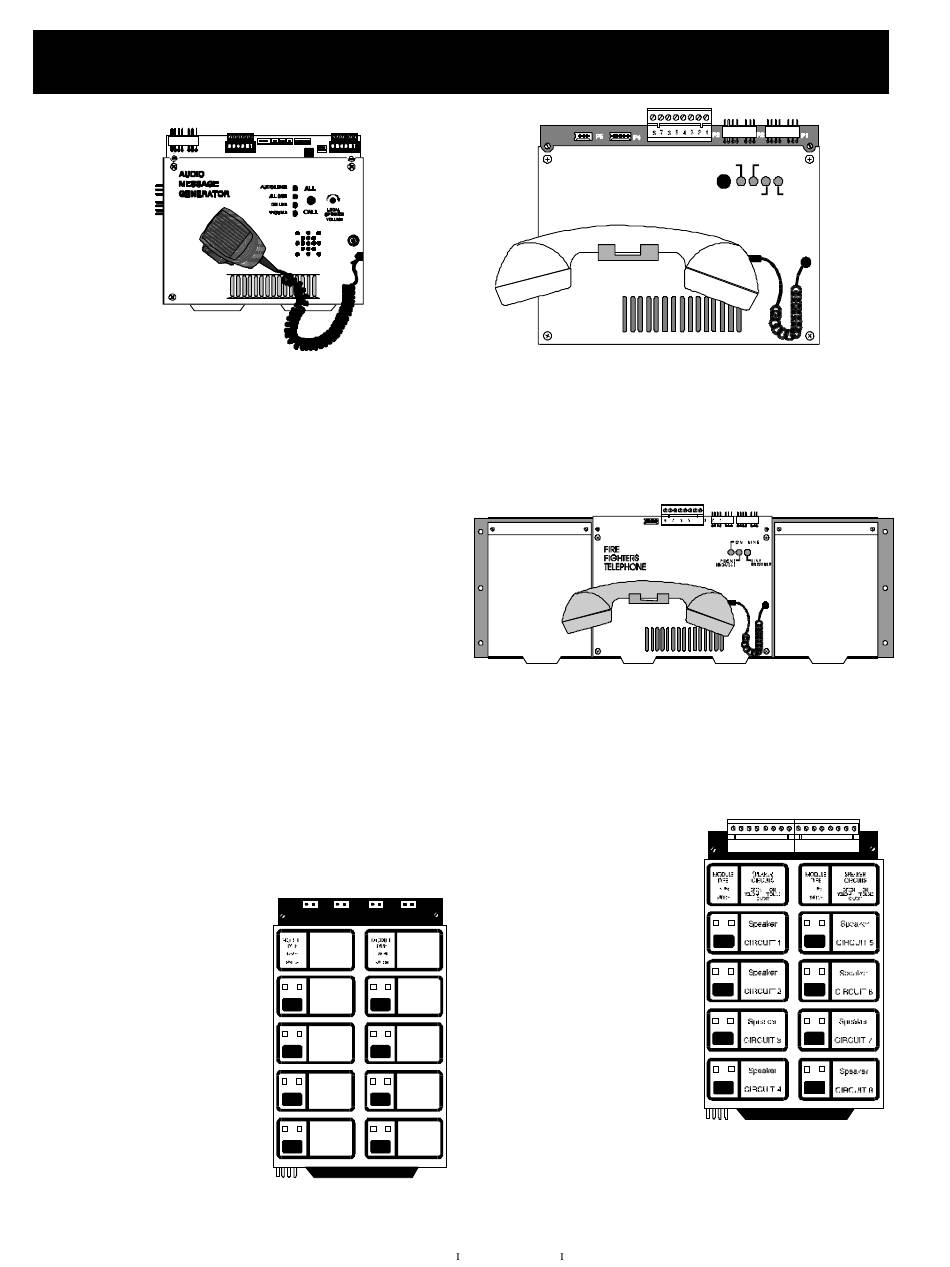

Audio Message Generator
The heart of a voice evacuation system, the Audio
Message Generator (AMG-1) provides a variety of
tone, including a slow whoop, yelp, yeow, siren, hi/lo, or
steady tone. A built-in microphone allows for paging
through speaker circuits. Optionally, up to four digitally-
recorded voice messages may be installed in the AMG-
1. Prerecorded VROM-(n) voice messages are avail-
able from the factory, and one or two messages can be
installed in the AMG-1. With optional VRAM-1 memory
chips installed, up to two user-defined messages may
be programmed into the AMG-1 (one per VRAM). Up to
24 seconds in length, both user-messages can be
produced at the AMG-1 through the built-in micro-
phone, or downloaded through a standard audio cas-
sette recorder.
Audio Tone Generator
The ATG-2 Audio Tone Generator is similar to the AMG-
1, but provides tones and microphone only (no
message). It may provide two simultaneous tones for
dual channel application.
The DCM-4 Dual
Channel Module
The DCM-4 Dual Channel
Module provides the system
with the capability to select
one of two different audio
sources for switching to a
particular speaker circuit. Up
to four circuits can be em-
ployed.
For more details on voice evacuation equipment, refer to the Voice Alarm System Manual.
16
Voice Evacuation Equipment
The FFT-7 Fire Fighter's Telephone provides the Voice
Alarm System with fire fighter's telephone capability.
With the FFT-7, up to seven telephones may conduct a
simultaneous conversation.
The FFT-7S Fire Fighter's Telephone provided with the
TCC-1 basic equipment package operates like the FFT-
7 without paging capabilities.
The VCM-4 Voice
Control Module
The Voice Control Module-
4 provides the system with
up to four Style Y or Style Z
speaker circuits. Moving a
jumper on the VCM-4 con-
figures the module for driv-
ing fireman's telephone cir-
cuits. When configured for
telephone circuits, the
VCM-4 accepts its signal
directly from an FFT-7 Fire
Fighters Telephone. Add an
optional VCE-4 Voice Control Expander to the back of
the VCM-4 to provide telephone or speaker circuits 5-
8.
S5000 15583 Rev. 6/10/96 P/N 15583:
AU D I O A M G
FIRE
FIGHTERS
TELEPHONE
Fire Fighters Telephone
FFT-7S Fire Fighters Telephone
PA G E M O D E
O N L I N E
P A G E
L I N E
P H O N E
T R O U B L E T R O U B L E
