Pittway NOTIFIER The SYSTEM 5000 Installation Manual page 69

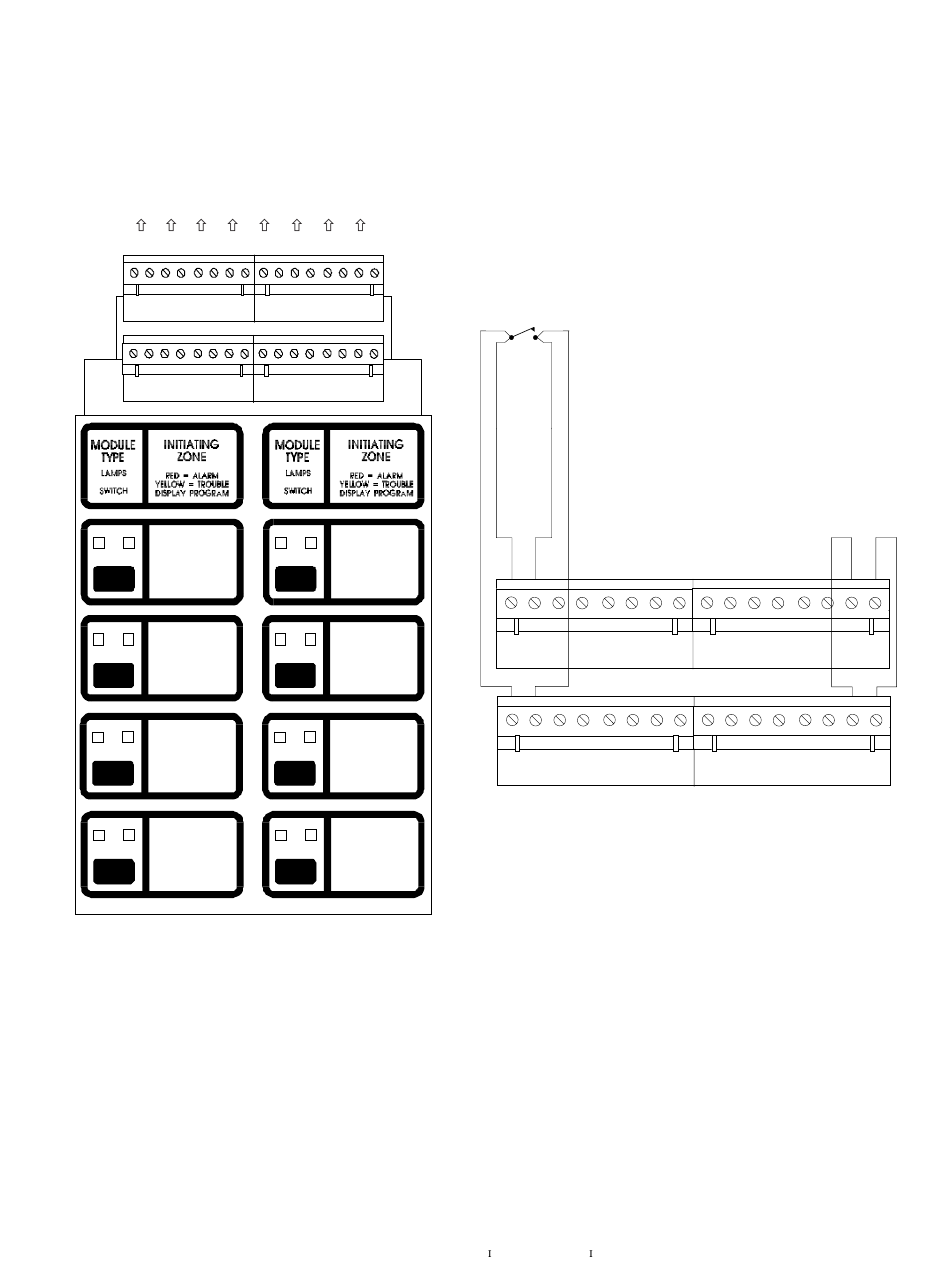

Connection Diagram For Remote Presignal Inhibit, All-Call (General Alarm),
Emergency Alert, Acknowledge, Signal Silence and System Reset Switches.
Use circuit "D" for All-Call (General Evacuation), "E" for Emergency Alert,
"F" for Acknowledge, "G" for Signal Silence, and "H" for Reset.
A B C D E
A+ A- A+ A- A+ A- A+ A-
A
Presignal Inhibit
B
(standard zone)
C
(standard zone)
D
(standard zone)
1) Switches used to control Presignal Inhibit, Acknowledge, Signal Silence or System Reset must be key operated, located within a
locked cabinet or arranged to provide equivalent protection against unauthorized use. Switches must be UL listed to switch 30 VDC
at 50mA.
2) If a key operated switch is used, the key should be removable in both open and closed positions, when used for Presignal Inhibit.
The keys should be removable in the open position only when used for Acknowledge, Signal Silence or System Reset.
3) The Presignal Inhibit, Emergency Alert, Acknowledge, Signal Silence or System Reset functions can be controlled by a relay con-
tact from a CR-4/CRE-4 Relay Module, which can be operated from switches on ACM-16AT, AEM-16AT, AFM-16AT, or LDM-32
Annunciators.
4) Locate Acknowledge, Signal Silence and System Reset switches adjacent to a system annunciator so that system status is avail-
able to the operator.
5) Remote Command Circuits are supervised and power limited. Maximum wire resistance per circuit is 100 ohms. Circuits
wired for style B operation requires a 4.7K ELR (P/N 71252) at the end of the line.
F G H
A+ A- A+ A- A+ A- A+ A-
E
Emergency Alert
F
Acknowledge
G
Signal Silence
H
System Reset
S5000 15583 Rev.
Style D
Presignal Inhibit
Switch
A+ A-
B+ B-
6/10/96 P/N 15583:
Jumper all unused
circuits as shown
69
