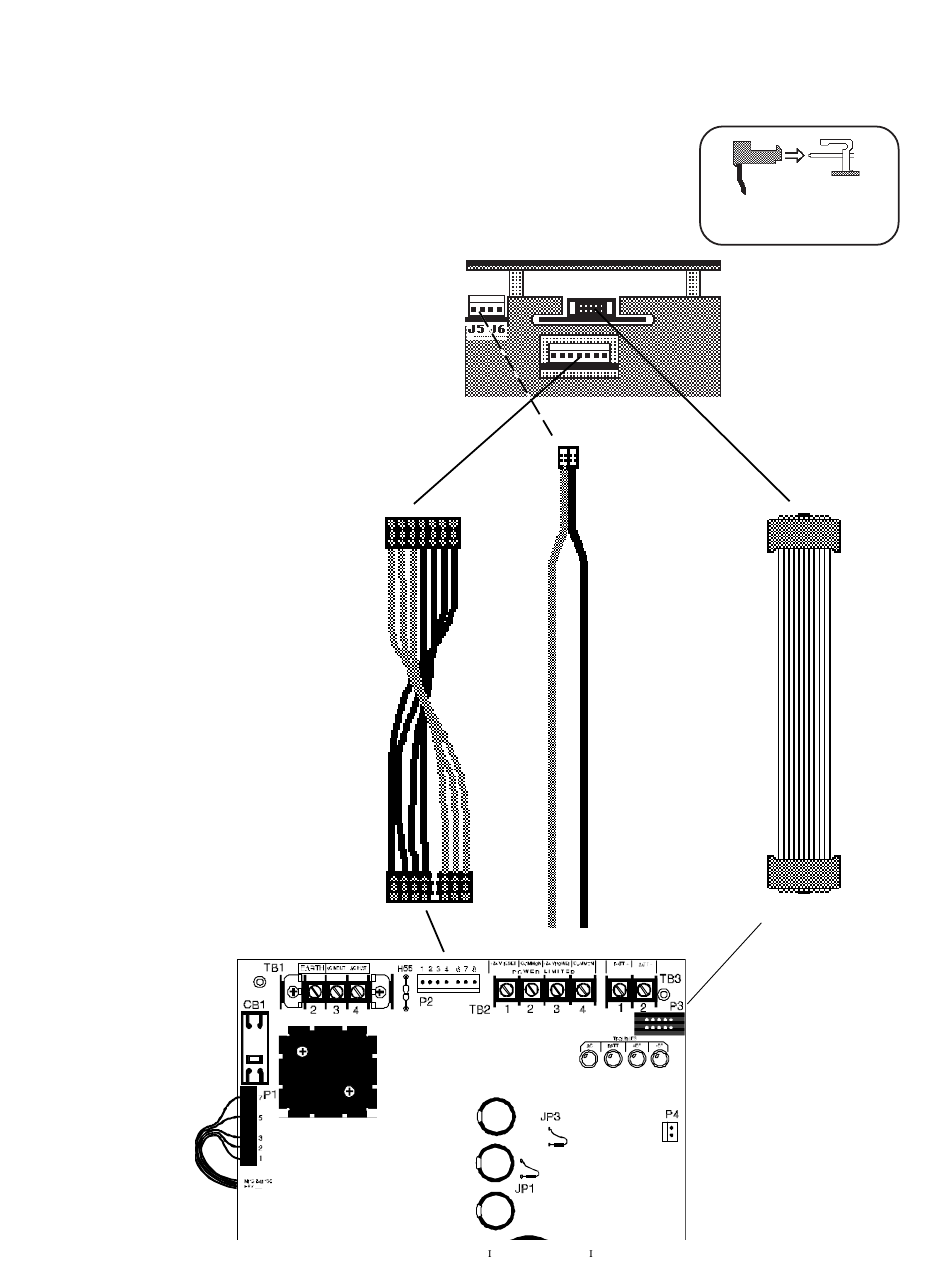

Figure 5-6: Harness Connections for the MPS-24B
7-position end
Power Harness
(71086)
Connect to P2.
Note position of
Red Wire at 8-position end
Connect to J5
+
S5000 15583 Rev.
6/10/96 P/N 15583:
Connector orientation
CPU-5000
(bottom view)
MPS Bell Power
Harness (71093)
Connect to J5 on the
CPU.
Blue Wire (+)
Black Wire (-)
Power Ribbon
-
(71085)
49
