6.9 Notification Appliance Circuit Current Limitations
The total current available from any group of Indication Appliance Circuits cannot
exceed 3.0 amps. Figure 6-7 illustrates some of the typical power supply/
Notification Appliance Circuit configurations.
Note: The term "total" in these figures assumes that no Notification Appliance
power is drawn for any other purpose.

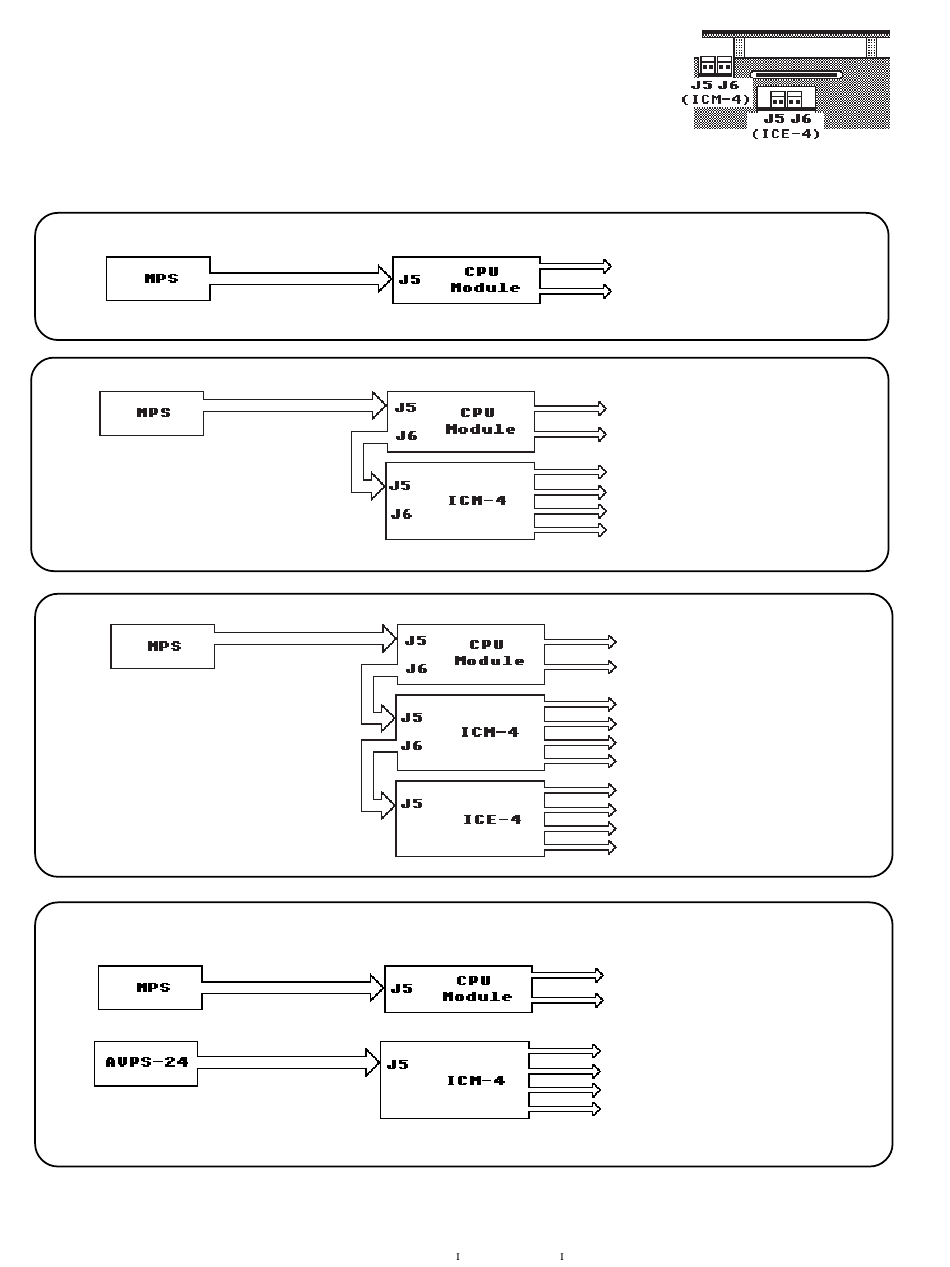

Figure 6-11: Typical Supply/Notification Circuit Configurations
64
S5000 15583 Rev. 6/10/96 P/N 15583:
Bottom wire of the
ICM-4/ICE-4
These two Notification
Appliance Circuits share the
total MPS current.
These six Notification
Appliance Circuits share the
total MPS current.
These ten Notification
Appliance Circuits share the
total MPS current.
These two Notification
Appliance Circuits share the
total MPS current.
These four Notification
Appliance Circuits share the
total 3.0 amps of current on
the AVPS-24.
