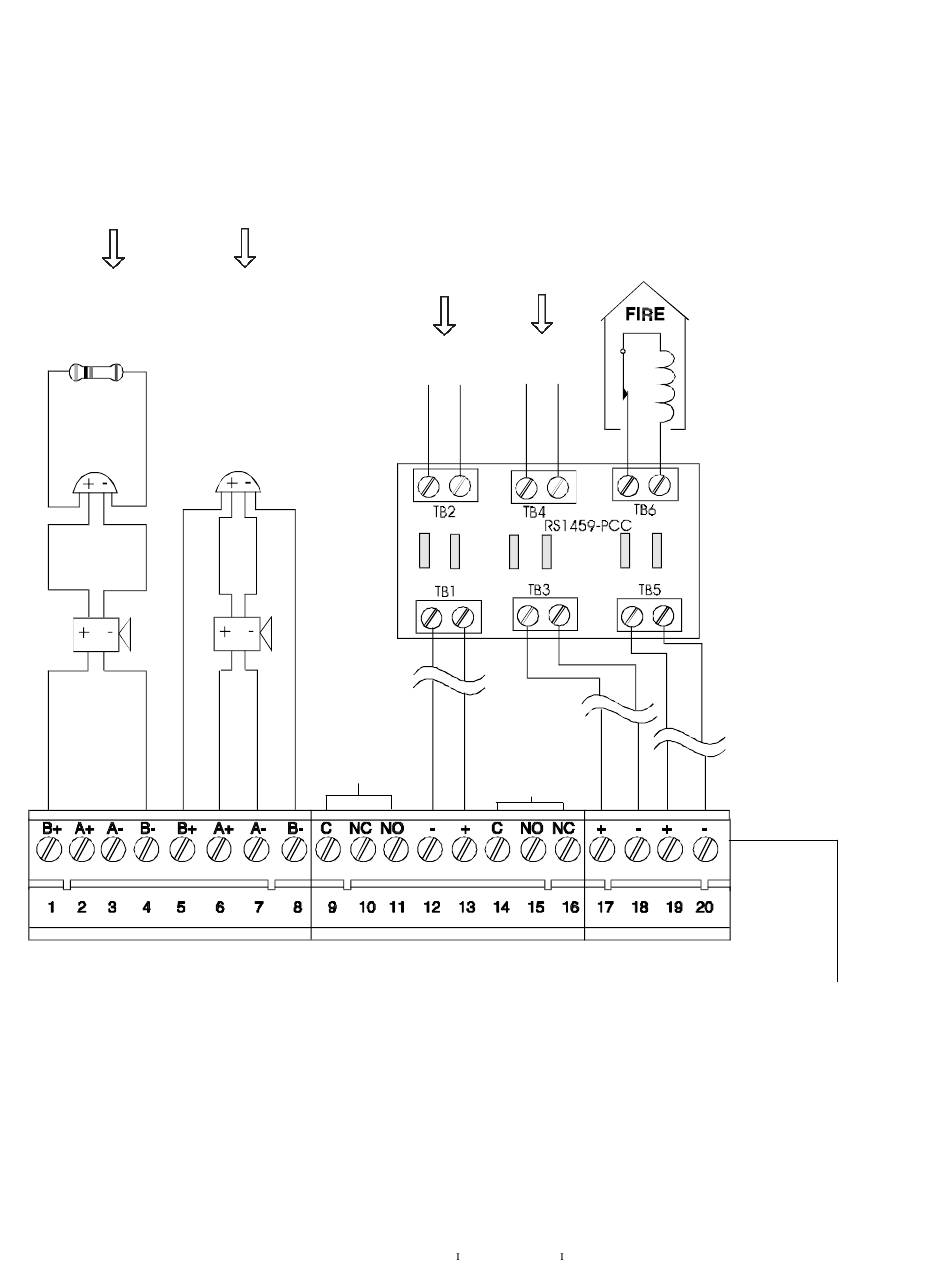

Figure 4-4: Field Wiring the CPU-5000
Typical Supervised, Power-limited
Notification Appliance Circuits
Use only UL-listed Notification Appliances (see Appen-
dix A). Wire devices according to the manufacturer's
instructions. Maximum current per circuit is 3.0 amps.
Style Y
4.7K, 1/2 watt ELR.
Part # 71252.
UL listed
24 VDC
Polarized Bell
UL listed
24 VDC
Polarized Horn
1) The Municipal Box Output is not power-limited, therefore do not use the Municipal Box Output and the power-limited Remote Station
Alarm Output simultaneously.
2) Notification circuits, Remote Station Trouble output, and the Remote Station Alarm output are power limited and may be connected
to limited-energy cable.
3) The RS-1459 module is required when the Remote Station or Municipal Box Output is connected to a circuit that exits the protected
premises. Exception - The RS-1459 is not required for the Municipal Box Output if all of the following conditions exist: (1) wiring is
in conduit, (2) wire length is less than 1000 meters and (3) wiring does not cross any power lines.
4) Wire Notification Appliances according to their instructions.
5) Terminal blocks will accept #12 to #22 AWG wire.
6) Size Notification circuit wire for a maximum drop of 2.0 volts DC
7)) See Device Compatibility Document for compatible Notification Appliances.
8) For zone coded Notification circuits, see the UZC-256 manual .
36
Non-Supervised, Power-limited
Remote Station Outputs
Standby polarity shown
24 volts DC (nominal). Power-limited, 10 mA
maximum rated current. Internal resistance = 1360
ohms (nominal)
Intended for connection to the polarity reversal
circuit of a remote station receiving unit having
compatible ratings (see Fire-Lite model RS-82).
Remote Station
Trouble Output
Style Z
System
Trouble
Contacts
(power-limited
source only)
2A @ 30VDC
1A @ 120VAC
(resistive)
S5000 15583 Rev.
Remote Station
Alarm Output
General
Alarm
Contacts
(power-limited
source only)
5A @ 30VDC
5A @ 120VAC
(resistive)
6/10/96 P/N 15583:
Municipal Box Ratings
(nonpower-limited)
1) Trip current = 0.25 Amperes (min)
2) Coil voltage = 3.65 VDC (min)
3) Coil resistance = 14.6 ohms (max)
4.7K, 1/2 watt ELR.
must be placed
across this circuit if
there is no transmitter
connected
Municipal box
wiring must be
run in conduit.
Municipal
Box Output
Nonpower-limited and super-
vised (for open circuits). Max
Current (short circuit) = 0.6
amps. Max Voltage (open cir-
cuit) = 27.6 VDC. Max Wire Re-
sistance = 5 Ohms
