NOTI-FIRE 911AC DACT* – For connection to a Central Station Receiver or Protected Premises Receiving Unit.
This unit must be installed as illustrated below. For additional information on the 911AC, refer to document
74-06200-005. If the NOTI-FIRE 911AC DACT is not mounted in the RP-1001 backbox, all connections must be
in conduit, less than 20 feet in length, in the same room.
* This application using the NOTI-FIRE 911AC DACT is not FM-approved.

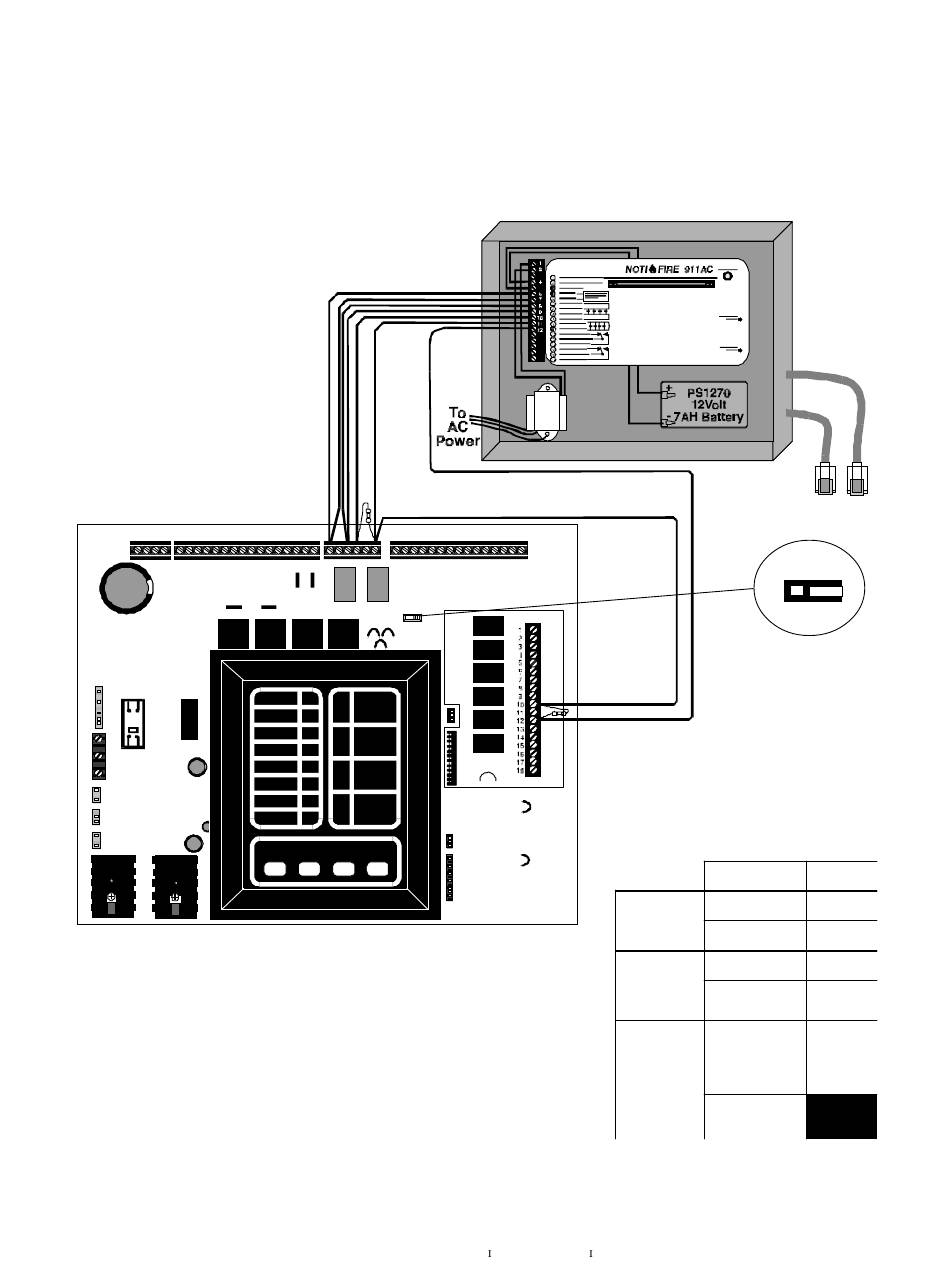

Figure 6-3B: Connection of a 911AC Digital Communicator
Alarm
JP-1
S5000 15583 Rev.
Supervisory
Alarm
normally open
contacts
Trouble
normally open
contacts
Supervisory
normally open
contacts
6/10/96 P/N 15583:
To Central Station
JP-1
1 2 3 4 5 6 7
1 2 3 4 5 6 7
STD DACT
Note on STD DACT:
When using as a DACT,
place jumper over pins 2
and 3, marked "DACT",
This directs the control
panel to transmit all
trouble conditions except
AC Loss.
Motherboard 911AC
TB3-1 6 and 7
TB3-3 8 and 9
TB3-4 10
TB3-6 11
4XZM TB1-12 12
Jumper TB3-6 to
4XZM TB1-10
