Connect grounding cable between
MPS earth ground terminals and at
least one chassis.
To install a CHS-4, place it over the screw mounts on the cabinet. Connect a Grounding Cable Assembly (71033)
to one of the screw mounts. Secure the assembly with two nuts provided. Repeat for each CHS-4 in the cabinet.
The optional CHS-4L chassis is used to mount an AMG-1 Audio Message Generator, FFT-7 Fire Fighters
Telephone, or AA-30 Audio Amplifiers in the cabinet. To install a CHS-4L, place it over the screw mounts on the
cabinet. Connect a Grounding Cable Assembly (71033) to one of the screw mounts. Secure the assembly with
two nuts provided. Repeat for each CHS-4L in the cabinet.
24

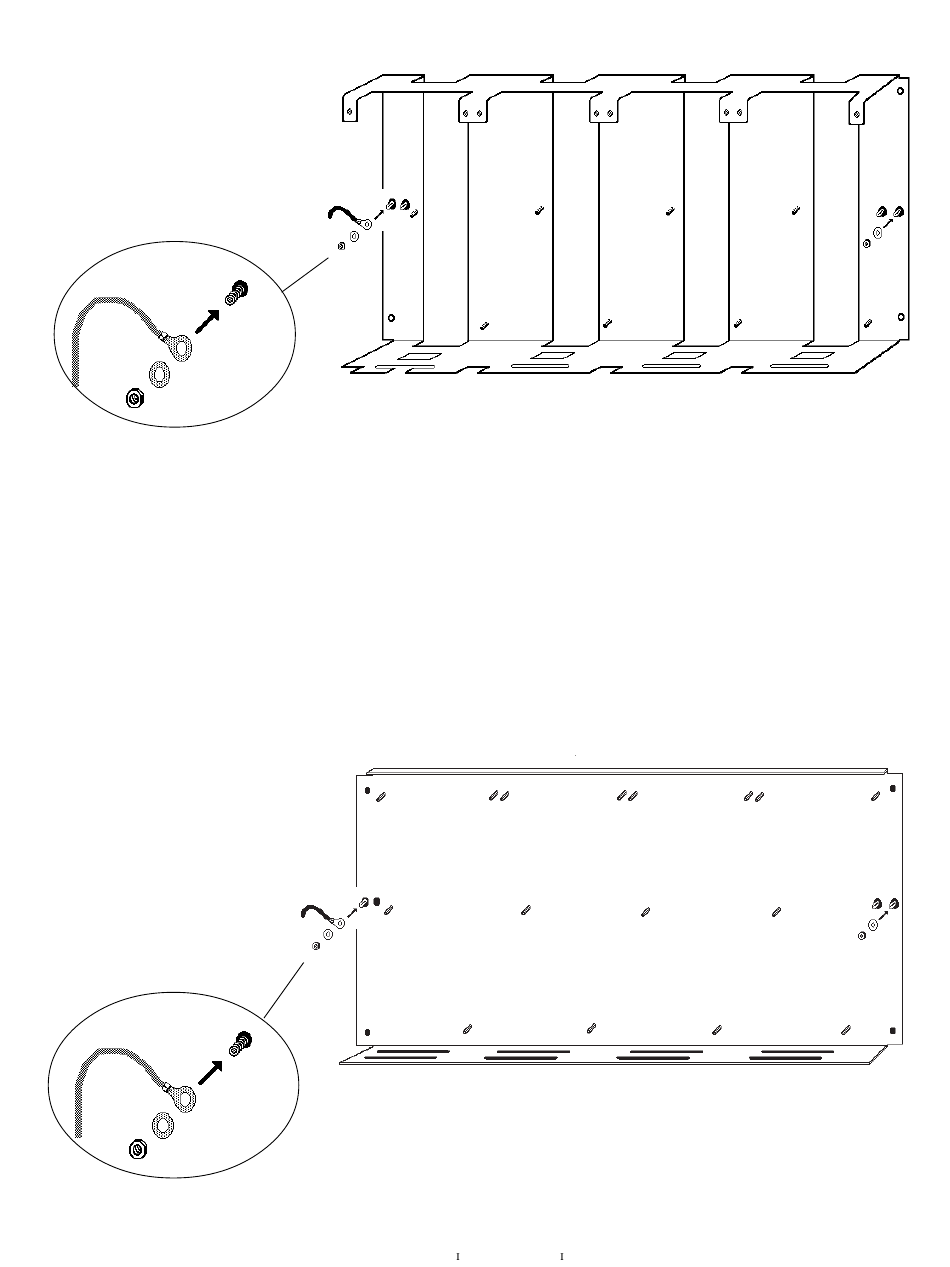

Figure 3-1: Installing the CHS-4 Chassis
S5000 15583 Rev. 6/10/96 P/N 15583:
CHS-4 Chassis
CHS-4L Chassis
