Figure 4-8:
1) Notification circuits are supervised, power limited and may be connected to energy-limited cable.
2) Use only the compatible, UL-listed Notification Appliances listed in Device Compatibility Document.
3) Wire Notification Appliances according to the manufacturer's instructions packaged with each device.
4) Maximum current per circuit is 3.0 amps. Maximum current per module is dependent on the power supply (MPS or AVPS) em-
ployed.
5) For Canada, model N-ELR End-of-Line Resistor Assembly required. (style Y only)
6) Size wiring for no more than 2-volt drop (loss) at the last device on the circuit.
7) For zone coded applications, see the UZC-256 manual.
8) For power wiring see Figure 6-7.
9) The ICM-4 is California Code programmable (microprocessor Rev. B or higher). To program for California Code, cut diode D35.
40
G H
Optional ICE-4 Indicating Circuit Expander.
Positions E, F, G, and H are active only with
this board installed. Note that CRE-4 ex-
pander may also be installed on the ICM-4.
C D
E
F
G
H

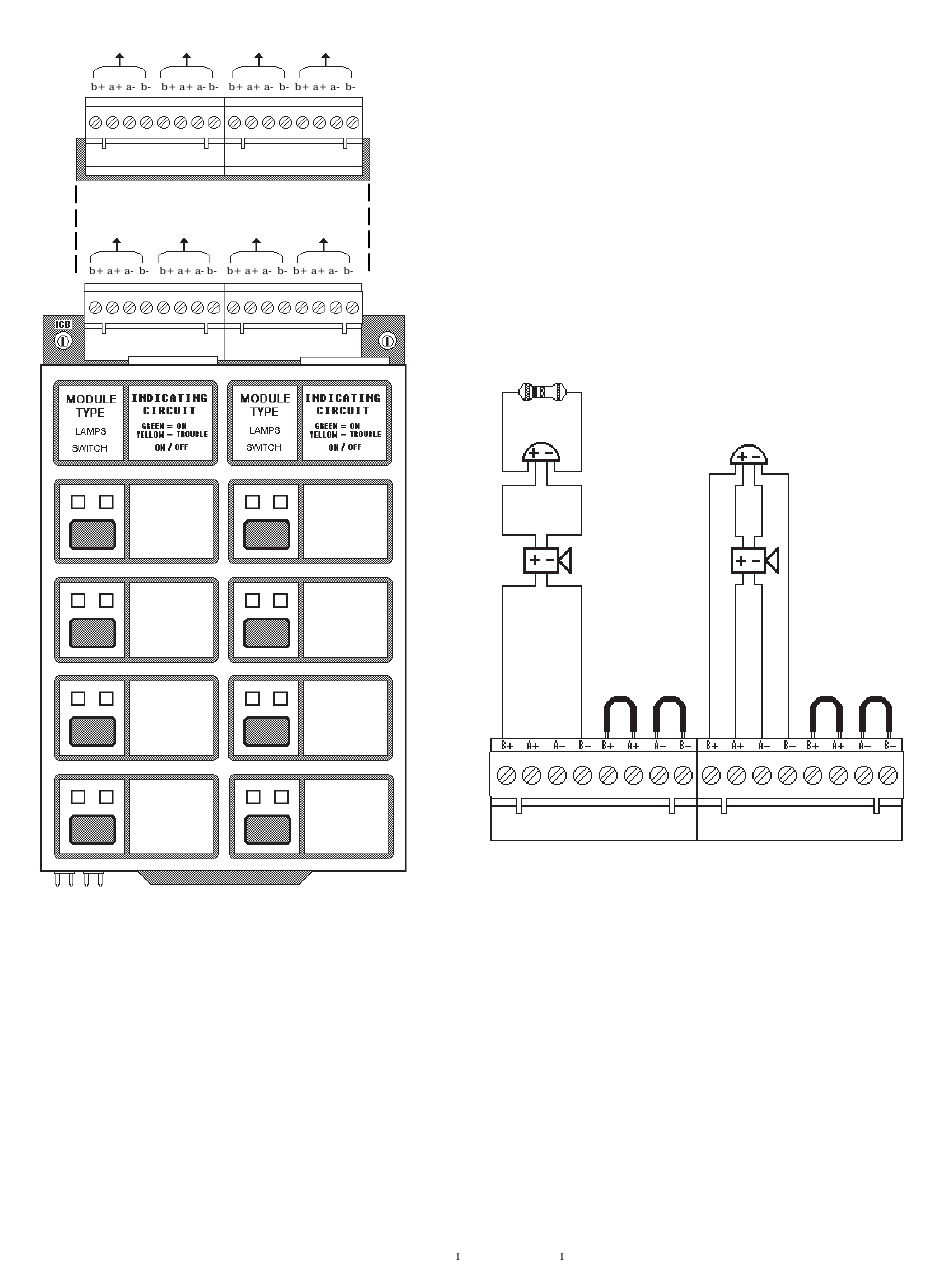

NFPA Style Y, Z Field Wiring of Indicating Circuit
Module (ICM-4) and Expander (ICE-4)
S5000 15583 Rev.
Typical
NFPA Style Y
Notification
Appliance
Circuit
4.7K, 1/2 watt ELR,
Part # 71252. 5
U.L. listed
24 VDC
Polarized Bells
U.L. listed
24 VDC
Polarized Horns
Jumper
unused
circuits
6/10/96 P/N 15583:
Typical
NFPA Style Z
Notification
Appliance
Circuit
Jumper
unused
circuits
