6.7 Tee-Tapping
One Tee-Tap will be allowed on Style Y Notification Appliance Circuits if a 10K End-of-Line Resistor (Part# 71274)
is used on each branch as shown in Figure 6-4.
Listed
4.7K ELR
10K ELR
(Part # 71252)
(Part # 71274)
Standard
Tee-Tapped Notification
Style Y
Appliance Circuit
Listed
10K ELR
(Part # 71274)

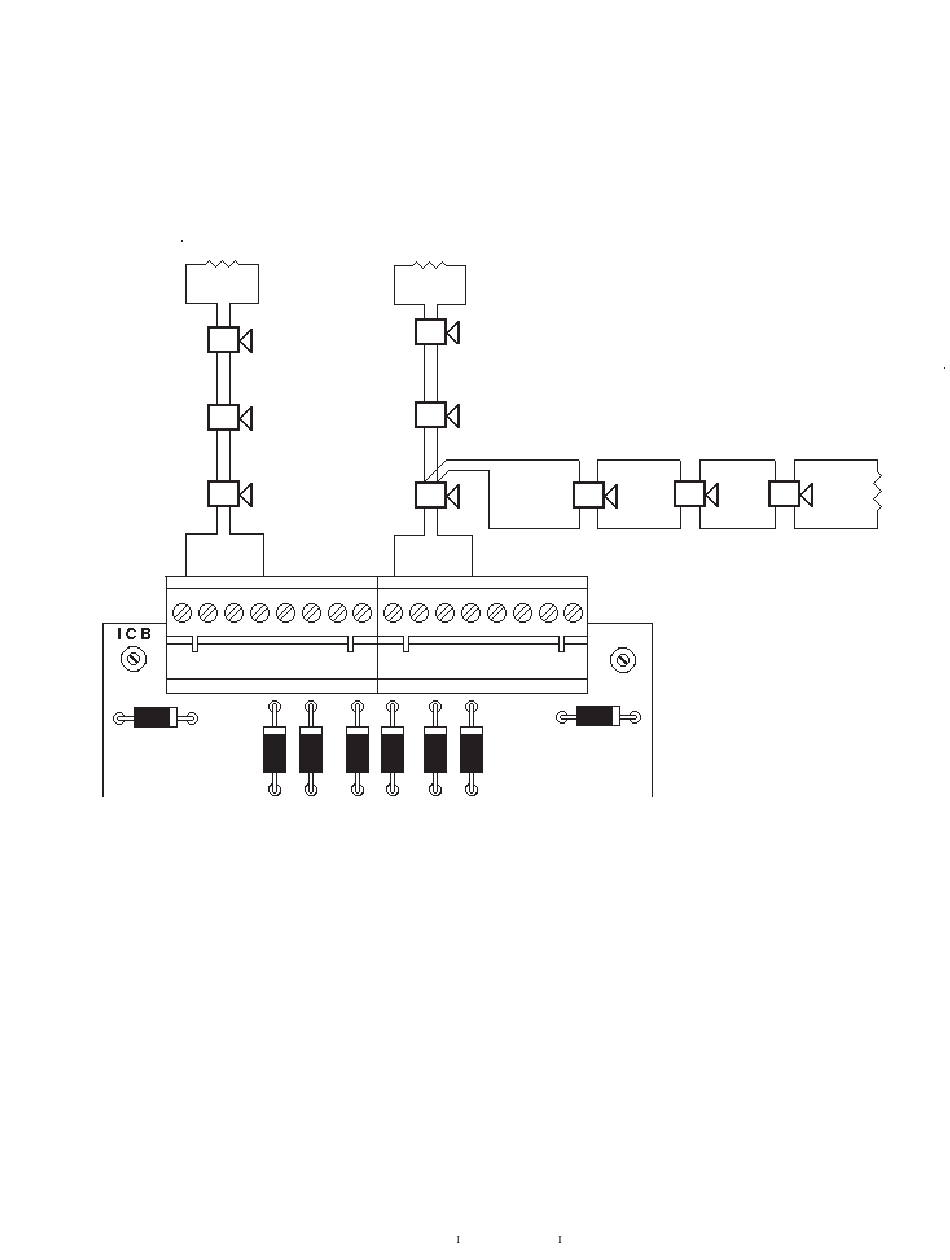

Figure 6-8: Tee-Tapping Notification Appliance Circuits
Note: Factory Mutual (FM) recommends this application not be used.
62
S5000 15583 Rev.
6/10/96 P/N 15583:
