Primary Power
Neutral
Service (Earth)
Ground
Earth Ground
Connect to chassis w i t h
a Grounding Cable As-
sembly (Cable # 71073).
Cut JP2 to disable the battery
charger when employing the NR45-
24 Remote Battery Charger.

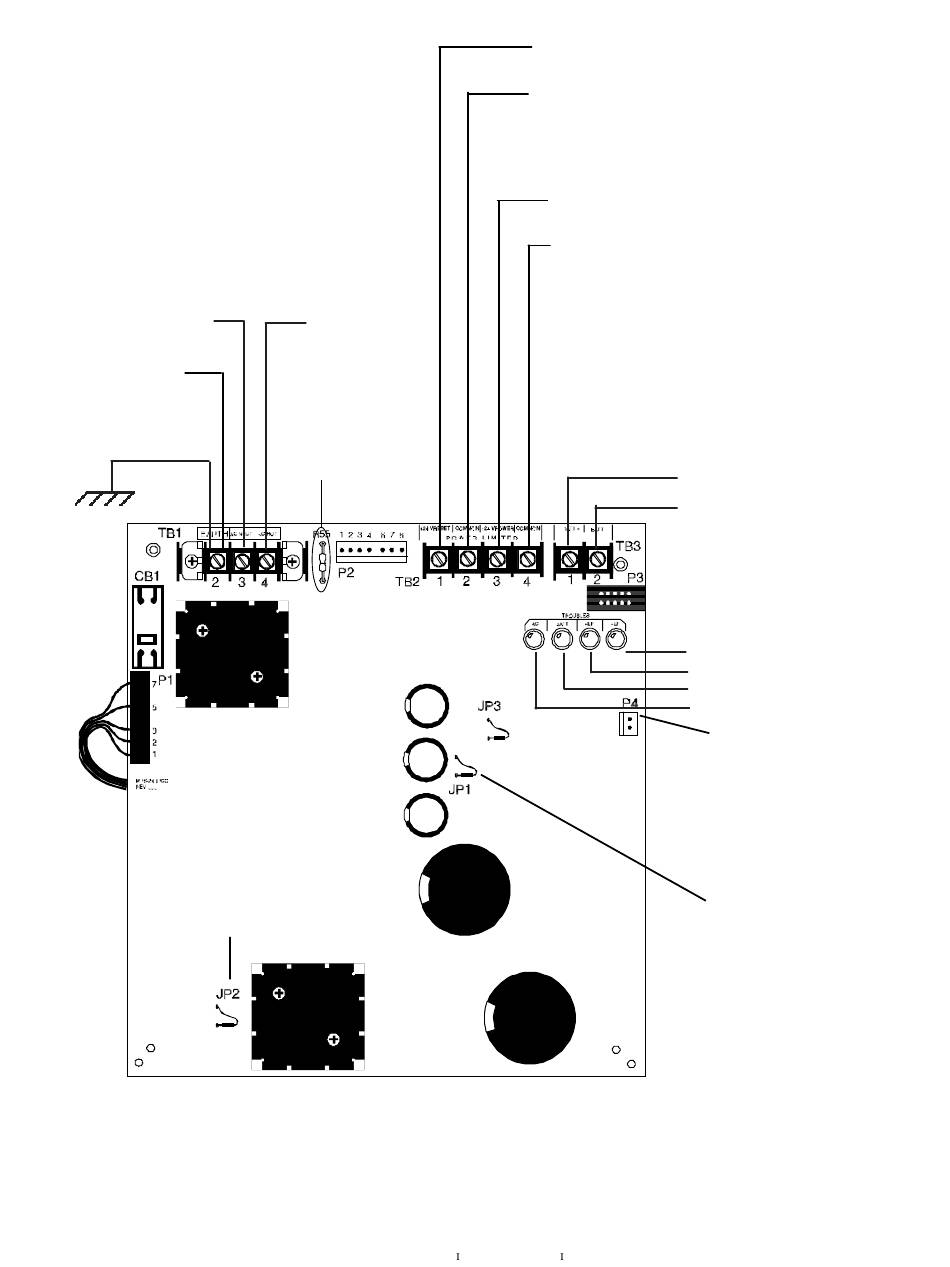

Figure 5-5: Field Wiring the MPS-24B Power Supply
48
Hot
Cut R55 to disable
Earth Fault Detection
S5000 15583 Rev.
+
Four-Wire Smoke Detector/Annunciator Power
+ 24 VDC (20.4-26.4, 200 mV ripple), 200 mA max.
Filtered, regulated and resettable*. Power-limited but
when used for four-wire detectors, must be supervised
-
by a UL listed Power Supervision Relay. Power run to
ACS Annunciators is inherently supervised.
+
Notification Appliance power
+ 24 VDC power-limited, RMS-regulated, non-
resettable, 2.0 amps (in alarm) max. Power is super-
vised by output module (such as an ICM-4). Not for
-
annunciators!
CAUTION: The +24 VDC provided on TB2 Terminal
3 is power-limited only when used with the minus
return on TB2 Terminal 4. Do not use the minus
return on TB2 Terminal 2 with the +24 VDC power on
TB2 Terminal 3.
27.6 VDC, 6.5 to 17 AH. Supervised and power-
limited. Fast charge =750mA max., trickle charge =
.
20 mA (typ)
6/10/96 P/N 15583:
Secondary Power
+
Battery
-
Battery
LED Indicators
Ground Fault (-)
Ground Fault (+)
Battery Fail
AC Power Fail
Supervisory Cable
To AVPS-24 and Trouble
(COM Fail) outputs on
UDACT if configured for
"Receive Only"
Top pin = Trouble In
Bottom pin = System
common
* Cut JP1 to make Four-
Wire Smoke Detector
Power on TB2 Terminals 1
and 2 a non-resettable
circuit.
