6.3 Central Station
The control panel can be employed as a Central Station Premise Control Unit when used in conjunction with a
compatible, UL listed Electrically Activated Transmitter installed in accordance with Section 6.5 or when used in
conjunction with a compatible, UL listed Digital Alarm Communicator, such as the 911A, installed in accordance
with Section 6.6.
6.4 Proprietary Protective Signaling
The control panel can be employed as a Central Station Premise Control Unit when used in conjunction with a
compatible, UL listed Electrically Activated Transmitter installed in accordance with the instructions given in
Section 6.5.
6.5 Transmitters
Electronically actuated transmitters can be used with the control panel to form Central Station and Proprietary
Protective Signaling Systems provided that the following conditions are satisfied:
1) The control unit is used with the Notifier NIB-96 transmitter.
2) The receiving unit is the Notifier AM2020/AFP1010.
3) The transmitters are installed according to their instructions. (see NIB-96 manual)
4) The control, transmitters and receivers must have a standby power source that can supply 24 hours
of operating power.
The NIB-96 is suitable for Central Station, and Proprietary Protective Signaling service when installed according
to Figure 6-2 and the NIB-96 manual.

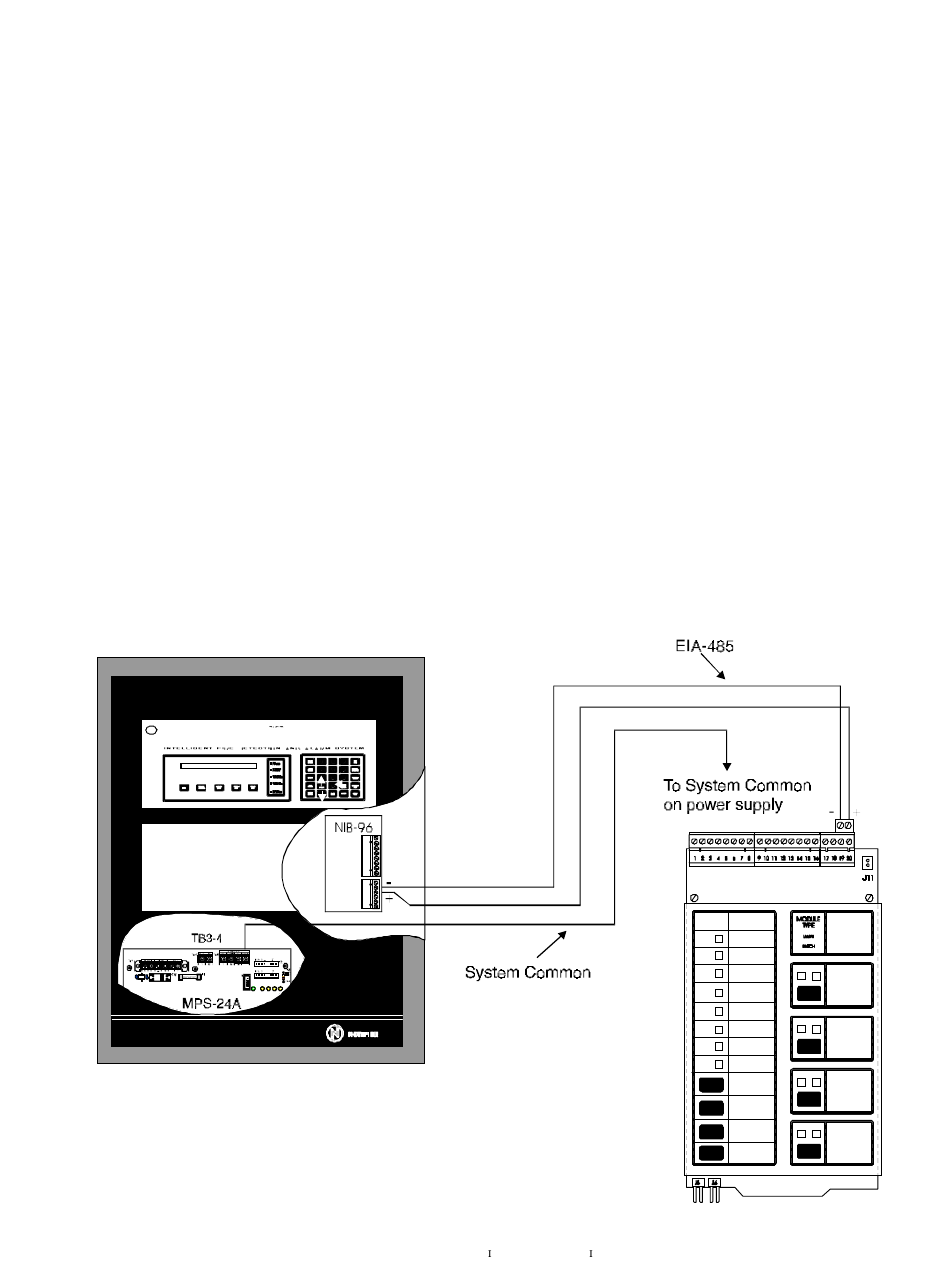

Figure 6-2: NFPA 72-1993 Proprietary Protective Signaling System
AM2020/AFP1010
S5000 15583 Rev. 6/10/96 P/N 15583:
CPU
