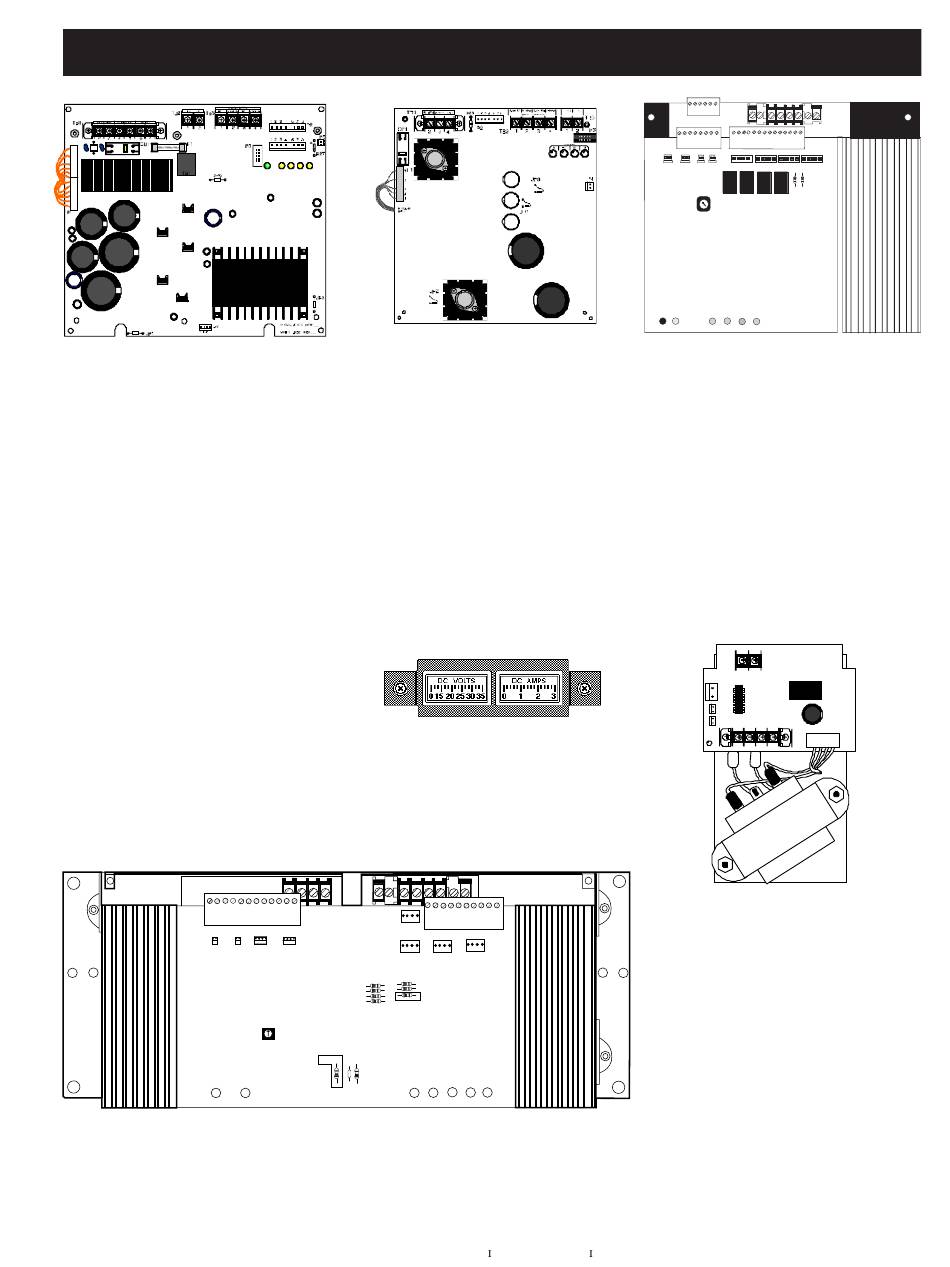

MPS-24A
The MPS-24A supplies the regu-
lated power needed to run system
modules. It also supplies up to 3
amps of regulated Notification Ap-
pliance power, permitting the use
of a variety of standard UL listed
24 VDC Notification Appliances.
Up to one amp of resettable power
is available for four wire smoke
detectors. The MPS-24A contains
an integral battery charger.
12 11 10 9 8 7 6 5 4 3 2 1
The AA-120
The AA-120 Audio Amplifier provides 120 watts of audio power that is
compatible with 25V
RMS
Voice Control Module.
Power Supplies and Amplifiers
MPS-24B
The MPS-24B supplies the regu-
lated power needed to run System
5000 modules. It also supplies up to
2.0 amps of regulated Notification
Appliance power, permitting the use
of a variety of standard UL listed 24
VDC Notification Appliances (see
Appendix B). Up to 200mA of reset-
table power is available for four wire
smoke detectors. The MPS-24B
contains an integral battery charger.
MPM-2
The Main Power Meter-2 provides
a voltmeter and ammeter for the
Main Power Supply (MPS-24A
only).
10 9 8 7 6 5 4 3 2 1
R100
R107
speakers. Speaker zone selection is performed by
S5000 15583 Rev.
AA-30
The AA-30 Audio Amplifier pro-
vides up to 30-watts of audio power
for driving speaker circuits. The
AA-30 amplifies the audio signal
fed in from an Audio Message
Generator (AMG-1) and mounts to
one-half of a CHS-4L Chassis.
For more information on the AA-
30, refer to the Voice Alarm Sys-
tem 5000 Manual.
AVPS-24
The AVPS-24 Audio/Visual Power
Supply provides up to 3 amps of
additional Special Purpose Power
(unregulated, unfiltered) for output
modules. The AVPS-24 mounts to
one-fourth of a CHS-4 Chassis. In
space-critical applications, the
AVPS-24 can be mounted under-
neath system modules on the CHS-
4 Chassis except for the CPU. See
Appendix A for a list of compatible,
UL-listed Notification Appliances.
6/10/96 P/N 15583:
6 5 4 3 2 1
8 7 6 5 4 3 2 1 14 13 12 11 10 9 8 7 6 5 4 3 2 1
R9 R8
